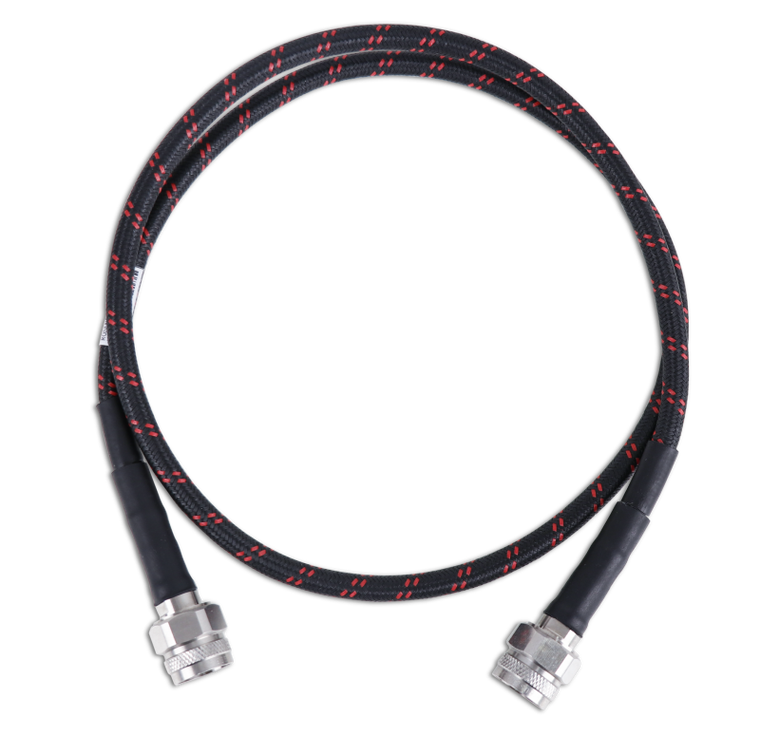

Siglent N-N-18L 100 cm 18 GHz N(M)-N(M) cable
€219.00
Siglent N-N-18L is a N(M)-N(M), 100 cm,18 GHz cable
RoHS compliant
| Parameters : | |
|---|---|
| Connector 1 | N (Male) |
| Connector 2 | N (Male) |
| Length | 1000 + 10 (mm) |
| Insertion Loss | (DC – 18 GHz, dB): 2.3 |
| Impedance | 50 Ω |
| Frequency Range | DC – 18 GHz |
| VSWR | < 1.35 to 18 GHz |
| Phase stability vs. Flexure | < 10° @ 18 GHz (wrapped around a 50 mm diameter mandrel) |
| Amplitude Stability vs. Flexure | < 0.1 dB @ 18 GHz (wrapped around a 50 mm diameter mandrel) |
| Minimum Bend Radius | 50.8 mm |
| Cable Diameter (with armor) | 6.6 mm |
| Temperature range (operation) | -40°C to 150°C |
