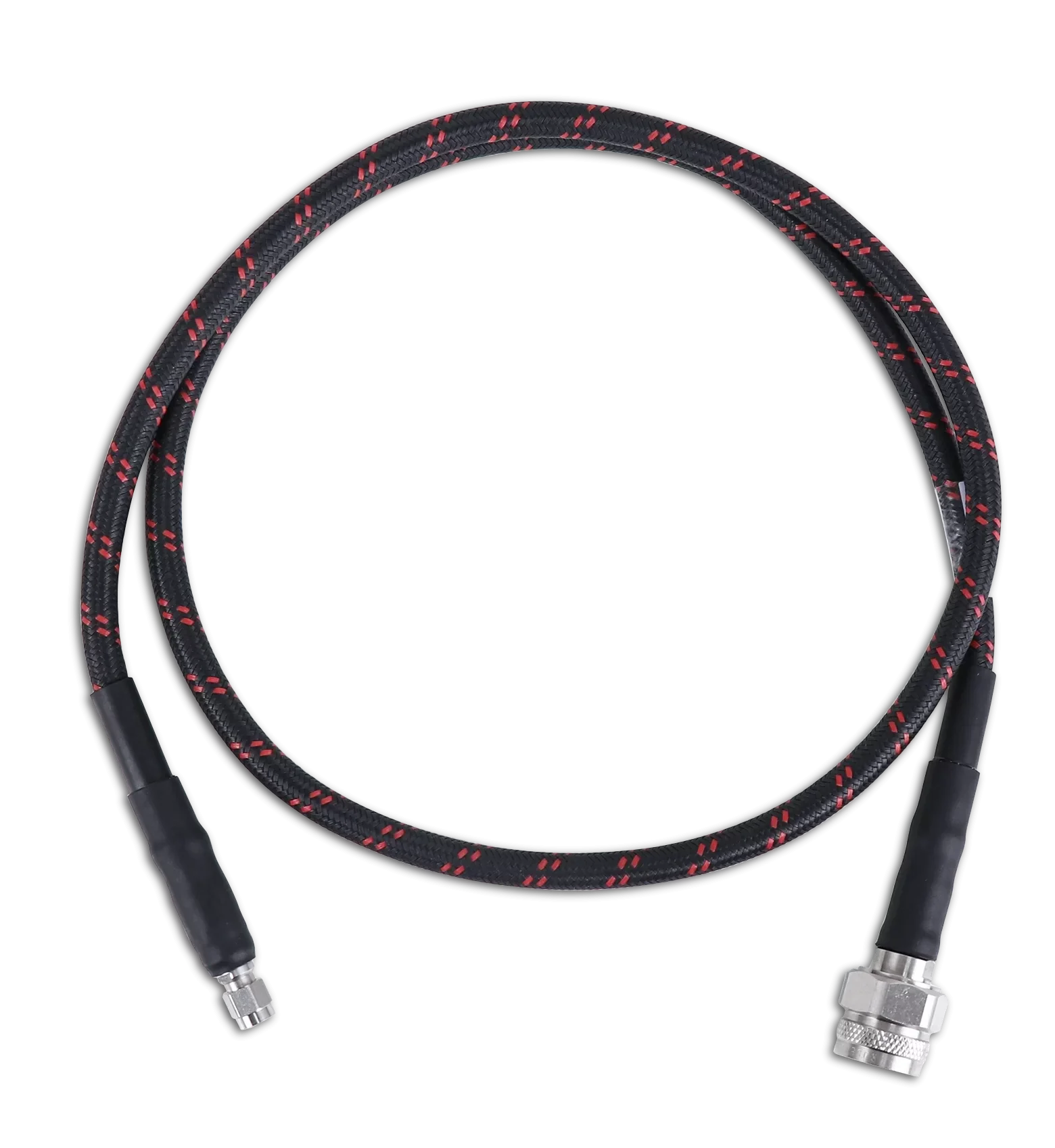

Siglent N-SMA-18L 100 cm 18 GHz N(M)-SMA(M) cable

€219.00

Siglent N-SMA-18L is a N(M)-SMA(M), 100 cm,18 GHz cable

RoHS compliant

Parameters :
Connector 1 N (Male)
Connector 2 SMA (Male)
Length 1000 + 10 (mm)
Insertion Loss (DC – 18 GHz, dB): 2.3
Impedance 50 Ω
Frequency Range DC – 18 GHz
VSWR < 1.35 to 18 GHz
Phase stability vs. Flexure < 10° @ 18 GHz (wrapped around a 50 mm diameter mandrel)
Amplitude Stability vs. Flexure < 0.1 dB @ 18 GHz (wrapped around a 50 mm diameter mandrel)
Minimum Bend Radius 50.8 mm
Cable Diameter (with armor) 6.6 mm
Temperature range (operation) -40°C to 150°C
N-N 18L N-SMA 18L Datasheet
PDF – 394,1 KB 183 downloads
