Siglent SMA(F)-SMA(M)-26L 100cm, 26 GHz SMA(F)-SMA(M) cable

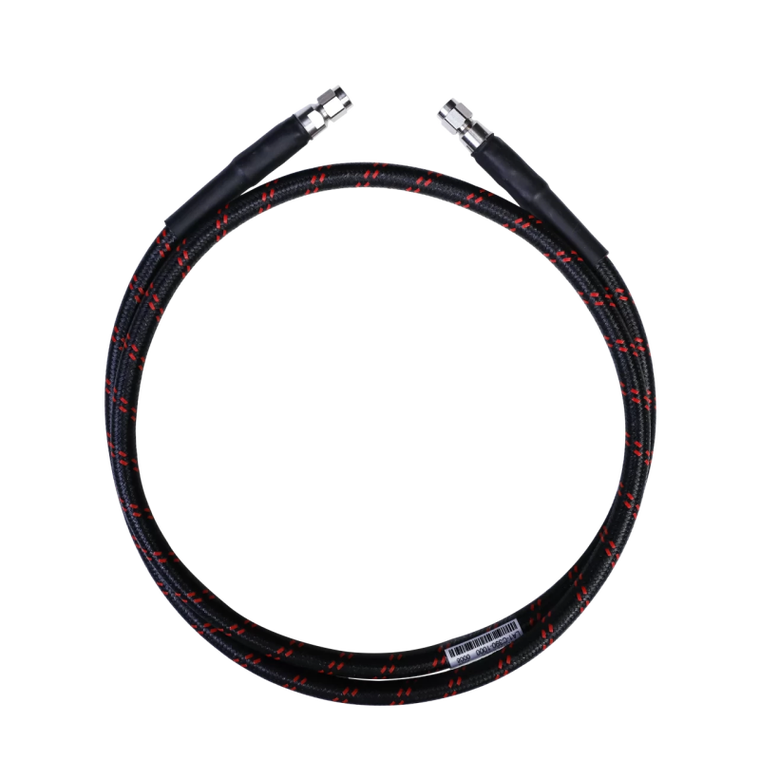

The SMAF-SMA-26L is a 1000 mm 50 Ω precision test cable with an SMA female connector on one end and SMA male on the other, specified to 26 GHz.
SMA female to SMA male, specified to 26 GHz
The SMAF-SMA-26L is a 1000 mm 50 Ω precision test cable with an SMA female connector on one end and SMA male on the other, specified to 26 GHz.
The same 26 GHz precision assembly as the SMA-SMA-26L, but with one end reversed. That single difference decides whether a setup connects or sits in a drawer waiting for an adaptor — and at 26 GHz an improvised adaptor is a genuine measurement problem, not a minor inconvenience. It is also the cable that lets you extend another SMA male lead.
At a glance
- Connector 1SMA female
- Connector 2SMA male
- FrequencyDC – 26 GHz
- Impedance50 Ω
- Length1 m
Order code SMAF-SMA-26L · supplied by SIGLENT
What it is for
When both ends of your path are male
Two male connectors cannot mate. This cable is the answer that does not involve stacking an adaptor into a 26 GHz path.
Extending an existing lead
The female end accepts another SMA male cable, so you can lengthen a path without changing interface.
Precision to 26 GHz
The same class of assembly as the SMA-SMA-26L, in the other gender combination.
Specifications
| Parameter | Value |
|---|---|
| Connector 1 | SMA female |
| Connector 2 | SMA male |
| Frequency range | DC – 26 GHz |
| Impedance | 50 Ω |
| Length | 1 m |
Siglent publishes connector, bandwidth and length for this part. Detailed figures such as VSWR and insertion loss are not published for it — if your application depends on them, ask us and we will request them from the factory.
Instruments it connects to
The SMA female end mates with the RF port on these Siglent instruments — each port taken from that instrument’s own datasheet.
- SSA3000X
- SSA3000X Plus
- SSA3000X-R
- SVA1000X
- SSG3000X
- SSG5000X
- SNA5002A / 5012A / 5004A / 5014A
Not sure which port your instrument has? The RF cables and adaptors page carries the full table.
Other cables in the range
Is this the right cable for your setup?
Tell us the instrument and the device you are connecting, and we will confirm the interface and the bandwidth you need before you order. We are the official Siglent distributor for the European Union, and we also build assemblies to length and connector on request.
