Siglent SDS7804A H13 4 channel 8GHz 12-bit 20 GSa/s Oscilloscope

€62,200.00

The Siglent SDS7804A H13 is a 4-channel, 8 GHz digital storage oscilloscope with 12-bit resolution, up to 20 GSa/s sample rate, and a record length of 2 Gpts. It offers outstanding precision and signal fidelity, making it ideal for high-speed digital design, communications, and power electronics testing.

With SPO technology, a waveform capture rate of 1,000,000 wfms/s, advanced triggering including zone trigger, and extensive serial bus decoding, the SDS7804A H13 delivers powerful analysis tools such as jitter/eye analysis, Bode plots, compliance testing, and optional real-time spectrum analysis. Its 15.6" HD capacitive touchscreen, intuitive interface, and wide connectivity options ensure efficient operation in demanding applications.

The Siglent SDS7804A H13 is engineered for engineers and researchers who need to capture and analyze today’s fastest and most complex signals. Its combination of wide 8 GHz bandwidth, high sampling rate, and deep memory allows detailed visibility into high-speed serial buses, RF signals, and transient phenomena that are otherwise difficult to observe. The 12-bit vertical resolution ensures subtle waveform details are revealed, making it equally suitable for precision analog and mixed-signal designs.

In real-world use, the SDS7804A H13 supports a wide variety of applications. In high-speed digital design, it enables validation of standards such as USB, Ethernet, PCIe, and MIPI through protocol decoding and compliance test options. For communications and RF research, its optional real-time spectrum analysis mode helps track frequency hopping, modulation schemes, and interference sources. In power electronics, designers can benefit from its power analysis suite to measure switching losses, efficiency, and magnetic characteristics. The built-in waveform generator and Bode plot function also make it a powerful tool for control loop analysis in power supply design.

Its advanced trigger capabilities—such as runt, setup/hold, and zone trigger—make it easy to isolate rare events, while the fast waveform update rate ensures no anomaly goes unnoticed. Combined with eye/jitter analysis, the oscilloscope becomes an effective solution for signal integrity testing, clock verification, and data recovery in high-speed serial links. Whether used in a research lab, production validation, or advanced troubleshooting, the SDS7804A H13 delivers the performance and flexibility needed to accelerate development and ensure design reliability.

12bit High Resolution

12 bit resolution shows you more details and less noise on the waveform.

Applications

High-Speed Digital Design

  • Validate and debug high-speed standards such as USB, PCIe, MIPI, and Ethernet.

  • Use serial decoding and compliance test options for protocol-level analysis.

  • Perform eye/jitter measurements to ensure timing integrity in digital systems.

Communications & RF Research

  • Investigate modern wireless signals including 4G/5G, Wi-Fi, and radar using the optional spectrum analyzer mode.

  • Capture transient events and frequency-hopping signals with SPO technology and 1,000,000 wfms/s capture rate.

  • Analyze modulation quality and interference sources with SigVSA software support.

Power Electronics & Power Supply Design

  • Perform power loss, efficiency, and switching device measurements with the power analysis suite.

  • Use the built-in generator and Bode plot function for control loop stability testing.

  • Evaluate magnetic components, harmonics, and transient behavior in converters and inverters.

Signal Integrity & Debugging

  • Detect rare anomalies with advanced triggers such as runt, setup/hold, and zone triggering.

  • Use deep memory and fast navigation to explore long data streams.

  • Apply FFT and advanced math functions for noise analysis, filter response, and harmonic detection.

Key Benefits

  • High Performance: 8 GHz bandwidth, 20 GSa/s sample rate, 12-bit resolution, and up to 2 Gpts memory depth provide unmatched signal detail.

  • Advanced Analysis: Supports jitter/eye analysis, compliance testing, Bode plots, power analysis, and optional real-time spectrum analysis.

  • Efficient Operation: Large 15.6" HD capacitive touchscreen with intuitive interface, multi-touch gestures, and remote web control.

  • Flexible Connectivity: USB 3.0, LAN, HDMI, DisplayPort, and auxiliary outputs for seamless integration into lab and production environments.

  • Mixed-Signal Ready: Optional 16 digital channels and a built-in 50 MHz waveform generator for MSO and stimulus-response testing.

Who Is It For?

The SDS7804A H13 is ideal for:

  • R&D labs working on high-speed digital and RF systems.

  • Telecommunications and wireless engineers analyzing next-generation communication standards.

  • Power electronics designers validating efficiency and control in switching supplies, inverters, and motor drives.

  • Universities and research institutes requiring a versatile instrument for mixed-signal, RF, and power research.

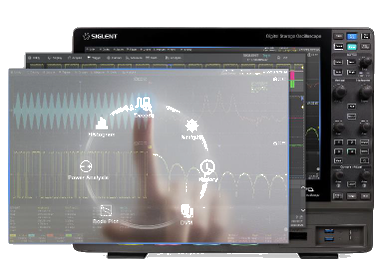

Excellent User Interface and User Experience

The SDS7604A H12 features a 15.6” HD capacitive touchscreen with multi-touch support, delivering an intuitive and efficient user experience.

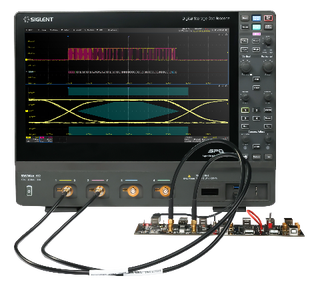

Compliance Test (Optional)

USB 2.0, 100Base TX, 1000Base T, 100Base T1, 1000Base T1 protocol conformance testing are available. When the user sets up the environment according to the prompts, by using the related test fixture, the oscilloscope and related instruments can be automatically set up and related measurement, calculation, decoding and other functions will be used for testing, helping the user to complete each test project quickly and efficiently, and reports are generated automatically.

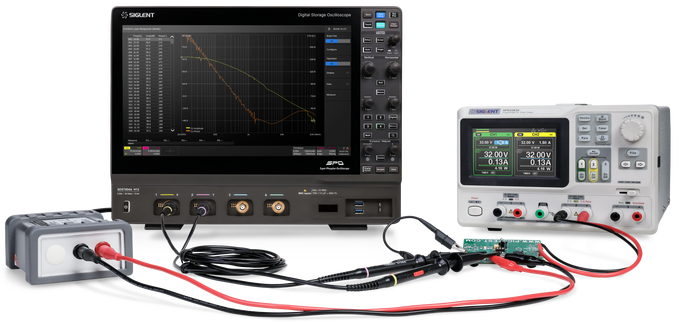

Bode Plot

The oscilloscope can control the Built-in waveform generator, SIGLENT isolated USB AWG module or a stand-alone SIGLENT SDG generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications

Siglent SDS7604A H12 – Key Features

  • 4 analog channels with up to 6 GHz bandwidth and 20 GSa/s sampling rate

  • 12-bit ADC with low background noise (220 μVrms @ 4 GHz)

  • SPO technology with up to 1,000,000 wfms/s capture rate, 256-level intensity grading, and color temperature display

  • Memory depth: 500 Mpts/ch standard, expandable to 1 Gpts/ch

  • Advanced triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/Hold, Delay, Video (HDTV), and Zone Trigger

  • Serial protocol support: I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, and USB 2.0

  • Segmented acquisition (Sequence mode) with up to 124,000 segments and minimal dead time

  • History function with up to 124,000 recorded frames

  • 50+ automatic measurements, with statistics, histograms, trends, tracks, gating, and support on Math/History/Memory traces

  • 4 math traces with 32 Mpts FFT, filters, integration, differential, and formula editor support

  • Comprehensive analysis tools: Search, Navigate, SignalScan, DVM, Counter, Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis, Compliance Testing

  • High-speed hardware functions: averaging, high-resolution (Hi-Res), and Mask Test with built-in Mask Editor

  • Mixed-signal capability: 16 digital channels (optional)

  • Integrated 50 MHz waveform generator

  • Large 15.6” HD capacitive touchscreen (1920 × 1080) with multi-touch support

  • Extensive connectivity: 4× USB 3.1, 2× USB 3.0, USB 2.0 Device, dual 1 Gbit LAN, DVI-D, DP 1.2, HDMI 1.4, audio I/O, external trigger, Aux Out, 10 MHz In/Out

  • Remote control via built-in web server, SCPI command support, and external mouse/keyboard compatibility

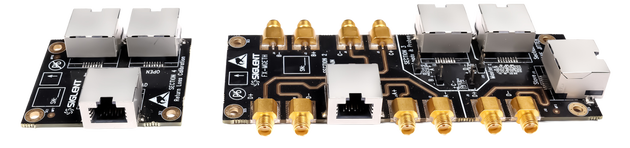

FX-MGETH 2.5G/5G/10G Ethernet test fixture ( option )

The FX-MGETH is a compliance test fixture for 2.5G/5G/10G Ethernet, enabling accurate high-speed interface validation and debugging.

Model SDS7804A H13
Analog channels 4 + EXT
Bandwidth 8 GHz
Sample rate ( Max.) 20 GSa/s (dual-channel) 10 GSa/s (3 or 4 channels)
Vertical Resolution 12-bit Up to 16-bit in ERES mode
Memory depth ( Max.) Standard: 500 Mpts/ch Optional: 1 Gpts/ch in dual-channel mode
Waveform capture rate (Max.) 1,000,000 wfm/s
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)
Measurement 50+ parameters,statistics, histogram, trend, and track supported
Math 4 traces 32 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √√, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor
Data analysis Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis , SignalScan, Compliance Test (USB 2.0, 100Base T X , 1000Base T, 100Base T1, 1000Base T1)
Digital channel (optioonal ) 16-channel; maximum sample rate up to 1 GSa/s; record length up to 50 Mpts
Waveform generator ( optional ) Builit-in, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
Processor System Intel Core i3-8100 or better,32GB memory,250GB storage,Linux operating system
I/O I/O: 4x USB Host 3.1 Gen 1,2x USB 3.0 Host,USB 2.0 Device (USBTMC),2x 1000M LAN (VXI-11+SCPI, Telnet (5024)+SCPI,Socket (5025)+SCPI,LXI,WebServer) Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60Hz Audio: Mic input, Audio Output Others: External Trigger In, Aux Out (TRIG OUT,PASS/FAIL),10 MHz In,10 MHz Out
Probe (Standard) 500 MHz, 1 probe supplied for each channel
Display 15.6” HD TFT-LCD with capacitive touch screen (1920*1080)

Accessories Included :

  • USB cable (1 pc) – For data transfer and remote control.

  • Quick start guide (1 pc) – Provides setup and basic operation instructions.

  • Passive probes SP3150A (1 per channel, 4 pcs) – 500 MHz bandwidth, 10X attenuation, supplied for each analog input channel.

  • Certificate of calibration (1 pc) – Factory calibration certificate ensuring measurement accuracy.

  • Wireless mouse (1 pc) – For easy navigation of menus and controls.

  • Power cord (1 pc) – Country-specific AC power cord.

  • Protective cover (1 pc) – Protects the display and controls during transport.

Optional Accessoires:
