Siglent SDS7604AP 4CH, 6 GHz, 12-Bit Oscilloscope with 20 GSa/s Sampling on All Channels

€52,620.00

Quantity

The Siglent SDS7604AP is a 4-channel, 6 GHz digital storage oscilloscope with 12-bit resolution, a 20 GSa/s sampling rate on all channels, and a record length of up to 2 Gpts. It delivers exceptional precision and signal fidelity, making it the perfect choice for high-speed digital validation, advanced communications, and power electronics testing.

With SPO technology, a capture rate of up to 1,000,000 wfms/s, advanced triggering including zone trigger, and comprehensive serial bus decoding, the SDS7604AP provides powerful analysis functions such as jitter/eye analysis, Bode plots, compliance testing, and optional real-time spectrum analysis. A large 15.6" HD capacitive touchscreen, intuitive workflow, and extensive connectivity ensure maximum efficiency in demanding applications.

The Siglent SDS7604AP is built for engineers and researchers who need to measure and analyze complex, high-speed signals with confidence. Offering 6 GHz bandwidth across all four channels, 20 GSa/s sampling, and deep memory, it delivers clear visibility into high-speed serial buses, RF signals, and transient events that are otherwise hard to capture. With its 12-bit vertical resolution, it reveals subtle waveform details, making it equally effective for precision analog and mixed-signal designs.

In practical applications, the SDS7604AP covers a broad range of test scenarios. In high-speed digital design, it enables verification of standards such as USB, Ethernet, PCIe, and MIPI through powerful serial decoding and compliance testing options. For RF and communications research, its optional real-time spectrum analysis mode allows engineers to monitor frequency hopping, modulation schemes, and interference sources with ease. In power electronics, the integrated analysis suite supports detailed measurements of switching losses, efficiency, and magnetic performance. The built-in waveform generator and Bode plot function further enhance its utility for control loop stability testing in power supply development.

Advanced trigger features—such as runt, setup/hold, and zone trigger—simplify the capture of elusive events, while the oscilloscope’s high waveform update rate ensures anomalies are not missed. Combined with eye/jitter analysis, it provides a powerful solution for signal integrity validation, clock analysis, and data recovery in high-speed systems. Whether deployed in research, product validation, or troubleshooting, the SDS7604AP delivers the accuracy, speed, and flexibility needed to accelerate innovation and ensure reliable designs.

12bit High Resolution

12 bit resolution shows you more details and less noise on the waveform.

Applications – Siglent SDS7604AP

High-Speed Digital Design – Validate and debug interfaces like USB, PCIe, Ethernet, and MIPI using compliance testing and serial decoding. With 20 GSa/s sampling available on all four channels, engineers can analyze multiple high-speed signals simultaneously without sacrificing resolution or accuracy.
RF & Wireless Communications – Capture complex modulation schemes, interference, and frequency-hopping signals using optional real-time spectrum analysis, while maintaining full visibility across multiple RF paths at once.
Power Electronics – Measure efficiency, switching losses, and device behavior with precision. The four high-speed channels make it possible to correlate voltage and current waveforms in parallel, while the built-in generator and Bode plot function enable advanced loop stability testing.
Signal Integrity & Clock Analysis – Ensure robust system performance with jitter/eye analysis, multi-channel clock verification, and precise timing correlation—critical when working with today’s multi-lane, high-speed serial buses.
Research & Education – Ideal for labs and universities, offering deep memory, four fully capable channels, and flexible analysis tools for complex mixed-signal and RF projects.
Production & Validation – High capture rates, segmented memory, and advanced triggers streamline compliance testing and troubleshooting, while four high-speed channels improve efficiency by allowing complete system-level analysis in one pass.

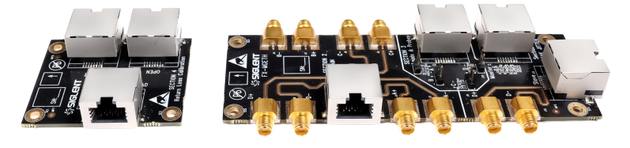

FX-MGETH 2.5G/5G/10G Ethernet test fixture ( option )

The FX-MGETH is a compliance test fixture for 2.5G/5G/10G Ethernet, enabling accurate high-speed interface validation and debugging.

Key Benefits – Siglent SDS7604AP

High Performance: 6 GHz bandwidth on all four channels, 20 GSa/s sample rate, 12-bit resolution, and up to 2 Gpts memory depth for precise signal capture.
Advanced Analysis: Powerful tools including jitter/eye analysis, compliance testing, Bode plots, power analysis, and optional real-time spectrum analysis.
Efficient Operation: Large 15.6″ HD capacitive touchscreen with intuitive UI, multi-touch gesture support, and remote web control for streamlined workflows.
Flexible Connectivity: Multiple interfaces including USB 3.0, dual LAN, HDMI, DisplayPort, and auxiliary outputs for easy integration into lab and production setups.
Mixed-Signal Ready: Expandable with 16 digital channels and a built-in 50 MHz waveform generator for versatile MSO and stimulus-response testing.

Who Is It For?

The Siglent SDS7604AP is designed for professionals and organizations working with advanced, high-speed signals:

Digital Design Engineers – validating and debugging high-speed serial buses such as USB, Ethernet, PCIe, and MIPI.
RF & Communications Specialists – analyzing modulation schemes, interference, and frequency-hopping signals with optional spectrum analysis.
Power Electronics Designers – measuring efficiency, switching losses, and control loop stability in converters, inverters, and power supplies.
Signal Integrity Experts – performing jitter, eye diagram, and clock analysis for reliable high-speed data systems.
Research Labs & Universities – requiring a versatile mixed-signal oscilloscope for education, prototyping, and advanced research.
Validation & Production Teams – using its speed, memory, and automation capabilities for compliance testing and troubleshooting.

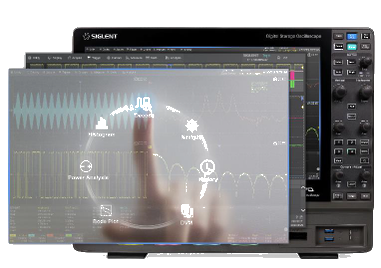

Excellent User Interface and User Experience

The SDS7604AThe Siglent SDS7604AP is designed with usability in mind, featuring a large 15.6″ HD capacitive touchscreen that supports multi-touch gestures for fast navigation and waveform zooming. Its intuitive user interface makes complex measurements easier to set up, while external mouse and keyboard support provide additional flexibility. With a built-in web server, the oscilloscope can also be operated remotely through a standard browser, ensuring efficient workflows in both lab and production environments. H12 features a 15.6” HD capacitive touchscreen with multi-touch support, delivering an intuitive and efficient user experience.

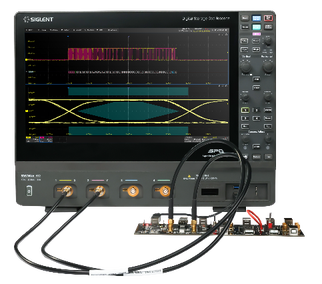

Compliance Test (Optional）

USB 2.0, 100Base TX, 1000Base T, 100Base T1, 1000Base T1 protocol conformance testing are available. When the user sets up the environment according to the prompts, by using the related test fixture, the oscilloscope and related instruments can be automatically set up and related measurement, calculation, decoding and other functions will be used for testing, helping the user to complete each test project quickly and efficiently, and reports are generated automatically.

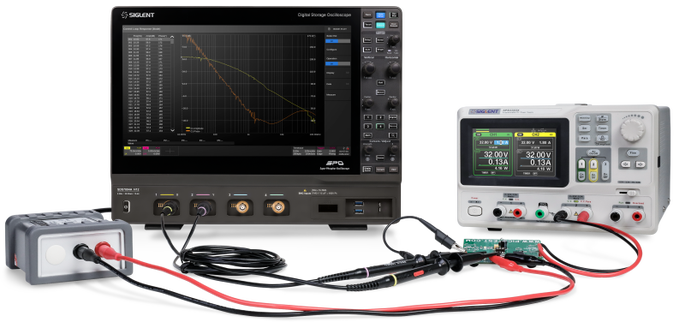

Bode Plot

The oscilloscope can control the Built-in waveform generator, SIGLENT isolated USB AWG module or a stand-alone SIGLENT SDG generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications

Siglent SDS7604AP – Key Features

4 analog channels, each with up to 6 GHz bandwidth
20 GSa/s sample rate on all channels simultaneously
12-bit ADC resolution, up to 16-bit in ERES mode
Deep memory: 1 Gpts/ch standard, expandable to 2 Gpts (1 channel)
Waveform capture rate up to 1,000,000 wfms/s with SPO technology
Advanced triggering: Edge, Slope, Pulse, Window, Runt, Setup/Hold, Delay, Video, Zone trigger and more
Serial bus decoding for I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, and USB 2.0
Analysis tools: Eye/jitter analysis, Bode plot, power analysis, mask test, compliance testing, FFT (32 Mpts)
16 digital channels (optional) for MSO functionality
Built-in 50 MHz arbitrary waveform generator (optional)
Large 15.6″ HD capacitive touchscreen (1920×1080) with multi-touch support
Comprehensive connectivity: USB 3.0, USB 3.1, dual LAN, HDMI, DisplayPort, DVI-D, Audio, 10 MHz In/Out
Remote operation via built-in web server, SCPI command support, external mouse/keyboard

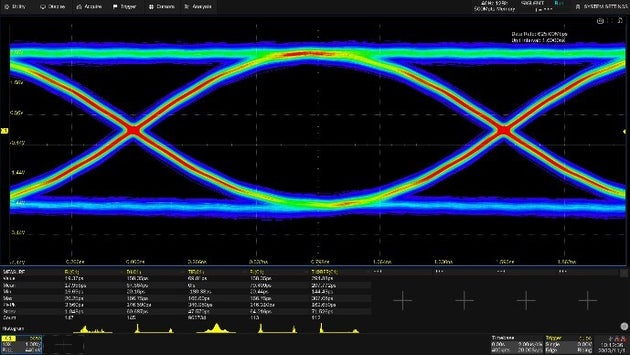

Eye/Jitter Analysis

Model	SDS7806AP
Analog channels	4 + EXT
Bandwidth	6 GHz
Sample rate ( Max.)	20 GSa/s on all 4 channels
Vertical Resolution	12-bit Up to 16-bit in ERES mode
Memory depth ( Max.)	Standard: 500 Mpts/ch Optional: 1 Gpts/ch in dual-channel mode
Waveform capture rate (Max.)	1,000,000 wfm/s
Trigger type	Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode	Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)
Measurement	50+ parameters，statistics, histogram, trend, and track supported
Math	4 traces 32 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √√, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor
Data analysis	Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis , SignalScan, Compliance Test (USB 2.0, 100Base T X , 1000Base T, 100Base T1, 1000Base T1)
Digital channel (optioonal )	16-channel; maximum sample rate up to 1 GSa/s; record length up to 50 Mpts
Waveform generator ( optional )	Builit-in, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
Processor System	Intel Core i3-8100 or better，32GB memory，250GB storage，Linux operating system
I/O	I/O: 4x USB Host 3.1 Gen 1，2x USB 3.0 Host，USB 2.0 Device (USBTMC)，2x 1000M LAN (VXI-11+SCPI， Telnet (5024)+SCPI，Socket (5025)+SCPI，LXI，WebServer) Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60Hz Audio: Mic input, Audio Output Others: External Trigger In, Aux Out (TRIG OUT，PASS/FAIL)，10 MHz In，10 MHz Out
Probe (Standard)	500 MHz, 1 probe supplied for each channel
Display	15.6” HD TFT-LCD with capacitive touch screen (1920*1080)

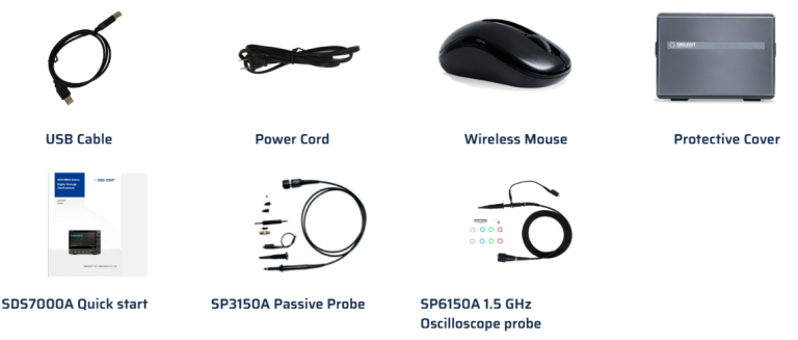

Accessories Included :

USB cable (1 pc) – For data transfer and remote control.
Quick start guide (1 pc) – Provides setup and basic operation instructions.
Passive probes SP3150A (1 per channel, 4 pcs) – 500 MHz bandwidth, 10X attenuation, supplied for each analog input channel.
Certificate of calibration (1 pc) – Factory calibration certificate ensuring measurement accuracy.
Wireless mouse (1 pc) – For easy navigation of menus and controls.
Power cord (1 pc) – Country-specific AC power cord.
Protective cover (1 pc) – Protects the display and controls during transport.
