Siglent SDG-7000A-IQ IQ modulation activation license (SDG7000A series)

Siglent SDG-7000A-IQ IQ Modulation Activation License

Unlock advanced vector signal generation on your Siglent SDG7000A Series arbitrary waveform generator with the Siglent SDG-7000A-IQ IQ modulation activation license. This software option enables the SDG7000A to operate as an I/Q signal generator, supporting a wide range of modulation formats including ASK, PSK, QAM, FSK, MSK, and multi-tone signals. It is the ideal upgrade for engineers, developers, universities, and RF test environments that need flexible digital modulation capability without replacing existing hardware.

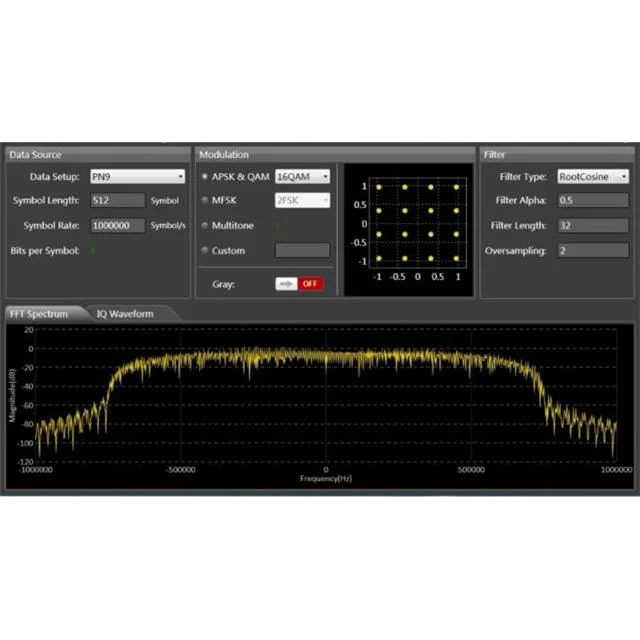

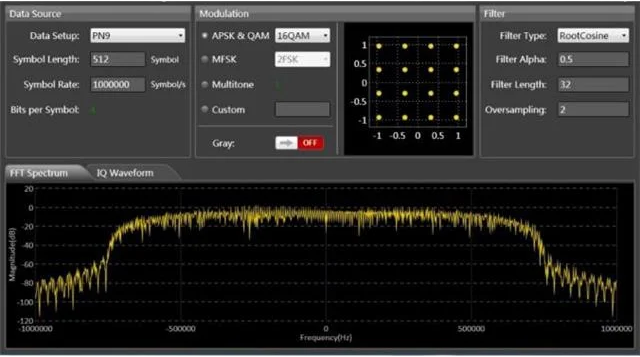

With the SDG-7000A-IQ license activated, the generator can output both baseband I/Q and IF signals, giving users more freedom for communication, RF, and modulation experiments. In baseband I/Q mode, CH1 is used as the I channel and CH2 as the Q channel, while IF mode internally modulates the I/Q data to a carrier for output. The platform also supports EasyIQ software, allowing users to create and download complex I/Q waveforms such as BPSK, QPSK, 8PSK, 16QAM, 64QAM, 256QAM, 2FSK, 4FSK, 16FSK, and more.

The license is a cost-effective way to expand the performance of your existing SDG7000A Series instrument, including the SDG7102A, SDG7052A, and SDG7032A. Installation is simple through the instrument’s Utility > Options menu, where the option key can be entered directly or installed from USB. For labs and production environments requiring modern signal generation, protocol research, modulation analysis, and education, the Siglent SDG-7000A-IQ activation license is a practical and powerful upgrade.
