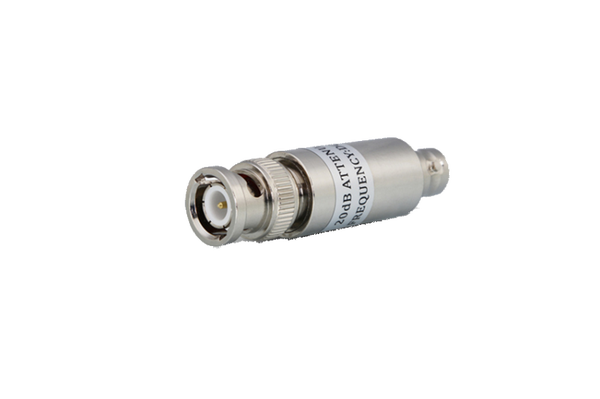

Siglent ATT-20 20 dB Attenuator


Siglent ATT-20 20dB Attenuator Can be used as external over- input level protection for the SSA3000X spectrum analyzers (Requires N(m) to BNC(f) adapter or coax cable). Also used to decrease the output voltage level from a SDG function generator.

Parameters : ATT-20
Attenuation value: 20 dB
Impedance: 50 Ohms
Frequency: DC – 4 GHz
Power rating: 1 watt
VSWR: <= 1.2
