Siglent F603FE 4.5GHz N-type VNA calibration kit
€419.00

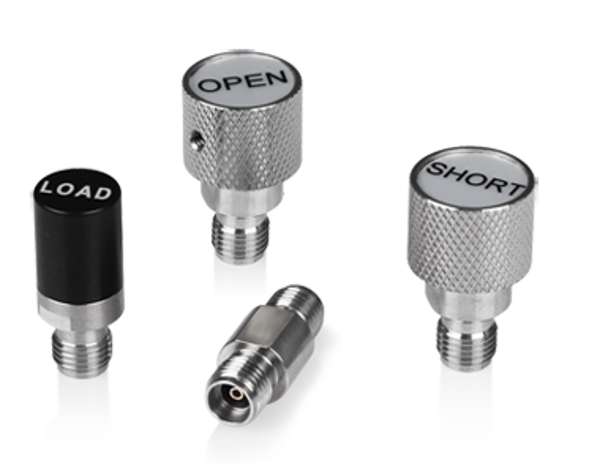

Siglent F603FE 4.5GHz Mechanical Calibration Kit. This kit contains precision Open(F), Short(F), Match(F,50), Through(F-F), DC-4.5 GHz
Siglent's F503ME is used to calibrate Siglent vector & spectrum analyzers. Standards include a fixed 50 Ω termination, an open load, a short load, and a through adaptor. The F503ME performance specifications are very similar to the Keysight 85032B mechanical calibration kit and it can be used as a replacement of 85032B.
| Type | Connector | Specification |
|---|---|---|
| Open | N(Male) | DC – 3.5 GHz, Phase Deviation ≤ ± 0.8° |
| Short | N(Male) | DC – 3.5 GHz, Phase Deviation ≤ ± 0.8° |
| Load | N(Male) | DC – 3.5 GHz, SWR ≤ 1.02 |
| Through | N(Female) - N(Female) | DC – 18 GHz, SWR ≤ 1.20 |
Specifications :
| Impendence | 50 Ω |
| Power | 1 W |
| Interfaces Standard | IEC 60169-16 |
| Durability | > 2000 |
| Torque | 1.35 Nm |
| Spanner | 19 mm |
| Temperature | -15 ℃ ~ + 35 ℃ |
