Siglent SDS1072CML+ 70MHz Dual channel oscilloscope

Sold out
€279.00

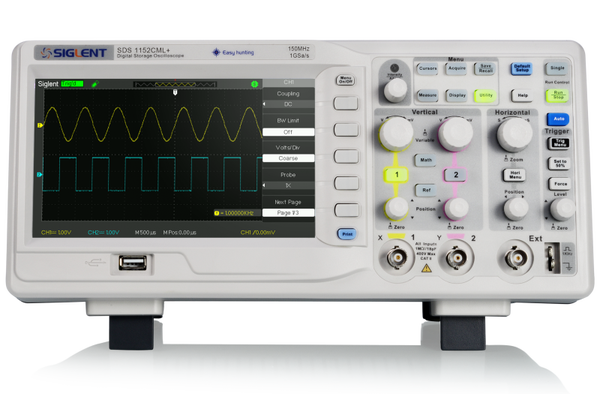

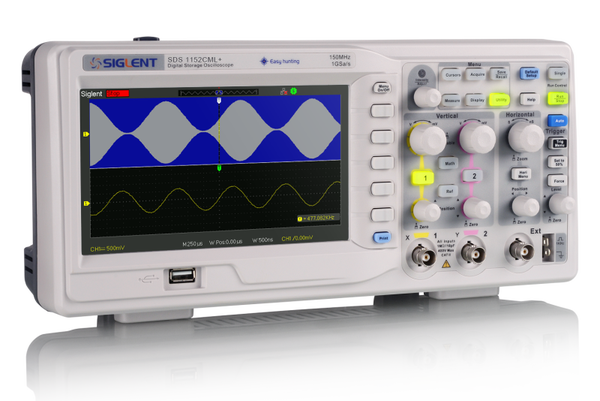

The Siglent SDS1072CML+ is a dual-channel universal digital oscilloscope with a 70 MHz bandwidth. It includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths.

With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1072CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Normal Memory (40 Kpts)



Long Memory (2 Mpts)

Key Features

  • Supports multi-language display and embedded help
  • Screensaver from 1 minute to 5 hours
  • Digital filter and waveform recorder function
  • Shortcut storage function key
  • 7-inch TFT-LCD display with 800 * 480 resolution
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

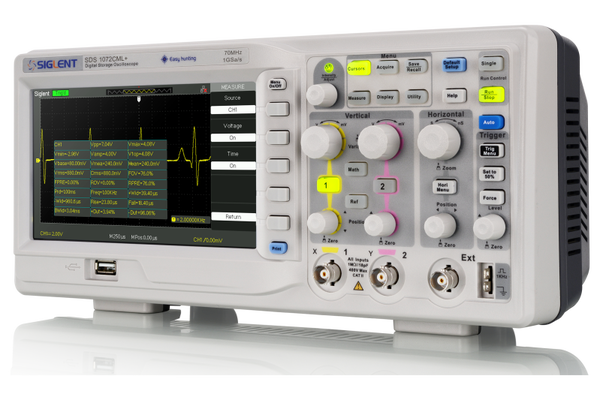

32 auto measurements/5 displayed

The SDS1052DL+ supports voltage, time and delay measurement types, with a total of 32 different parameters. The user is able to select five measurements to display on the screen. All measurement parameters can also be displayed simultaneously.

Accessoires Included:

1 x Siglent SDS1072CML+ Oscilloscope
2 x 70MHz probes
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

SDS1000DL+ / CML+ User Manual
PDF – 2,0 MB 1450 downloads
SDS1000DL+ CML+ Series Data Sheet
PDF – 1,6 MB 1305 downloads
SDS1000DL+ / CML+ Programming Guide
PDF – 3,4 MB 1169 downloads
