Siglent SDS5108L 8CH 1 GHz, 5 GSa/s 12bit Digital Oscilloscope

NEW

€15,060.00

Quantity

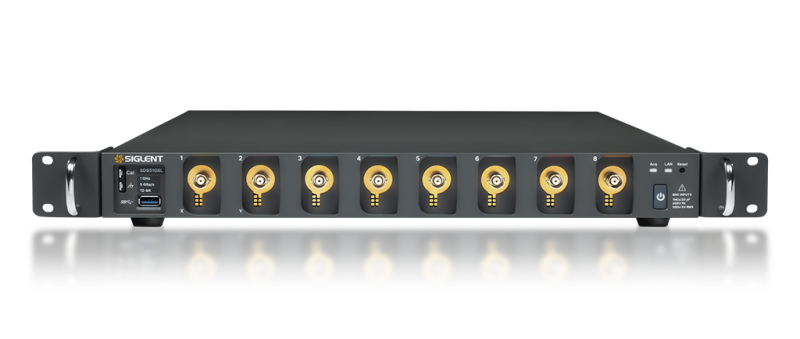

The Siglent SDS5108L is a powerful 8-channel digital oscilloscope designed for advanced multi-signal analysis in embedded systems, power electronics, and industrial automation. Featuring up to 1 GHz bandwidth, 2 GSa/s sampling rate, and 500 Mpts of memory depth per channel, it offers exceptional visibility into fast, complex signals.

The Siglent SDS5058L is a powerful, high-performance 8-channel digital storage oscilloscope designed for engineers who demand efficient multi-channel acquisition and deep signal insight. With up to 500 MHz bandwidth, 2 GSa/s real-time sampling rate, and 500 Mpts of memory per channel, it enables detailed signal capture across all inputs without compromise.

Though compact in form, the SDS5058L supports external HDMI display, full remote control via LAN, USB, or built-in WebServer, and provides seamless integration into any professional test environment. It features a rich front and rear I/O panel and is engineered for standalone or rack-mounted deployment—perfect for embedded debugging, automated testing, and complex validation workflows.

Packed with analysis functions such as serial bus decoding, Bode plotting, mask testing, and memory waveform comparison, the SDS5058L offers capabilities normally found in higher-cost oscilloscopes. Its ability to handle large volumes of data from multiple channels makes it ideal for power systems, industrial automation, motor control, and multi-core embedded system analysis.

Whether in product development, production testing, technical service, or engineering education, the SDS5058L stands out as a robust and scalable measurement solution for modern electronic challenges.

Power-Up Sequence Analysis

Modern electronic systems often contain multiple chips and modules that must power up in a specific sequence to avoid conflicts and ensure stability. Errors in this sequence—especially in communication systems—can lead to data failures. As circuits grow more complex, power-up testing becomes more challenging. The SDS5000X HD captures all relevant signals in a single acquisition, enabling efficient, accurate one-shot measurements—even in systems with up to 8 power rails—saving time and reducing errors.

Three-Phase Power Analysis

An 8-channel oscilloscope enables full three-phase power analysis by measuring all voltage and current signals simultaneously. It captures real-time waveforms, shows phase relationships for balance checks, and performs harmonic analysis using FFT. Optional software adds vector diagram testing, power quality, ripple, and efficiency analysis for motors and power systems.

Key Features – Siglent SDS5058L 8-Channel Digital Oscilloscope

8 Analog Channels, 12-bit High Resolution
Achieve up to 16× better vertical resolution than standard 8-bit scopes—perfect for capturing subtle signal details and small voltage variations across multiple points simultaneously.

500 MHz Bandwidth & 2 GSa/s Sample Rate
High-speed sampling and broad analog bandwidth ensure faithful capture of fast edge transitions and high-frequency components.

500 Mpts of Memory Per Channel
Massive acquisition memory allows deep signal analysis over long periods without reducing sample rate, ideal for rare event detection and comprehensive debug.

256-Level Intensity Grading & Zone Triggering
Gain intuitive insight into signal activity with advanced visualization, and trigger precisely on complex waveform conditions.

External HDMI Display Output (1280×800)
Pair the SDS5038L with an external monitor to unlock a spacious, high-resolution workspace for analysis. Supports multi-window layouts for parallel viewing.

Multi-Window Display Support
Simultaneously observe up to 9 waveform windows—ideal for multi-domain debugging, system-level verification, and correlation across all 8 channels.

Advanced Analysis Suite
Includes optional power analysis, Bode plot, three-phase measurements, double pulse test, histogram, DVM, and frequency counter tools—enhancing productivity for advanced applications.

Extensive Serial Protocol Support
Decode and trigger on buses like I2C, SPI, UART, CAN, LIN, FlexRay, and more with high accuracy and ease.

LAN, USB, HDMI, and Web Control
Connect and control remotely through LAN or built-in WebServer. USB and HDMI offer efficient data handling and extended display options.

Scalable Licensing for Specialized Applications
Expand capabilities with optional software licenses for automotive protocols, power analysis, and more—tailor the scope to your evolving project needs.

Applications

Power Electronics & Motor Control
Evaluate switching losses, SOA, modulation, and three-phase system performance using advanced power analysis and double pulse testing.

Embedded Systems & Mixed-Signal Debugging
Analyze SPI, UART, CAN, and I²C signals with multi-channel capture, deep memory, and protocol decoding tools.

Product Development & Validation
Capture long-duration transients with 500 Mpts memory, and correlate across multiple channels with synchronized acquisition.

Research & Higher Education
An ideal platform for teaching measurement principles, waveform analysis, and embedded system diagnostics.

Automotive & Industrial Automation
Supports protocol analysis, noise-sensitive signal validation, and synchronized multi-sensor testing in complex control systems.

Model	Specifications
Analog channels	8 + EXT
Bandwidth	500 MHz
Sample rate (Max.)	5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode)
Vertical Resolution	12-bit Up to 16-bit in HiRes mode
Memory depth (Max.)	2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode)
Waveform capture rate (Max.)	Normal mode: Up to 160,000 wfm/s；Sequence mode: Up to 650,000 wfm/s
Trigger type	Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode	Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429
Measurement	60+ parameters. Statistics, histogram, trend, and track supported
Math	8 traces 8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor
Data analysis	Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot , Power Analysis, Double Pulse Test
Waveform generator (optional)	SAG1021I USB isolated waveform generator module, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
Probe (Standard)	500 MHz, 1 probe supplied for each channel
