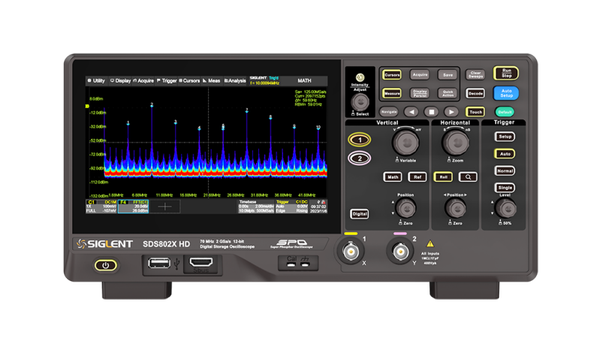

Siglent SDS822X HD 2CH 200MHz 12bit Oscilloscope
SIGLENT’s new SDS822X HD series high resolution digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. With a 200MHz bandwidth, and a maximum record length of 100 Mpts, and has 2 analog channels + 16 digital channels mixed signal analysis ability.
SDS822X HD — 200 MHz, 2 channels, 12-bit
The SDS822X HD is the 200 MHz, 2-channel model of Siglent’s SDS800X HD series — the most affordable 12-bit oscilloscope in the range, bringing high-resolution acquisition to the bench, lab and classroom. The 12-bit ADC and a quiet 70 µVrms front end resolve small signals and ripple with far less noise than an 8-bit scope.
It pairs that resolution with 2 GSa/s sampling, up to 100 Mpts of memory and a 120,000 wfm/s capture rate, a 7" capacitive multi-touch display, and built-in Bode plot, power analysis and a 2 Mpts FFT. Standard serial decode (incl. CAN FD, FlexRay & I²S), an optional 16-channel logic probe and a 25 MHz generator make it a complete, budget-friendly bench.
Analysis tools built in
12-bit high resolution
A true 12-bit ADC reveals fine detail and small signals with 16× less quantisation noise than an 8-bit scope, on a front end with a 70 µVrms noise floor.
Bode plot & power analysis
Built-in frequency-response (Bode) plotting with a Vari-level mode for control-loop response, plus optional power-analysis tools.
2 Mpts FFT
A hardware-accelerated 2 Mpts FFT with Normal/Average/Max-hold modes, multiple windows and peak markers turns the scope into a capable spectrum tool.
Advanced math
Four math traces with +, −, ×, ÷, FFT, integrate, differentiate and square-root, plus a formula editor for complex operations.
Who it’s for & best applications
The SDS822X HD doubles the bandwidth to 200 MHz in a 2-channel format — for faster edges and higher-frequency signals where two channels suffice, with 12-bit resolution to still resolve fine detail. The extra bandwidth captures quicker rise times and higher clock rates cleanly, and the deep FFT extends spectral analysis further up the range. Backed by a 7″ capacitive multi-touch display, 100 Mpts memory and a 120,000 wfm/s capture rate, it suits faster development, validation and repair, and expands with an optional 16-channel logic probe and a 25 MHz generator.
- R&D and design engineers on a budget
- Service of faster digital equipment
- Education and university labs
- Embedded developers at higher clock rates
- Quality and validation benches
- Faster digital timing & edge measurements
- Higher-frequency switching power & noise
- Higher-speed serial buses (SPI, UART, CAN FD)
- FFT / spectral checks to higher frequencies
- Component and amplifier characterisation
- Audio through to RF-adjacent signals
Specifications
| Analog bandwidth | 200 MHz |
| Analog channels | 2 + EXT |
| Vertical resolution | 12-bit |
| Noise floor | 70 µVrms @ 200 MHz (typ.) |
| Max. sample rate | 2 GSa/s (single channel) · 1 GSa/s (per channel) |
| Max. record length | 100 Mpts (single) · 50 Mpts (per channel) |
| Waveform capture rate | 120,000 wfm/s (normal) · 500,000 wfm/s (sequence) |
| Display | 7" capacitive multi-touch (1024×600), mouse & web control |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Serial |
| Serial decode (standard) | I²C, SPI, UART/RS232, CAN, CAN FD, LIN, FlexRay, I²S |
| Math | 4 traces · 2 Mpts hardware FFT · formula editor |
| Analysis tools | Search, Navigate, History, Mask Test, Counter, Bode Plot, Power Analysis |
| MSO (optional) | 16 digital channels via SLA1016 logic probe |
| AWG (optional) | SAG1021I — 25 MHz isolated arbitrary waveform generator |
| Connectivity | USB 2.0 Host · USB 2.0 Device · 10/100M LAN · Aux (Trigger / Pass-Fail) out |
| Standard probe | Passive probe, one per channel (bandwidth-matched) |
From the official SDS800X HD datasheet; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your SDS822X HD.
Optional accessories & licenses
Expand your SDS822X HD with logic analysis, a built-in generator and probes. Serial decode (including CAN FD, FlexRay and I²S) is included as standard.
SLA1016 16-channel logic probe — adds 16 digital channels for mixed-signal debug.
SAG1021I 25 MHz isolated arbitrary/function generator module.
Spare passive probes and active / high-voltage probes.
SDP6150A / SDP6150D and DPB-series differential high-voltage probes.
Cables, cases, calibration kits, deskew fixtures and more.
Software & licenses
A real strength of the SDS800X HD: serial trigger & decode is included as standard — even CAN FD, FlexRay and I²S, which are paid licenses on many other oscilloscopes. The only separate software option is Power Analysis.
| Function | Order number | Status | Action |
|---|---|---|---|
| Serial trigger & decode — I²C, SPI, UART, CAN, LIN | Standard | Included | No license required |
| CAN FD trigger & decode | Standard | Included | No license required |
| FlexRay & I²S trigger & decode | Standard | Included | No license required |
| Power Analysis software | SDS800XHD-PA | Optional | €239.00Buy |
MSO (SLA1016) and the 25 MHz generator (SAG1021I) are hardware options shown above. Power Analysis is a software-only license — see the SDS800XHD-PA page.
Compare the full SDS800X HD range
See the 70, 100 and 200 MHz, 2- and 4-channel models side by side, or ask us for advice.
