Siglent SNA5000A-SA Spectrum Analyzer Function

SIGLENT SNA5000-SA Spectrum Analyzer Option

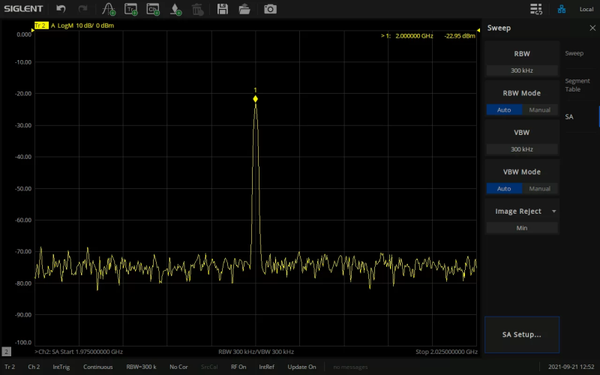

The SNA5000-SA option enables the Spectrum Analyzer (SA) measurement application on SIGLENT SNA5000A Series Vector Network Analyzers. This option allows engineers to perform detailed frequency-domain signal analysis directly on the VNA platform, eliminating the need for a separate spectrum analyzer.

With the SA option activated, the SNA5000A becomes a versatile RF analysis instrument capable of measuring signal spectra, noise, spurious emissions, and modulation-related parameters, making it ideal for RF design, troubleshooting, and production testing.

Key Features & Benefits

• Integrated Spectrum Analyzer application
  Perform spectrum measurements within the SNA5000A user interface.

• Wide frequency coverage
  Matches the frequency range of the installed SNA5000A model for consistent RF analysis.

• Advanced spectrum measurements
  Includes Channel Power, ACPR, Occupied Bandwidth, TOI, CNR, and Spectrum Monitor functions.

• High dynamic range and low noise floor
  Enables accurate analysis of weak signals, harmonics, and spurious components.

• Markers, limit lines, and trace functions
  Fast peak search, limit testing, and trace analysis for efficient evaluation.

• Seamless integration with VNA workflows
  Shared triggering, calibration environment, and data handling between VNA and SA modes.

• Software license option
  Activated via license key — no additional hardware required.

Ideal Applications

• RF signal analysis and troubleshooting

• Spurious and harmonic measurements

• Transmitter and receiver testing

• EMC pre-compliance measurements

• RF design verification and production testing

Compatibility

• Compatible with SIGLENT SNA5000A Series Vector Network Analyzers

• License-based option, activated directly on the instrument

Why Choose the SNA5000-SA Option?

The SNA5000-SA option expands the SNA5000A into a powerful combined VNA and spectrum analysis platform, reducing equipment cost and bench space while improving test efficiency. It is an ideal upgrade for engineers who require both network and spectrum analysis in a single, flexible instrument.
