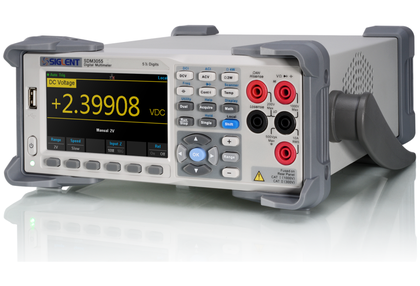

Siglent SDM3055 5 1/2 Digits Dual-Display Digital Multimeter

Siglent SDM3055 Digital Multimeter — Precision Meets Performance

The Siglent SDM3055 is a high-performance 5½-digit digital multimeter built to deliver exceptional accuracy, reliability, and measurement speed. Designed with the needs of laboratories, research and development facilities, production test benches, and educational institutions in mind, this instrument provides the precision and functionality required for a wide range of electrical and electronic measurement applications.

Combining advanced measurement technology with intuitive operation, the SDM3055 delivers dependable results whether you are verifying circuit performance, testing components, or monitoring long-term stability. Its high-resolution display, comprehensive range of measurement functions, and fast sampling rate make it ideal for both detailed analysis and repetitive testing tasks.

Engineers and technicians appreciate its solid build quality, modern interface, and flexible connectivity options, which together ensure effortless integration into both standalone and automated testing environments. The SDM3055’s performance and ease of use make it an outstanding choice for professionals who demand precise, consistent, and trustworthy measurement results—day after day, test after test.

Visual Data Analysis with the Histogram Display

The Siglent SDM3055 includes a powerful histogram display function that provides an instant visual representation of measurement distributions. This feature allows users to quickly observe how measured values vary over time and to identify trends, outliers, or drift in the signal.

Instead of analyzing only numerical statistics, the histogram presents data in a bar graph format, showing how often specific measurement values occur within a defined range. This is particularly useful for detecting stability issues, component tolerances, or fluctuations in production testing.

By offering both graphical and numerical insights, the SDM3055 helps engineers make faster, more informed decisions without the need for external software. Combined with its high sampling rate and internal data logging capabilities, the histogram display transforms the multimeter into a powerful tool for quality control, long-term monitoring, and statistical analysis directly on the instrument.

Histogram

Trend Chart for Time-Based Analysis

The Trend Chart function of the Siglent SDM3055 provides a dynamic graphical view of measurement results over time, allowing users to easily observe signal stability, drift, or gradual changes in voltage, current, or resistance. This real-time plotting feature is ideal for long-term monitoring and characterization of components or circuits under varying conditions. With adjustable time scales and automatic scaling options, the Trend Chart helps transform numeric readings into clear visual trends—making it easier to detect patterns, anomalies, or performance fluctuations directly on the instrument’s color display.

Trend Chart

Key Features

5½-Digit Resolution – Provides up to 240,000 counts for highly precise measurements of voltage, current, resistance, frequency, and more.
High Accuracy – DC voltage accuracy up to 0.015%, ensuring confidence in critical measurement applications.
Dual Display – Large, easy-to-read 4.3” TFT-LCD screen with dual display mode for simultaneous parameter viewing.
Advanced Measurement Functions – Includes True RMS AC voltage/current, capacitance, diode, continuity, temperature, and frequency tests.
Fast Sampling – Delivers up to 150 readings per second, ideal for dynamic signal monitoring and production testing.
Built-in Data Logging – Store results directly or remotely via USB or LAN interface for easy analysis and automation.
Comprehensive Connectivity – Standard USB Host/Device, LAN (LXI-C), and GPIB (optional) interfaces support remote control and data acquisition.
Math & Statistics Functions – Offers max/min, average, standard deviation, and trend display for deeper analysis.

Dual Display for Enhanced Efficiency

The Siglent SDM3055 features a practical dual display mode that allows two measurement parameters to be shown simultaneously on the screen. For example, users can view voltage and current, or frequency and amplitude, at the same time—without switching modes or losing data continuity. This capability streamlines testing and analysis, especially in applications where correlated measurements are essential. With its bright, 4.3-inch TFT-LCD screen, the SDM3055 delivers clear, real-time visibility of both readings, improving workflow efficiency and making complex measurements faster and more intuitive.

Dual Display

Applications

R&D and laboratory testing
Production line quality control
Education and training environments
Precision measurement and calibration tasks

Why Choose the SDM3055

The SDM3055 stands out with Siglent’s renowned reliability and modern interface, blending professional-grade accuracy with intuitive operation. Whether used as a standalone bench meter or integrated into an automated test system, it provides the measurement confidence needed for today’s demanding electronic applications.

Model:	SDM3055	SDM3055-SC
Reading Resolution	5 1/2	5 1/2
DC Voltage Accuracy in a Year	0.015% of reading + 0.003% of range	0.015% of reading + 0.003% of range
DC Voltage Measurement Range	200 mV - 1000 V	200 mV - 1000 V
AC Voltage Measurement Range	200 mV - 750 V	200 mV - 750 V
DC Current Measurement Range	200 µA - 10 A	200 µA - 10 A
Scanner Card	NO	YES
