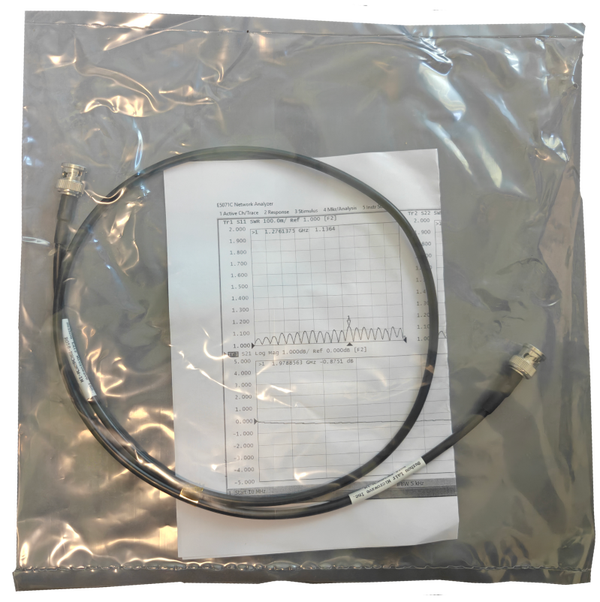

Siglent BNC - BNC 50 Ohm 1M cable

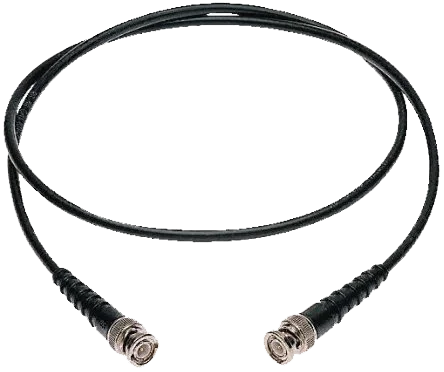

The RG58-BNCMBNCM-1M is a 1 meter RG58 coaxial cable with BNC male connectors on both ends, ideal for reliable signal connections between oscilloscopes, generators and other test instruments.
RG58-BNCMBNCM-1M – 1 m BNC Male to BNC Male Cable
The RG58-BNCMBNCM-1M is a reliable 1 meter RG58 coaxial cable designed for professional electronic measurement setups. With BNC male connectors on both ends, this cable is ideal for connecting oscilloscopes, signal generators, spectrum analyzers, network analyzers, frequency counters and other laboratory test equipment.
Its practical 1 meter length provides more flexibility on the workbench while still maintaining good signal performance. This makes it a suitable choice for engineers, technicians, laboratories, production lines, service departments and educational environments.
Key Benefits
The RG58-BNCMBNCM-1M BNC male-to-male cable is suitable for fast and secure signal connections in RF, analog and general electronics testing. The bayonet-style BNC connectors provide a stable connection while allowing quick connection and disconnection during daily measurement work.
The cable has been checked using a network analyzer over a frequency range from 10 MHz to 2 GHz. The measurement shows a measured S21 insertion loss value of approximately -0.8751 dB at 1.9788563 GHz, making it suitable for many test and measurement applications where a stable coaxial connection is required.
Applications
This 1 m BNC male-to-male cable is suitable for use with:
Oscilloscopes
Function generators
Arbitrary waveform generators
Spectrum analyzers
Network analyzers
Frequency counters
RF test setups
Laboratory and production test benches
Educational electronics labs
Service and repair environments

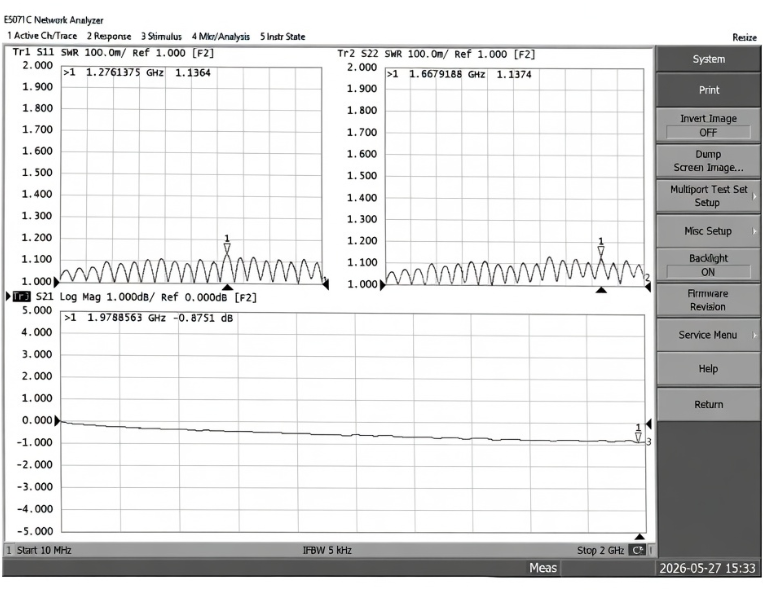

Measurement Graphs / Analyzer Results
Network analyzer measurement range: 10 MHz to 2 GHz
Insertion loss measurement: S21 Log Mag
Measured insertion loss: -0.8751 dB at 1.9788563 GHz
SWR measurement: S11 and S22
Measured S11 SWR: 1.1364 at 1.2761375 GHz
Measured S22 SWR: 1.1374 at 1.6679188 GHz
IF bandwidth during measurement: 5 kHz
These results make the cable a strong choice for everyday bench measurements, RF signal routing and general-purpose coaxial interconnections.
| Specification | Details |
|---|---|
| Product code | RG58-BNCMBNCM-1M |
| Product type | RG58 coaxial test cable |
| Connector A | BNC male |
| Connector B | BNC male |
| Cable length | 1 m |
| Frequency test range | 10 MHz to 2 GHz |
| Measured insertion loss | Approx. -0.8751 dB at 1.9788563 GHz |
| S11 SWR measurement | Approx. 1.1364 at 1.2761375 GHz |
| S22 SWR measurement | Approx. 1.1374 at 1.6679188 GHz |
| Measurement type | S11, S21 and S22 network analyzer test |
| IF bandwidth used in test | 5 kHz |
| Suitable for | Test and measurement equipment |
| Typical use | RF, signal, oscilloscope and laboratory connections |
