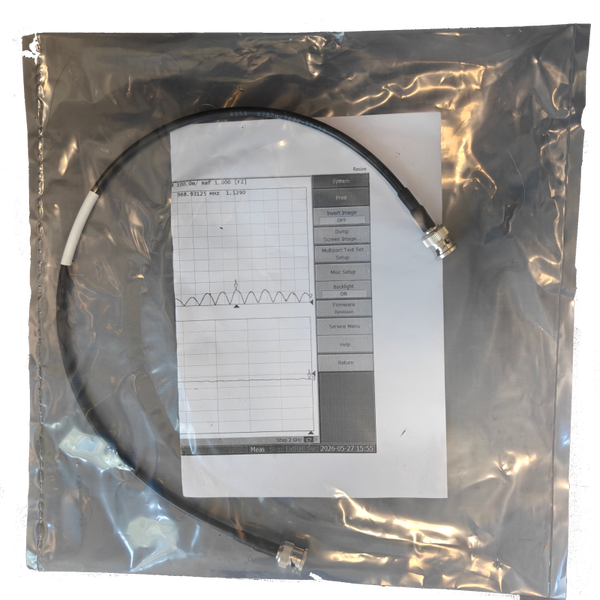

Siglent BNC - BNC 50 Ohm 0.5m cable

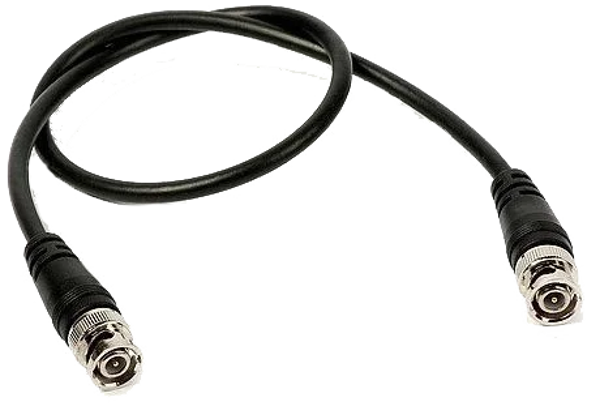

The RG58-BNCMBNCM-0.5M is a 0.5 meter RG58 coaxial cable with BNC male connectors on both ends, ideal for reliable signal connections between oscilloscopes, generators and other test instruments.
RG58-BNCMBNCM-0.5M Key Benefits
The BNC-BNC male cable is suitable for fast and secure signal connections in RF, analog, and general electronics testing. The bayonet-style BNC connectors provide a stable connection while still allowing quick connection and disconnection during measurement work.
The cable has been checked using a network analyzer over a frequency range from 10 MHz to 2 GHz. The measurement shows low insertion loss, with a measured S21 value of approximately -0.4835 dB at 1.9825875 GHz, making it suitable for many test and measurement applications where a short, stable coaxial connection is required.

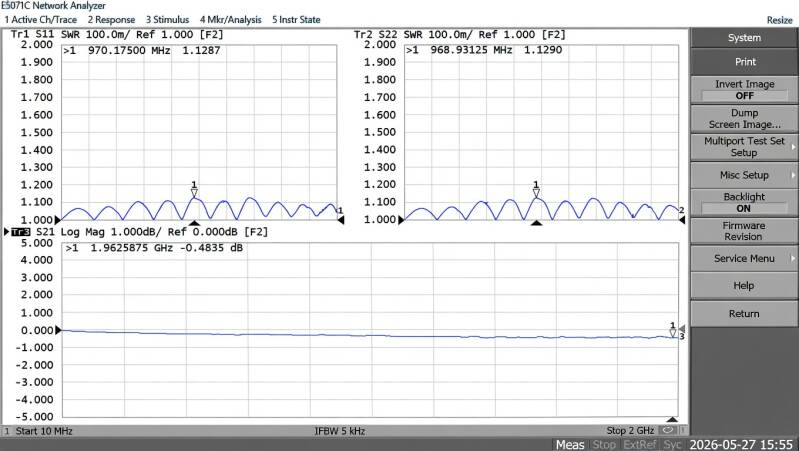

Measurement Graphs / Analyzer Results
Network analyzer measurement range: 10 MHz to 2 GHz
Insertion loss measurement: S21 Log Mag
Measured insertion loss: -0.4835 dB at 1.9825875 GHz
SWR measurement: S11 and S22
Measured SWR markers: approximately 1.13 near 970 MHz
IF bandwidth during measurement: 5 kHz
These results make the cable a strong choice for everyday bench measurements, RF signal routing, and general-purpose coaxial interconnections.
| Specification | Details |
|---|---|
| Product type | Coaxial test cable |
| Connector A | BNC male |
| Connector B | BNC male |
| Cable length | 0.5 m |
| Frequency test range | 10 MHz to 2 GHz |
| Measured insertion loss | Approx. -0.4835 dB at 1.9825875 GHz |
| SWR measurement | Approx. 1.13 near 970 MHz |
| Measurement type | S11, S21 and S22 network analyzer test |
| IF bandwidth used in test | 5 kHz |
| Suitable for | Test and measurement equipment |
| Typical use | RF, signal, oscilloscope and laboratory connections |
