Siglent SAG1021I 25MHz function/arbitrary waveform generator ( module only )


Siglent SAG1021I 25MHz function/arbitrary waveform generator. Only hardware no license key

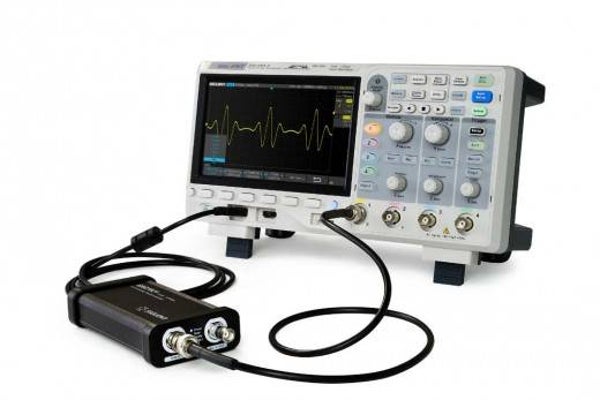

The Siglent SAG1021I  is a external Arbitrary Waveform Generator (AWG) for the SDS1000X / X-E 4 Channel oscilloscopes ,which can easily and quickly provide multiple input signals to users. The AWG provides two kinds of waveforms: the standard waveform and the Arb . the Arb single consists of two types: the system’s built-in waveforms and the stored waveforms. Built-in waveforms are stored in the internal non-volatile memory. It is includes: Common, Math , Engine, Window, Trigo. Users may also edit the arbitrary waveform by PC which has installed the EasyWave, or import the waveform by U disk that had stored edited waveform.

Model : SAG1021I
Channel 1
Max. Output Frequency 25 MHz
Output impedance   50 Ω±2%
Protection Current-Limiting Protection, Over-Voltage Protection
Sampling Rate 125 MSa/s
Frequency Resolution 1 μHz
Frequency Accuracy ±50 ppm
Vertical Resolution 14-bits
AmplitudeRange -1.5 ~ +1.5 V (50Ω) / -3 ~ +3 V (High-Z)
Waveform Type Sine, Square, Ramp, pulse, Noise, DC and 45 built-in waveforms

The kit includes:

1 x License key
1 x USB Cable
1 x BNC Cable
1 x SAG1021
