Siglent SHN900-SA Spectrum Analyzer option license

Siglent SHN900-SA Spectrum Analyzer Option License – Key Features

The SHN900-SA software license transforms the SHN900A series Vector Network Analyzer into a full-featured Spectrum Analyzer, ideal for RF diagnostics and signal analysis. Key features include:

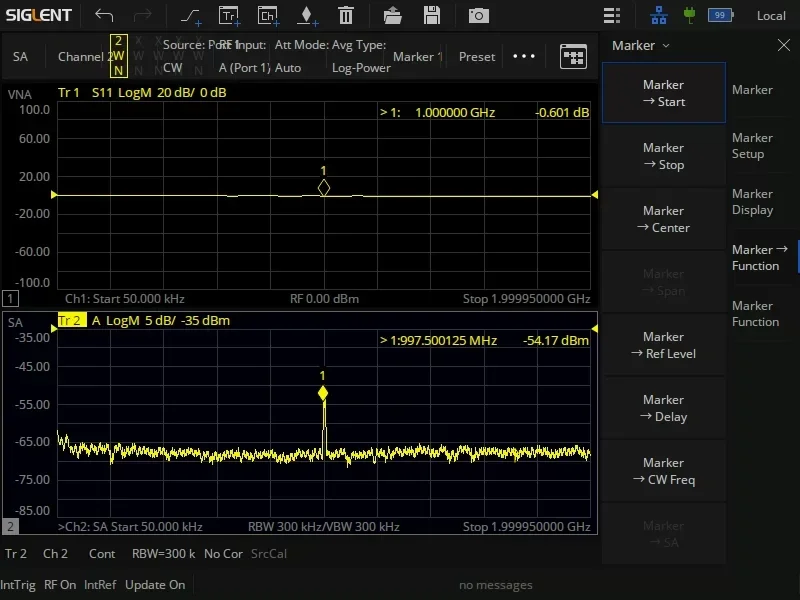

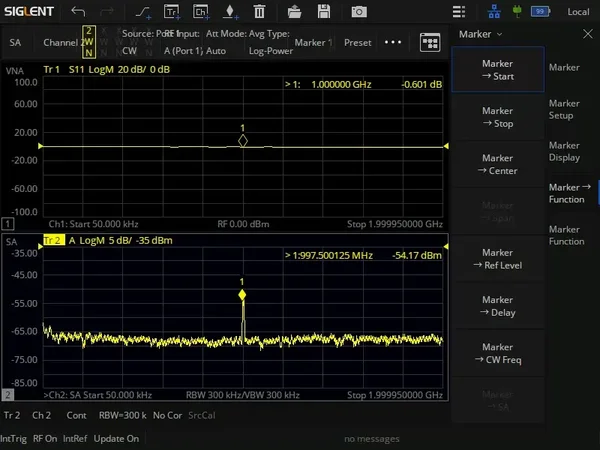

• Dedicated SA Mode Interface: Seamless switching to spectrum analysis mode with a specialized user interface for easy navigation and operation.

• Flexible Channel Configuration: Create and manage spectrum analysis channels alongside vector network analysis channels.

• Advanced Measurement Capabilities:

  • Channel Power and Occupied Bandwidth (OBW) calculations

  • ACPR (Adjacent Channel Power Ratio) measurements

  • Marker functions with delta and peak search features

• Multiple Trace and Display Options: Customize trace settings, including number of traces, display format (e.g., LogMag), and detection types.

• Adjustable Span and RBW/VBW: Precise control over resolution and video bandwidth settings, with variable frequency spans and start/stop tuning.

• Integrated Source Control: Set and manage RF output power and frequency directly in SA mode.

• Advanced Processing Features: Supports average, max hold, and min hold trace processing.

The SHN900-SA option significantly expands the utility of the SHN900A series, turning it into a multi-functional RF analysis platform suitable for both VNA and SA tasks.
