Siglent SDS5000HD-FlexRay license option
Unlocks the SDS5000HD-FlexRay option for FlexRay trigger and decode at 2.5, 5 or 10 Mbps. For the SDS5000X HD.
SDS5000HD-FlexRay — FlexRay trigger & decode
FlexRay trigger and decode at 2.5, 5 or 10 Mbps.
Supplied as a licence key issued against the instrument's serial number. There is no hardware to fit and nothing to return: the code is entered in the instrument's own menu and the function is available immediately, on the instrument you already own.
What this option does
What it does

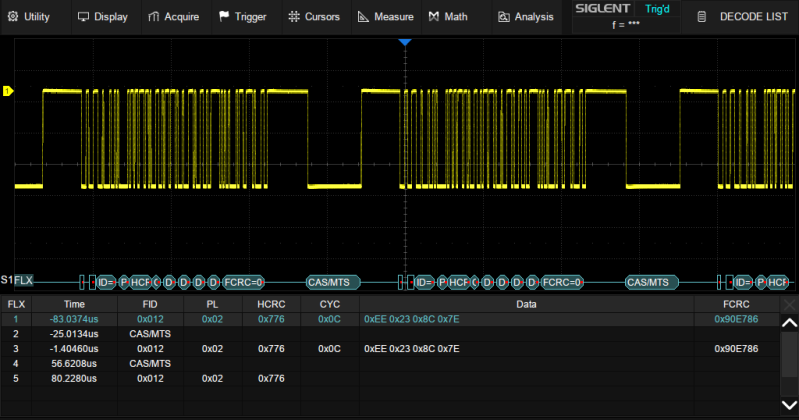

Triggers on the transmission start sequence, a frame, a symbol or an error, and decodes FlexRay at 2.5, 5 or 10 Mbps or a custom rate, from the analogue channels or the SPL2016’s digital channels.
What you use it for
FlexRay’s value is timing determinism, so the useful question is usually whether a frame arrived when it should have — a question about time, which is what an oscilloscope answers.
In practice
A chassis-control node loses frames intermittently. Triggering on errors captures the event together with the differential waveform, so a physical-layer cause can be told apart from a scheduling one.
Trigger and decode details
From the SDS5000X HD data sheet.
| Trigger types | TSS, Frame, Symbol, Errors |
| Bit rate | 2.5, 5 or 10 Mbps, or custom |
| Decode from | Analogue channels C1–C8 or SPL2016 digital channels D0–D15 |
| Decoders at once | 2, full duplex |
| Standard on every SDS5000X HD | I²C, SPI, UART, CAN, LIN — no key needed |
Compatibility
The option runs on every SDS5000X HD model, at every bandwidth and channel count.
| Channels | 350 MHz | 500 MHz | 1 GHz |
|---|---|---|---|
| 4-channel | Compatible | Compatible | Compatible |
| 6-channel | SDS5036X HD (on request) Compatible | SDS5056X HD (on request) Compatible | SDS5106X HD (on request) Compatible |
| 8-channel | Compatible | Compatible | Compatible |
The SDS5000L low-profile models have their own option keys. The 6-channel models are supplied on request.
Related options and accessories
Questions about SDS5000HD-FlexRay
Can I decode from the SPL2016 logic probe?
Yes. FlexRay decodes from the analogue channels or from the SPL2016’s 16 digital channels.
Which protocols are already included?
I²C, SPI, UART, CAN and LIN trigger and decode are standard on every SDS5000X HD. CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, ARINC 429 and Manchester are keys. Up to two decoders run at the same time.
How is the licence delivered?
Supplied as a licence key issued against the instrument's serial number. There is no hardware to fit and nothing to return: the code is entered in the instrument's own menu and the function is available immediately, on the instrument you already own. Add the instrument’s serial number to your order, or send it to us afterwards — the key is issued against it.
Can I return a licence?
Software licences and activation keys are delivered electronically and are excluded from the 14-day EU return right once the key has been issued. If you are unsure which key you need, ask us first — with your serial number we can confirm it.
Not sure this is the right key?
Send us your serial number and what you want to measure. We will confirm the exact option before you order.
