Siglent STC6P2W Banana to Triaxial 2-Wire Adapter

Reliable 2-Wire Adapter with Guard for SMU Measurement Applications

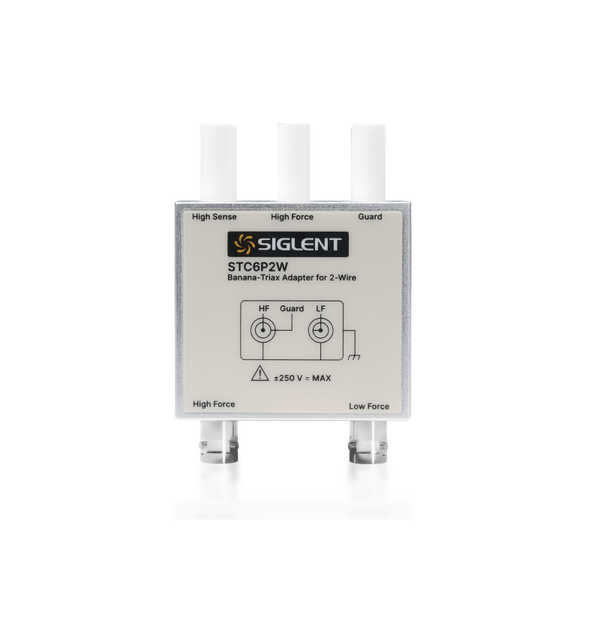

The Siglent STC6P2W is a high-quality banana-to-triaxial 2-wire (non-Kelvin) adapter with guard connection support, designed for use with the Siglent SMM3000X Series Source Measure Units (SMUs). It provides a secure and stable interface between standard banana terminals and triaxial connectors, ensuring dependable measurement performance in laboratory and production environments.

Ideal for general-purpose sourcing and measurement tasks, the STC6P2W offers a clean and practical connection to triaxial test fixtures while maintaining guarded measurement capability for improved noise reduction and leakage control.

2-Wire Measurement with Guard Support

The STC6P2W supports standard 2-wire (non-Kelvin) connections while incorporating a guard path within the triaxial interface. The guard connection helps minimize leakage currents and reduce noise in sensitive measurement setups.

This makes it suitable for:

• General voltage and current sourcing

• Functional and production testing

• Semiconductor device validation

• Applications requiring guarded triaxial connections

• Laboratory and educational environments

Its optimized internal wiring ensures reliable signal routing between banana inputs and triaxial outputs, including proper guard continuity.

Seamless Integration with SMU Systems

The STC6P2W is engineered specifically for compatibility with the Siglent SMM3000X Series SMUs, ensuring correct internal wiring alignment with Force and Guard terminals.

It enables easy connection to:

• Triaxial test fixtures

• Wafer probe stations

• Guarded measurement setups

• Low-noise laboratory environments

Key Features

• Banana to Triaxial – 2-Wire (Non-Kelvin) adapter

• Integrated guard connection support

• Designed for use with Siglent SMM3000X Series SMUs

• Compatible with guarded triaxial measurement systems

• Simple and reliable connection for precision applications

• Compact and durable mechanical construction

Technical Specifications

• Maximum Input: DC 250 V / 1 A

• Dimensions (L × W × H): 90 mm × 58 mm × 38 mm

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: −30 °C to +70 °C

• Operating Altitude: 0 m to 2000 m

Built for Professional Test & Measurement Applications

Whether you are performing:

• Semiconductor device testing

• Guarded voltage and current measurements

• Circuit validation

• Production quality control

• Educational laboratory experiments

the Siglent STC6P2W banana-to-triaxial adapter with guard ensures stable connectivity, reduced leakage, and consistent measurement performance.

Its compact footprint makes it ideal for bench setups, automated test racks, and integration into professional R&D and manufacturing environments.
