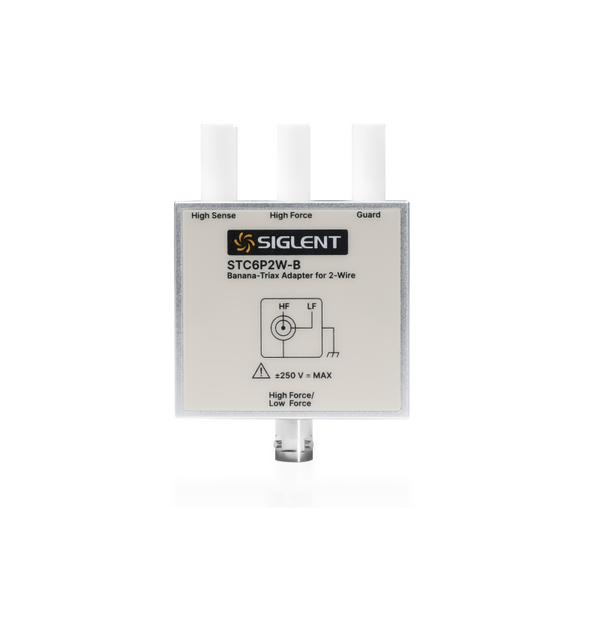

Siglent STC6P2W-B Banana to Triaxial 2-Wire Adapter

Reliable 2-Wire Adapter for SMU Measurement Applications

The Siglent STC6P2W-B is a high-quality banana-to-triaxial 2-wire (non-Kelvin) adapter designed for use with the Siglent SMM3000X Series Source Measure Units (SMUs). It provides a secure and stable connection between standard banana terminals and triaxial interfaces, ensuring dependable measurement performance in laboratory and production environments.

Ideal for general-purpose sourcing and measurement tasks, the STC6P2W offers a clean and practical interface for connecting SMUs to triaxial test fixtures and probe systems.

Reliable 2-Wire (Non-Kelvin) Measurement Configuration

The STC6P2W-B supports standard 2-wire connections, making it suitable for applications where Kelvin sensing is not required. It is ideal for:

• General voltage and current sourcing

• Routine device testing

• Functional verification

• Educational and laboratory environments

• Production testing setups

Its straightforward wiring configuration ensures easy setup while maintaining signal integrity.

Seamless Integration with SMU Systems

The STC6P2W-B is engineered specifically for compatibility with the Siglent SMM3000X Series SMUs, ensuring correct internal wiring and safe operation with triaxial connectors.

It enables easy connection to:

• Triaxial test fixtures

• Wafer probe stations

• Standard guarded measurement setups

• Low-noise laboratory environments

Key Features

• Banana to Triaxial – 2-Wire (Non-Kelvin) adapter

• Designed for use with Siglent SMM3000X Series SMUs

• Simple and reliable connection for general-purpose measurements

• Compatible with triaxial fixtures and probe systems

• Compact, durable mechanical construction

• Ideal for lab, R&D, and production environments

Technical Specifications

• Maximum Input: DC 250 V / 1 A

• Dimensions (L × W × H): 90 mm × 58 mm × 38 mm

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: −30 °C to +70 °C

• Operating Altitude: 0 m to 2000 m

Built for Professional Test & Measurement Applications

Whether you are performing:

• Semiconductor device testing

• General electrical characterization

• Functional circuit validation

• Educational laboratory experiments

• Production quality control

the Siglent STC6P2W-B banana-to-triaxial adapter provides reliable connectivity and consistent measurement performance.

Its compact design makes it ideal for bench setups, automated test racks, and integration into professional R&D and manufacturing environments.
