SIGLENT SDP6150A 100MHz High Voltage Differential Probe
The SIGLENT SDP6150A is a 100 MHz high voltage differential probe for safe and accurate measurement of floating and high voltage signals up to ±1500 V. With 50X/500X attenuation, high input impedance, low input capacitance, overrange indication and SAPBUS integration for compatible SIGLENT oscilloscopes, it is ideal for power electronics, inverter, motor drive and switching power supply measurements.
SIGLENT SDP6150A High Voltage Differential Probe
The SIGLENT SDP6150A is a professional 100 MHz high voltage differential probe designed for safe, precise and reliable measurement of floating high voltage signals with compatible SIGLENT oscilloscopes. It is ideal for engineers working on power electronics, switching power supplies, frequency converters, motor drives, electronic ballasts, variable frequency household appliances, inverters and other electrical power devices.
The SDP6150A supports differential voltage measurements up to ±1500 V DC + peak AC and uses 50X / 500X attenuation. The 50X range is suitable for measurements up to ±150 V, while the 500X range is used for measurements up to ±1500 V. This makes the probe flexible for both lower and higher voltage differential measurements.
The probe offers 100 MHz bandwidth, ≤3.5 ns rise time, ±2% DC accuracy, high input impedance and low input capacitance. Typical CMRR is specified at 80 dB at DC, 60 dB at 100 kHz and 40 dB at 1 MHz, helping to suppress common mode signals during differential measurements. A selectable 5 MHz bandwidth limit is available to reduce high frequency noise when measuring lower frequency signals.
For safety and convenience, the SDP6150A includes a visual overrange indicator and a switchable audible overrange alarm. Zero adjustment is supported manually and can also be performed through the oscilloscope when used with compatible SIGLENT models.

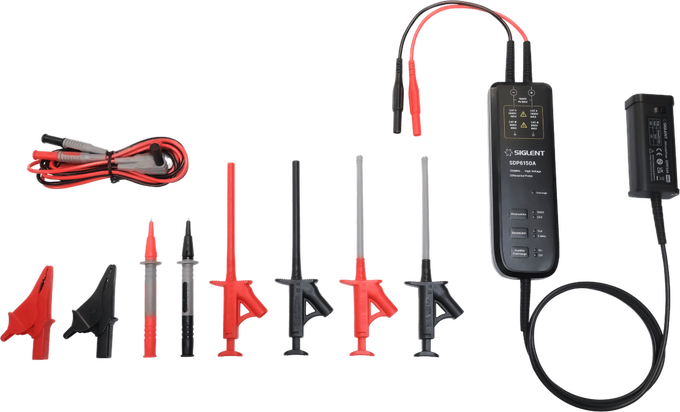

The SDP6150A uses SIGLENT’s SAPBUS interface, providing probe power, communication and automatic recognition on compatible SIGLENT oscilloscopes such as the SDS3000X HD, SDS6000X and SDS7000X series. The probe includes a practical accessory kit with high voltage rated accessories such as alligator clips, test bars, hook clips, Y-shaped clamps and extender leads.
Main SEO keywords: SIGLENT SDP6150A, SDP6150A high voltage differential probe, 100 MHz differential probe, ±1500 V oscilloscope probe, SIGLENT SAPBUS probe, high voltage oscilloscope probe, power electronics measurement probe.
Benefits for the User
- Measure high voltage safely and accurately
Designed for differential high voltage measurements where a standard passive oscilloscope probe is not suitable. - Ideal for power electronics development and service
Suitable for testing switching power supplies, frequency converters, inverters, motor drives, electronic ballasts and variable frequency appliances. - Better signal quality in noisy environments
Good CMRR, high input impedance and optional bandwidth limiting help improve measurement reliability. - Easy oscilloscope integration
The DPB6150 Series works with many oscilloscopes via BNC, while the SDP6150 Series integrates directly with compatible SIGLENT oscilloscopes through SAPBUS. - Flexible connection accessories included
The included clips, test bars, hook clips, Y-clamps and extender leads make it easier to connect safely in different measurement situations. - Choice between price/performance and advanced integration
Choose DPB6150 models for universal BNC compatibility, or SDP6150 models for SIGLENT SAPBUS convenience and oscilloscope-controlled setup.
Key Features
- High voltage differential measurement up to ±1500 V
Suitable for floating and high voltage signals in power electronics, inverters, motor drives and switching power supplies. - Available in 100 MHz and 400 MHz versions
The DPB6150A and SDP6150A offer 100 MHz bandwidth, while the DPB6150D and SDP6150D offer 400 MHz bandwidth for faster switching signals. - Two attenuation ranges per model
50X/500X on the A models and 100X/1000X on the D models, allowing the user to select the best range for the measured voltage. - Good common mode rejection
Typical CMRR is 80 dB at DC, 60 dB at 100 kHz and 40 dB at 1 MHz, helping to suppress common mode noise during differential measurements. - High input impedance and low input capacitance
10 MΩ input impedance between inputs, 5 MΩ single-ended to ground, with less than 2 pF capacitance between inputs and less than 4 pF single-ended to ground. - Overrange warning system
Visual overrange indicator and switchable audible overrange alarm help protect the probe and improve measurement safety. - Selectable 5 MHz bandwidth limit
Useful for reducing high frequency noise when measuring lower frequency signals. - Zero adjustment function
Manual zero adjustment on all models. SDP6150 models also support automatic zero adjustment through compatible SIGLENT oscilloscopes. - Different interface options
DPB6150 models use BNC output and external 5 V USB-C power. SDP6150 models use SIGLENT SAPBUS for power, communication and automatic recognition on compatible SIGLENT oscilloscopes. - Complete accessory kit included
Supplied with high voltage rated accessories for flexible and safe connection to the circuit under test.
| Model | Bandwidth | Attenuation | Max. Differential Test Voltage | Safety Rating | Interface / Power |
|---|---|---|---|---|---|
| SDP6150A | 100 MHz | 50X / 500X | ±1500 V DC + Peak AC | CAT III 600 V / CAT II 1000 V | SIGLENT SAPBUS interface, powered by oscilloscope |
| SDP6150D | 400 MHz | 100X / 1000X | ±1500 V DC + Peak AC | CAT III 600 V / CAT II 1000 V | SIGLENT SAPBUS interface, powered by oscilloscope |
| DPB6150A | 100 MHz | 50X / 500X | ±1500 V DC + Peak AC | 1000 V CAT III / 600 V CAT IV accessories | BNC output, external 5 V USB-C power supply |
| DPB6150D | 400 MHz | 100X / 1000X | ±1500 V DC + Peak AC | 1000 V CAT III / 600 V CAT IV accessories | BNC output, external 5 V USB-C power supply |
Items / Accessories Included with DPB6150A and DPB6150D
- 1 × high voltage differential probe
- 1 × 5 V / 1 A power adapter
- 1 × adapter set: American, British, Australian and European standard
- 1 × USB Type-C cable, 1 m
- 1 × accessory kit with 5 types of accessories
- 1 × probe packing box
- 1 × instruction manual
