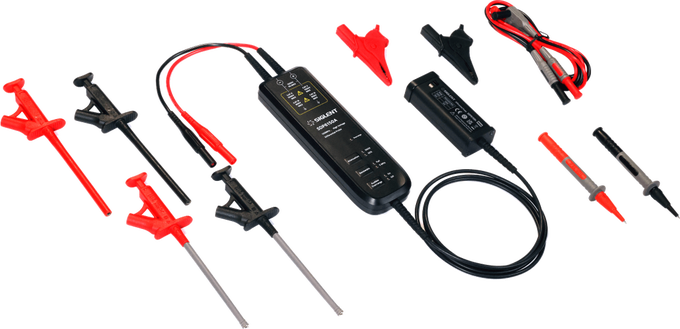

SIGLENT SDP6150D 400MHz High Voltage Differential Probe
The SIGLENT SDP6150D is a 400 MHz high voltage differential probe designed for fast high voltage differential signal measurements up to ±1500 V. It offers 100X/1000X attenuation, ≤1 ns rise time, high CMRR and SAPBUS communication for direct setup on compatible SIGLENT oscilloscopes. A professional probe for advanced power electronics, high-speed switching and inverter testing.
SIGLENT SDP6150D High Voltage Differential Probe
The SIGLENT SDP6150D is a professional 400 MHz high voltage differential probe for accurate measurement of fast floating high voltage signals with compatible SIGLENT oscilloscopes. It is especially suitable for advanced power electronics, high-speed switching applications, inverters, frequency converters, motor drives, switching power supplies and other electrical power systems.
The SDP6150D supports differential voltage measurements up to ±1500 V DC + peak AC and uses 100X / 1000X attenuation. The 100X range is suitable for measurements up to ±150 V, while the 1000X range is used for measurements up to ±1500 V. This allows the probe to handle both medium and high voltage differential signals while maintaining excellent measurement flexibility.
With 400 MHz bandwidth and a fast ≤1 ns rise time, the SDP6150D is well suited for capturing fast switching edges and high-speed transient signals. It offers ±2% DC accuracy, high input impedance and low input capacitance. Typical CMRR is specified at 80 dB at DC, 60 dB at 100 kHz and 40 dB at 1 MHz, helping to reduce the effect of common mode noise. A selectable 5 MHz bandwidth limit is also available for cleaner low-frequency measurements.
The SDP6150D includes a visual overrange indicator and a switchable audible overrange alarm to help protect the probe during measurements. Zero adjustment is supported manually and can also be controlled through compatible SIGLENT oscilloscopes.

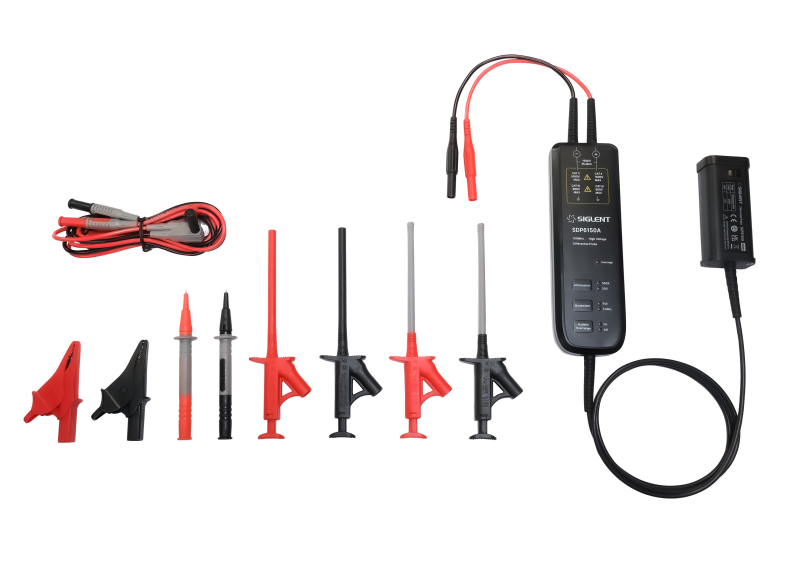

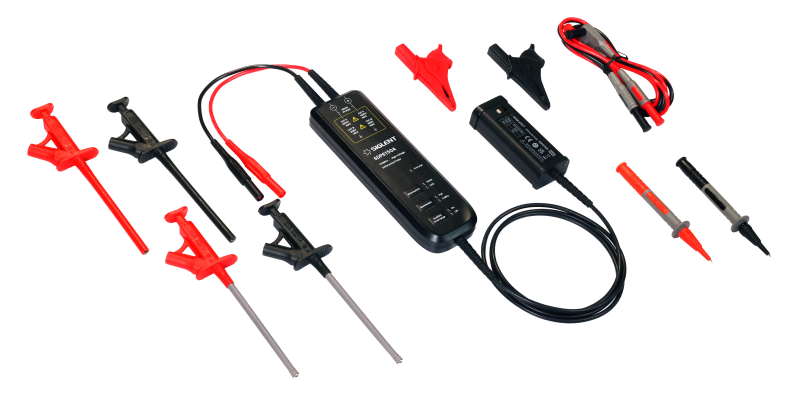

The SDP6150D uses SIGLENT’s SAPBUS interface, which provides power, communication and automatic probe recognition. It is compatible with SIGLENT SDS3000X HD, SDS6000X and SDS7000X oscilloscopes. The probe is supplied with a high voltage rated accessory kit including alligator clips, test bars, hook clips, Y-shaped clamps and extender leads.
Main SEO keywords: SIGLENT SDP6150D, SDP6150D high voltage differential probe, 400 MHz differential probe, ±1500 V oscilloscope probe, SIGLENT SAPBUS probe, high-speed differential probe, power electronics measurement probe.
Benefits for the User
- Measure high voltage safely and accurately
Designed for differential high voltage measurements where a standard passive oscilloscope probe is not suitable. - Ideal for power electronics development and service
Suitable for testing switching power supplies, frequency converters, inverters, motor drives, electronic ballasts and variable frequency appliances. - Better signal quality in noisy environments
Good CMRR, high input impedance and optional bandwidth limiting help improve measurement reliability. - Easy oscilloscope integration
The DPB6150 Series works with many oscilloscopes via BNC, while the SDP6150 Series integrates directly with compatible SIGLENT oscilloscopes through SAPBUS. - Flexible connection accessories included
The included clips, test bars, hook clips, Y-clamps and extender leads make it easier to connect safely in different measurement situations. - Choice between price/performance and advanced integration
Choose DPB6150 models for universal BNC compatibility, or SDP6150 models for SIGLENT SAPBUS convenience and oscilloscope-controlled setup.
Key Features
- High voltage differential measurement up to ±1500 V
Suitable for floating and high voltage signals in power electronics, inverters, motor drives and switching power supplies. - Available in 100 MHz and 400 MHz versions
The DPB6150A and SDP6150A offer 100 MHz bandwidth, while the DPB6150D and SDP6150D offer 400 MHz bandwidth for faster switching signals. - Two attenuation ranges per model
50X/500X on the A models and 100X/1000X on the D models, allowing the user to select the best range for the measured voltage. - Good common mode rejection
Typical CMRR is 80 dB at DC, 60 dB at 100 kHz and 40 dB at 1 MHz, helping to suppress common mode noise during differential measurements. - High input impedance and low input capacitance
10 MΩ input impedance between inputs, 5 MΩ single-ended to ground, with less than 2 pF capacitance between inputs and less than 4 pF single-ended to ground. - Overrange warning system
Visual overrange indicator and switchable audible overrange alarm help protect the probe and improve measurement safety. - Selectable 5 MHz bandwidth limit
Useful for reducing high frequency noise when measuring lower frequency signals. - Zero adjustment function
Manual zero adjustment on all models. SDP6150 models also support automatic zero adjustment through compatible SIGLENT oscilloscopes. - Different interface options
DPB6150 models use BNC output and external 5 V USB-C power. SDP6150 models use SIGLENT SAPBUS for power, communication and automatic recognition on compatible SIGLENT oscilloscopes. - Complete accessory kit included
Supplied with high voltage rated accessories for flexible and safe connection to the circuit under test.
| Model | Bandwidth | Attenuation | Max. Differential Test Voltage | Safety Rating | Interface / Power |
|---|---|---|---|---|---|
| SDP6150A | 100 MHz | 50X / 500X | ±1500 V DC + Peak AC | CAT III 600 V / CAT II 1000 V | SIGLENT SAPBUS interface, powered by oscilloscope |
| SDP6150D | 400 MHz | 100X / 1000X | ±1500 V DC + Peak AC | CAT III 600 V / CAT II 1000 V | SIGLENT SAPBUS interface, powered by oscilloscope |
| DPB6150A | 100 MHz | 50X / 500X | ±1500 V DC + Peak AC | 1000 V CAT III / 600 V CAT IV accessories | BNC output, external 5 V USB-C power supply |
| DPB6150D | 400 MHz | 100X / 1000X | ±1500 V DC + Peak AC | 1000 V CAT III / 600 V CAT IV accessories | BNC output, external 5 V USB-C power supply |
Items / Accessories Included with DPB6150A and DPB6150D
- 1 × high voltage differential probe
- 1 × 5 V / 1 A power adapter
- 1 × adapter set: American, British, Australian and European standard
- 1 × USB Type-C cable, 1 m
- 1 × accessory kit with 5 types of accessories
- 1 × probe packing box
- 1 × instruction manual
