Siglent SDG8000-Multi-Level SEQ option
The SDG8000-Multi-Level SEQ option transforms your SDG8000A into a powerful sequence and scenario engine. Create complex, multi-layered waveforms with precise control over timing, jumps, and playback behavior — ideal for advanced radar, communications, and automated test systems.
SDG8000-Multi-Level SEQ
Unlock the full power of multi-layer sequence and scenario playback on your SDG8000A Series Arbitrary Waveform Generator.
Advanced Multi-Layer Sequence Playback
The SDG8000-Multi-Level SEQ option unlocks the full potential of your SDG8000A Series Arbitrary Waveform Generator by enabling advanced multi-layer sequence and scenario playback. With this powerful upgrade, you can create highly complex, time-accurate waveforms using a three-level hierarchy: Segments → Sequences → Scenarios. This gives you unprecedented control over waveform timing, dynamic jumps, loops, and conditional playback behavior.
It is widely used in Radar & Electronic Warfare for realistic multi-target simulation, 5G/6G protocol testing, power device characterization, automated test systems, and quantum research. Whether you need to generate long-duration complex sequences or precisely timed waveform scenarios, the Multi-Level SEQ option delivers the flexibility and performance required for next-generation applications.
Key Benefits
What You Get

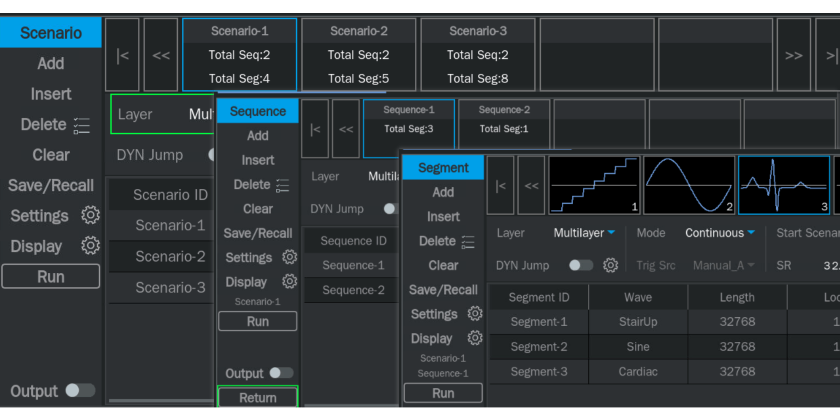

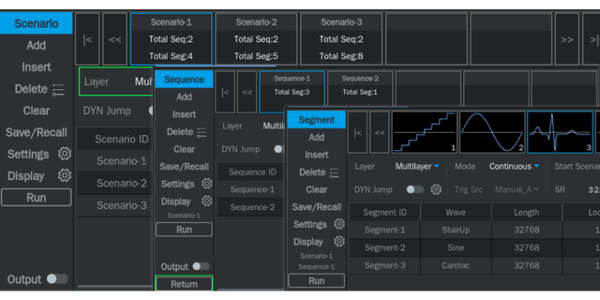

Segment → Sequence → Scenario
Build waveforms in three layers: individual segments, sequences of segments, and full scenarios made of multiple sequences.
Advanced Playback Control
Dynamic jump, conditional branching, loop control, and flexible trigger sources for real-time waveform behavior.
Long Duration Playback
With 4 Gpts memory, play complex multi-layer sequences for over 800 ms at full 12 GSa/s sampling rate.
Technical Specifications
| Feature | Specification |
|---|---|
| Sequence Layers | Segment → Sequence → Scenario (3-level hierarchy) |
| Maximum Sequences | Up to 4096 sequences per scenario |
| Jump Modes | Dynamic jump, conditional jump, manual jump, loop jump |
| Trigger Control | Internal, external, manual, bus trigger support |
| Memory Requirement | Recommended: 4 Gpts memory option for full capability |
| Editing Software | Built-in editor + PC software support |
Ideal For
Radar & Electronic Warfare • 5G/6G Protocol Testing • Power Device Characterization • Automated Test Systems • Quantum Research • Complex Signal Simulation
