Siglent SDG8000A-HSS High-speed serial waveform function option
The SDG8000A-HSS option adds advanced high-speed serial testing capabilities to your SDG8000A Series Arbitrary Waveform Generator. It supports PRBS generation up to 1.25 Gbps, eye diagram analysis, jitter injection, and high-speed serial protocol emulation — ideal for PCIe, USB, SATA, Ethernet, and other high-speed serial interface testing and validation.
SDG8000A-HSS
High-Speed Serial Testing Option for the SDG8000A Series Arbitrary Waveform Generator.
Advanced High-Speed Serial Testing
The SDG8000A-HSS option adds advanced high-speed serial testing capabilities to your SDG8000A Series Arbitrary Waveform Generator. It supports PRBS generation up to 1.25 Gbps, eye diagram analysis, jitter injection, and high-speed serial protocol emulation.
It is widely used for PCIe, USB, SATA, and Ethernet interface testing, high-speed serial validation, signal integrity analysis, jitter tolerance testing, and protocol emulation. The HSS option provides the tools needed for comprehensive high-speed serial interface development and validation.
Key Benefits
What You Get
PRBS Generation up to 1.25 Gbps
Generate pseudo-random binary sequences for comprehensive bit error rate testing.

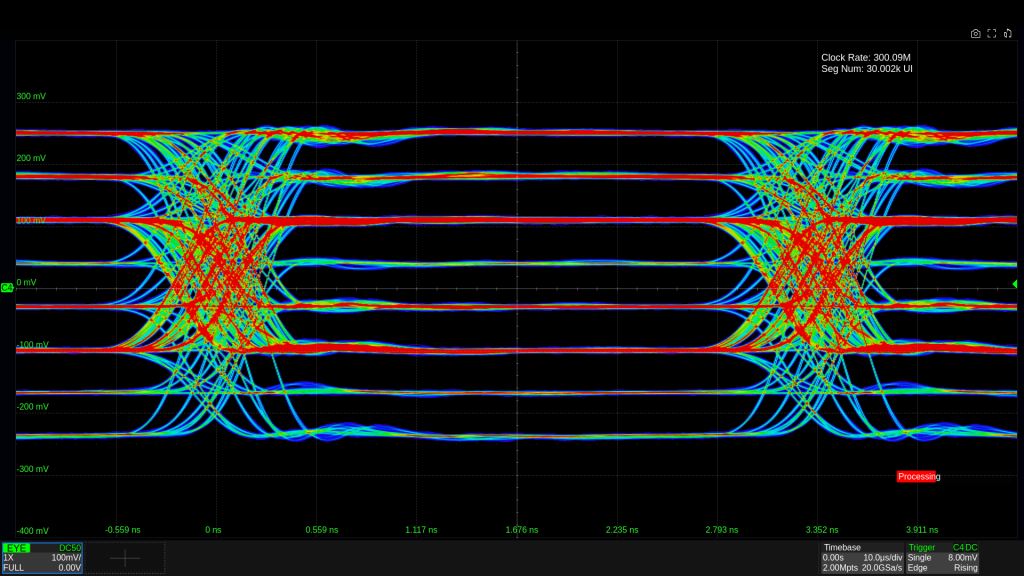

Eye Diagram & Jitter Tools
Built-in eye diagram generation, measurement, and programmable jitter injection.
High-Speed Protocol Support
Support for PCIe, USB 3.0/3.1, SATA, Ethernet, and custom high-speed serial protocols.
Technical Specifications
Ideal For
PCIe Testing • USB 3.0/3.1 Validation • SATA Interface Testing • Ethernet PHY Validation • High-Speed Serial Signal Integrity • Jitter Tolerance Testing
