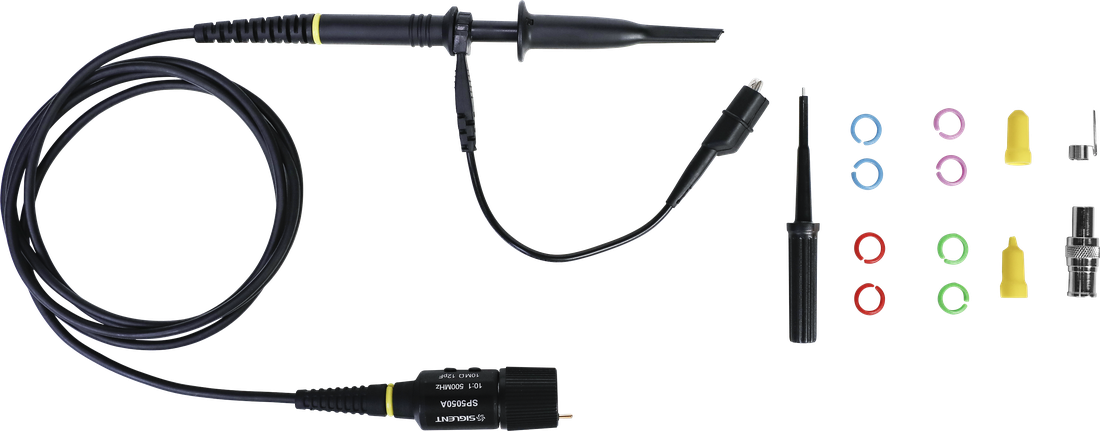

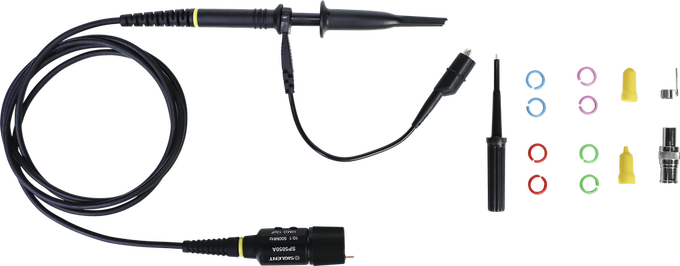

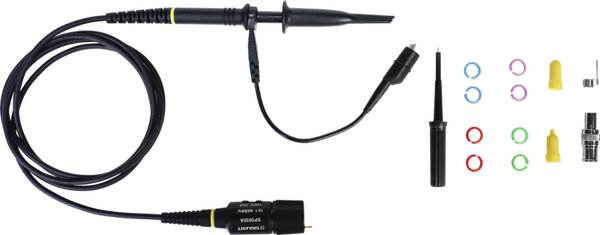

Siglent SP5050A 500 MHz Passive Oscilloscope Probe, 10X
Siglent SP5050A passive oscilloscope probe: 500 MHz, 10X, 12 pF, 10 MΩ, 300 V CAT II, 130 cm lead. Fits any oscilloscope.
500 MHz passive probe, 10X
The SP5050A is a 500 MHz 10X passive probe with 12 pF of tip capacitance and a 10 MΩ input — the sensible upgrade when the 100 or 200 MHz probe that came with your oscilloscope has become the limiting factor rather than the scope itself.
Rated 300 V RMS CAT II with a wide −10 to +55 °C operating range and a 130 cm lead. Compensation range is 12–22 pF, so it trims correctly against essentially any oscilloscope input. If your scope is faster than 2 GHz, take the SP3150A instead — it is specified for those front ends.
Key specifications
- Bandwidth 500 MHz
- 10X attenuation
- 10 MΩ input impedance
- 12 pF input capacitance
- Compensation range 12–22 pF
- 300 V RMS CAT II
- −10 °C to +55 °C operating range
- 130 cm cable · 55 g
Application examples
General bench work to 500 MHz
Digital logic, clocks and switching edges where a 100 or 200 MHz probe has started rounding the corners.
Replacing a worn or damaged probe
Probes are consumables. A cracked tip or a tired compensation trimmer costs you accuracy long before it stops working outright.
A second probe for the same channel count
Most scopes ship one probe per channel; a spare set means you are never short during a four-channel measurement.
Specifications
| Attenuation rate | 10X |
|---|---|
| Bandwidth | 500 MHz |
| Input impedance | 10 MΩ |
| Input capacitance | 12 pF |
| Compensation range | 12 pF – 22 pF |
| Input voltage | 300 V RMS CAT II |
| Operating temperature | −10 °C to +55 °C |
| Cable length | 130 cm |
| Weight | 55 g |
Specifications as published by SIGLENT. Errors and omissions excepted.
Other probes
Not sure this is the right probe?
Tell us what you are measuring, how fast it moves, how far it floats above earth and which oscilloscope you own. We will name the right probe — including when a cheaper one covers it.
