Siglent SP3150A 500 MHz Passive Probe for >2 GHz Oscilloscopes
Siglent SP3150A passive probe: 500 MHz, 10X, 11 pF, 400 V CAT II. Specified for oscilloscopes above 2 GHz — the SDS7000A probe.
500 MHz passive probe for >2 GHz oscilloscopes

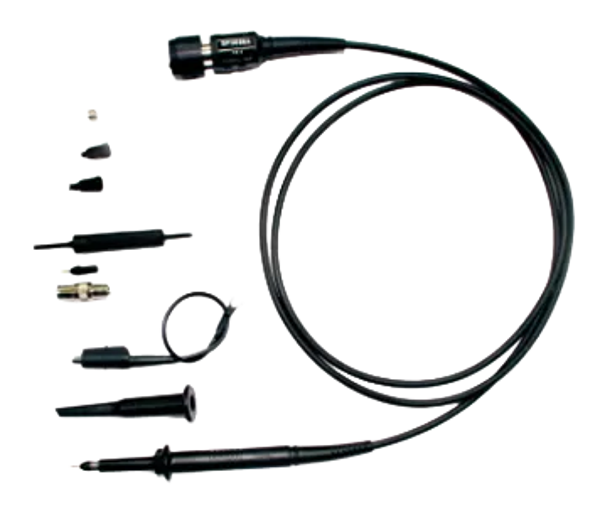

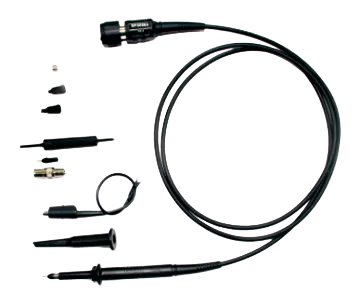

The SP3150A is a 500 MHz 10X passive probe specified for oscilloscopes with more than 2 GHz of bandwidth — the probe supplied with the SDS7000A, and the correct replacement or spare for it.
Electrically it is a low-capacitance 11 pF, 10 MΩ probe rated 400 V RMS CAT II, with a 120 cm lead. The distinction from the otherwise identical SP3050A is the front end it is characterised against: on a multi-gigahertz instrument, probe and input have to be specified as a pair.
Before you order
Not interchangeable with the SP3050A on paper. The two probes share their electrical specification, but the SP3150A is the one characterised for oscilloscopes above 2 GHz. On a fast front end, order this one.
Key specifications
- Bandwidth 500 MHz
- 10X attenuation
- 10 MΩ input impedance
- 11 pF input capacitance
- Compensation range 8–20 pF
- 400 V RMS CAT II
- Specified for oscilloscopes above 2 GHz
- 120 cm cable · 55 g
Application examples
Spare or replacement for the SDS7000A
This is the probe that ships with the SDS7000A. A flagship scope with a damaged probe is an expensive instrument waiting for a €109 part.
General probing on a multi-GHz scope
Where a passive probe is enough — supply rails, slower control signals, anything that does not need an active probe's 1 pF.
Building out channel count
Four channels need four probes. Keeping a spare set means a four-channel capture is never held up.
Specifications
| Attenuation rate | 10X |
|---|---|
| Bandwidth | 500 MHz |
| Input impedance | 10 MΩ |
| Input capacitance | 11 pF |
| Compensation range | 8 pF – 20 pF |
| Input voltage | 400 V RMS CAT II |
| Operating temperature | 0 °C to +50 °C |
| Cable length | 120 cm |
| Weight | 55 g |
| Compatibility | Specified for oscilloscopes with bandwidth above 2 GHz |
Specifications as published by SIGLENT. Errors and omissions excepted.
