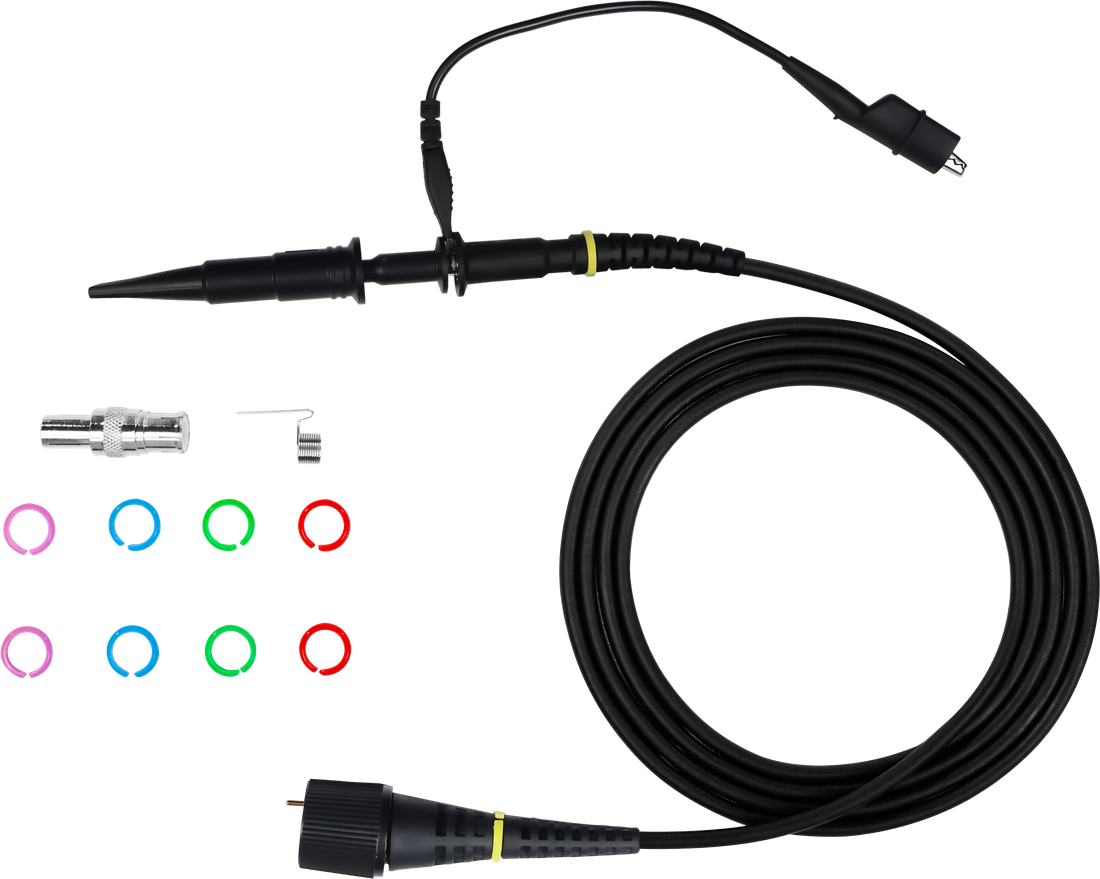

Siglent SP6150A 1.5 GHz Passive Probe, 10:1, 500 Ω
Siglent SP6150A passive probe: 1.5 GHz, 10:1, 500 Ω input, 1.8 pF, max 8.5 V. For terminated high-speed lines.
1.5 GHz passive probe, 10:1
At 1.5 GHz the SP6150A is the fastest passive probe Siglent make — three times the bandwidth of a conventional 500 MHz probe, and it gets there by working differently. Input capacitance is 1.8 pF, close to what an active probe achieves, at a fraction of the price.
The trade is the input resistance: 500 Ω, not 10 MΩ. This is a transmission-line probe, so it loads the circuit resistively and is meant for low-impedance, high-speed nodes — terminated lines, clock distribution, fast digital signalling. Maximum input is 8.5 V. It is emphatically not a general-purpose probe, and on a high-impedance node it will change what you are measuring.
Before you order
Read the input resistance before you order. 500 Ω is a real load. On a high-impedance node this probe will pull the signal down and give you a wrong answer — that is what the 10 MΩ passive probes and the active probes are for. Use it on driven, low-impedance lines.
Key specifications
- Bandwidth 1.5 GHz — the fastest passive probe in the range
- 10:1 attenuation ratio
- 500 Ω input resistance (transmission-line probe)
- 1.8 pF input capacitance — near active-probe territory
- Maximum input 8.5 V
- No power supply and no probe bus required
- Works with any oscilloscope
- A fraction of the cost of an active probe
Application examples
Terminated high-speed digital lines
50 Ω and other low-impedance environments, where a 500 Ω probe is a small enough load to be honest and 1.5 GHz is the point.
Clock and serial signalling
Fast edges on driven lines, where 1.8 pF of tip capacitance keeps the edge intact.
An affordable step before an active probe
When 500 MHz is not enough but a €869 SAP1000 is more than the job needs.
Specifications
| Bandwidth | 1.5 GHz |
|---|---|
| Attenuation ratio | 10:1 |
| Input resistance | 500 Ω |
| Input capacitance | 1.8 pF |
| Maximum input voltage | 8.5 V |
| Power | None — fully passive |
Specifications as published by SIGLENT. Errors and omissions excepted.
Other probes
Not sure this is the right probe?
Tell us what you are measuring, how fast it moves, how far it floats above earth and which oscilloscope you own. We will name the right probe — including when a cheaper one covers it.
