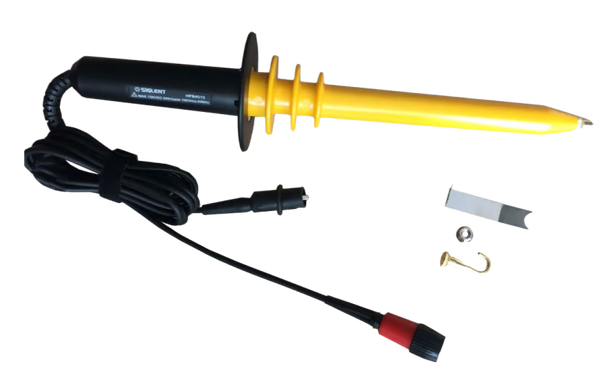

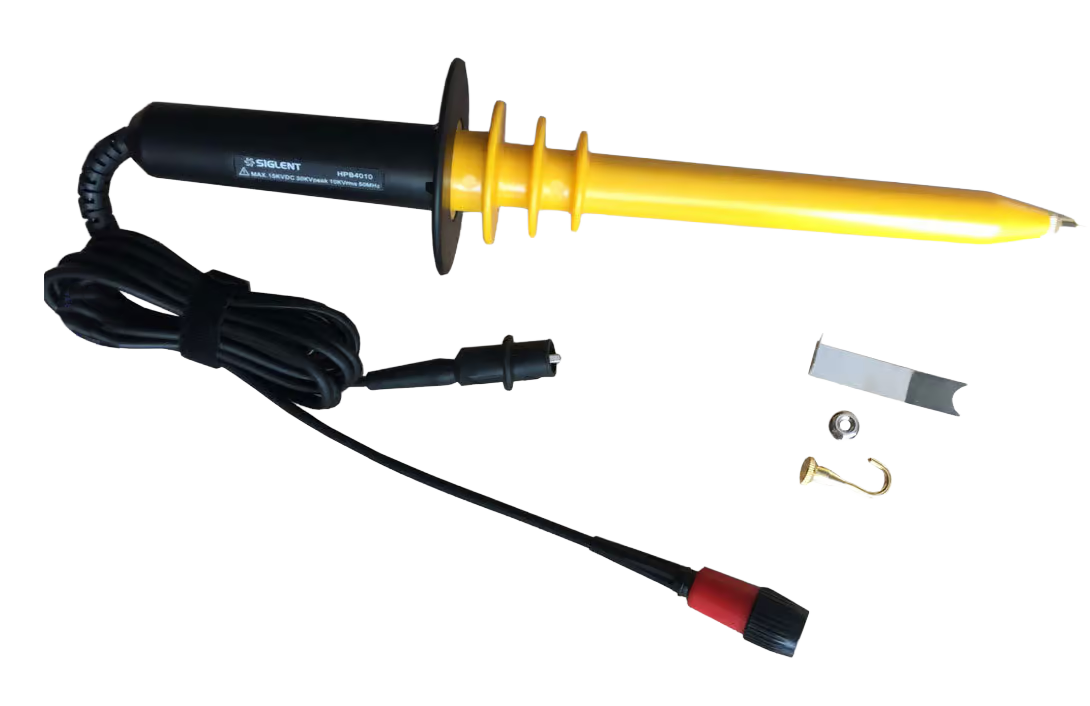

Siglent HPB4010 10 kV High-Voltage Probe, DC–40 MHz, 1:1000
Siglent HPB4010 high-voltage probe: 10 kV DC, 20 kV pulse, 7 kV RMS, DC–40 MHz, 1:1000, ±3%. Single-ended.
10 kV high-voltage probe, DC–40 MHz, 1:1000
The HPB4010 measures up to 10 kV DC — or 7 kV RMS sine, or 20 kV peak-to-peak pulse — on a standard oscilloscope input, at a 1:1000 attenuation ratio with ±3% accuracy and 40 MHz of bandwidth.
It is a single-ended probe: the return lead goes to the circuit’s ground reference, which must be at or near earth potential. For a floating or mains-referenced high-voltage measurement, use a differential probe instead. Where the ground is valid, this reaches voltages nothing else in the range touches — and does so at a fraction of the cost.
Before you order
This is a single-ended probe — its ground lead goes to earth-referenced ground. Do not use it across a floating or mains-referenced node. For those, use a differential high-voltage probe, which has no earth reference at its tips.
Key specifications
- Maximum 10 kV DC · 7 kV RMS sine · 20 kV peak-to-peak pulse
- Bandwidth DC–40 MHz, rise time ≤8.8 ns
- 1:1000 attenuation ratio
- ±3% accuracy DC and AC
- 100 MΩ ±5% input impedance · 3.0 pF
- Compensation range 5–50 pF
- 2 m cable
- 250 g · Ø75 × 340 mm
Application examples
High-voltage power supply development
Output and node voltages on supplies operating in the kilovolt range, where a 1000 V probe is nowhere near enough.
Ignition, plasma and X-ray equipment
Pulse amplitudes to 20 kV peak-to-peak with enough bandwidth to see the pulse shape rather than an envelope.
Electrostatic and insulation testing
High-voltage, low-current measurements where 100 MΩ of input impedance keeps the loading negligible.
CRT, tube and legacy equipment service
Anode and accelerator voltages that no ordinary probe can reach safely.
Specifications
| Bandwidth (−3 dB) | DC – 40 MHz |
|---|---|
| Rise time | ≤8.8 ns |
| Maximum measurement voltage | DC: 0–10 kV AC pulse: ≤20 kV peak-to-peak AC sine: ≤7 kV RMS |
| Attenuation ratio | 1:1000 |
| Accuracy | DC ±3% (DC to 10 kV) · AC ±3% (1 kHz / 1 kV RMS) |
| Signal-to-noise | ≥60 dB at 1 kHz · ≥50 dB at 1 MHz |
| Input impedance | 100 MΩ ±5% |
| Input capacitance | 3.0 pF ±0.5 pF |
| Compensation range | 5 pF – 50 pF |
| Temperature coefficient | ≤200 ppm/°C |
| Cable length | 2.0 m (±0.2 m) |
| Operating temperature | 0 °C to +50 °C · storage −20 °C to +70 °C |
| Weight / size | 250 g · Ø75 × 340 mm |
Specifications as published by SIGLENT. Errors and omissions excepted.
