Siglent SSG3000X PLUS-21BW32 Upgrade an SSG3021X PLUS to 3.2 ghz (software licence)
Siglent SSG3000X PLUS-21BW32: software key that upgrades an SSG3021X Plus RF signal generator from 2.1 GHz to 3.2 GHz. No hardware change.
SSG3000X Plus-21BW32 — upgrade an SSG3021X Plus to 3.2 GHz
A software key that raises the top frequency of an SSG3021X Plus from 2.1 GHz to 3.2 GHz — the full range of the SSG3032X Plus, on the instrument you already own.
The 2.1 and 3.2 GHz models share their hardware; the key unlocks the upper band. After activation the generator covers 9 kHz to 3.2 GHz with the same 0.01 Hz resolution, the same level range up to +20 dBm and the same modulation set. That takes in the 2.4 GHz ISM band with room above it for harmonic and out-of-band work.
It is the route for when requirements change after the purchase. If you are buying new and already know you need 3.2 GHz, the SSG3032X Plus is the cheaper way there — see the comparison below.
What the key adds
9 kHz to 3.2 GHz
The CW range of the SSG3032X Plus, including sweeps and lists across the whole band.
Full level range to the top
−110 to +20 dBm setting range holds from 1 MHz to 3.2 GHz; specified to +13 dBm.
Software only
Issued against the serial number; no hardware change, no return to the factory, no recalibration.
Any time after purchase
Buy the 2.1 GHz model now and decide later — at a price, see below.
Which instrument it is for
For the SSG3021X-IQE Plus use the SSG3000X-IQE Plus-21BW32 key instead; the 3.2 GHz models need no key.

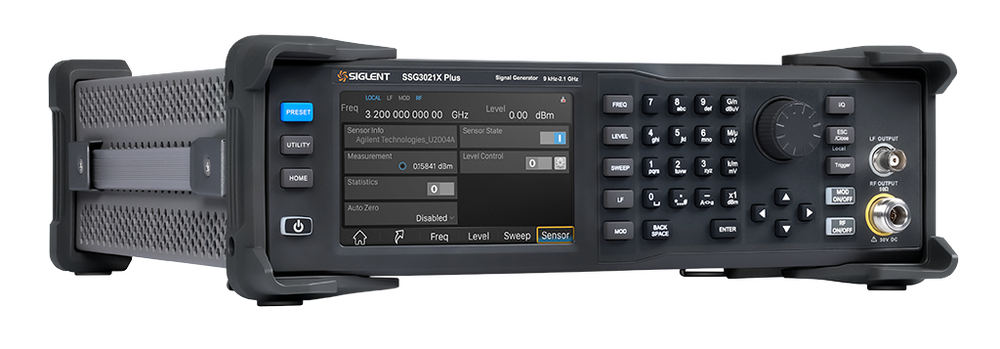

This key is for the SSG3021X Plus. The IQE model takes the SSG3000X-IQE Plus-21BW32, and the earlier SSG3021X (without Plus) takes the SSG3000X-21BW32. The codes are not interchangeable.
Upgrading later costs more than buying 3.2 GHz now
| SSG3021X Plus + this key | €1,999 + €1,999 = €3,998 |
| SSG3032X Plus bought outright | €3,499 |
| Difference | €499 more via the upgrade |
Prices ex VAT. The key exists for a requirement that changes after the purchase, not as a way to spread the cost.
Specification
| Applies to | SSG3021X Plus |
| Frequency range before | 9 kHz – 2.1 GHz |
| Frequency range after | 9 kHz – 3.2 GHz |
| Level setting range, 1 MHz – 3.2 GHz | −110 dBm to +20 dBm (specified to +13 dBm) |
| Phase noise at 3 GHz, 20 kHz offset | < −107 dBc/Hz (−110 dBc/Hz typ.) |
| Delivery | Licence key for the instrument’s serial number |
From the SSG3000X Plus data sheet EN01A and Siglent’s price list.
How it is delivered
1 · Send us the serial number
A software key is generated for one instrument. Add the serial number to the order, or mail it afterwards.
2 · Receive the key
The licence key is delivered by e-mail — nothing is shipped and nothing leaves your bench.
3 · Enter it on the instrument
Enter the key in the generator’s option menu; the function is available immediately and stays with that unit.
Questions about the SSG3000X Plus-21BW32
Is it cheaper to buy the 2.1 GHz model and upgrade?
No. SSG3021X Plus plus this key comes to €3,998; the SSG3032X Plus costs €3,499 — €499 less. The key is for when the need for 3.2 GHz arrives after the purchase.
Does the hardware change?
No. It is a software key; the instrument stays on your bench and keeps its calibration.
Is the performance identical to an SSG3032X Plus afterwards?
The data sheet gives one set of specifications for the series, with the frequency range as the only difference between the two models.
Does it fit the SSG3021X-IQE Plus?
No — that model has its own key, SSG3000X-IQE Plus-21BW32, which also extends the IQ mode.
What do you need from me?
The serial number of the instrument. The key is generated for that unit only.
Not sure which key your generator takes?
Send us the model name and serial number. We will confirm the right order code — Plus or not, IQE or not — before anything is ordered.
