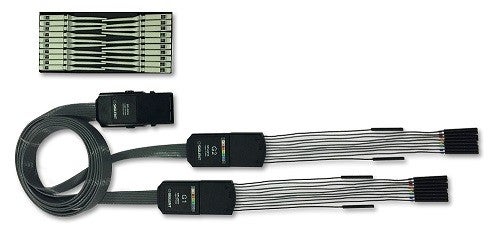

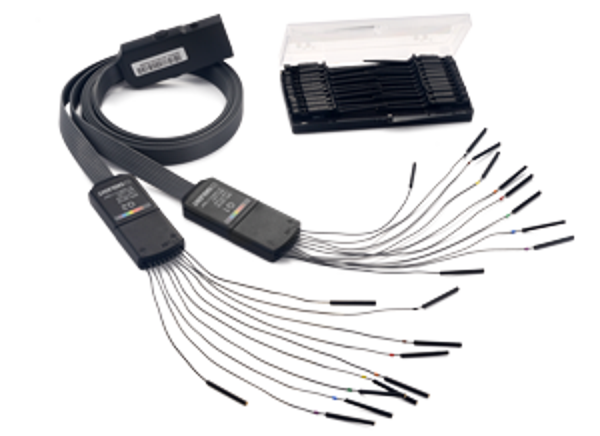

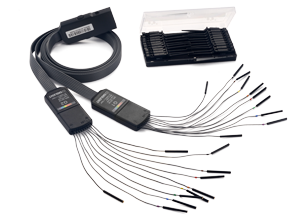

Siglent SDS6000A SPL2016 16 Channel logic probe module with license key
€749.00
Siglent SDS6000A SPL2016 16 Channel logic probe module with SDS6000Pro-16LA license key for SDS6000A Series Oscilloscopes.
| Parameters : | SPL2016 |
|---|---|
| Channels | 16 |
| Input Impedance | 100 KΩ||8 pF |
| Max. Input Voltage | ±50 V peak |
| Threshold Groupings | Pod 2: D15-D8 Pod 1: D7-D0 |
| Threshold Selections | TTL (1.5 V), COMS (2.5 V), 3.3 V_LVCOMS (1.65 V), 2.5 V_LVCOS (1.25 V) |
| User defined threshold range | ±3 V in 10 mv steps |
| Threshold Accuracy | ±（3%*Threshold+200 mv） |
| Input Dynamic Range | ±20 V |
| Min. Input Voltage Swing | 800 mVpp |
| Max. Input Frequency | Probe: 150 MHz Line: 50 MHz |
| Min. Detectable Pulse Width | 3.3 ns |
| Channel Skew | ±(1 digital sample interval) |
