Siglent SDS2104X HD 12-bit 100MHz Oscilloscope
The siglent SDS2104X HD is a 100MHz bandwidth high resolution digital storage oscilloscope that is based on 2 GSa/s sample rate and 12-bit Analog-Digital Convertor front ends w excellent noise floor performance.
SDS2104X HD — 100 MHz, 4 channels, 12-bit
The SDS2104X HD is the 100 MHz model of Siglent’s mid-range SDS2000X HD series — a 4-channel, 12-bit oscilloscope that brings high-resolution acquisition and a full analysis toolset to a real-world bench budget. Its 12-bit ADC and low-noise front end resolve small signals, ripple and subtle distortion that an 8-bit scope buries in quantisation noise.
Performance backs up the resolution: 2 GSa/s sampling, up to 200 Mpts of memory and a 100,000 wfm/s capture rate, on a 10.1" capacitive multi-touch display. Built-in Bode plot, power analysis and 2 Mpts FFT, plus an optional 16-channel MSO and built-in 25 MHz generator, make it a complete bench — and its bandwidth is license-upgradable up to 500 MHz, so the instrument grows with your work.
Analysis tools built in
Far more than a scope — loop measurement and power analysis run directly on the instrument.
Bode Plot II — loop response on the scope
Connect a Siglent SDG generator (or the SAG1021 module) over USB or LAN and the scope takes over: it sweeps the stimulus through your injection transformer, measures both sides of the injection resistor, and plots loop gain and phase against frequency — with phase margin and gain margin read out automatically. The Vari-Level profile lowers the stimulus amplitude around the crossover region so a sensitive loop is never overdriven, and the result exports as CSV for the design report. The same engine characterises filters and amplifiers: magnitude and phase response in one automated pass, no frequency-response analyzer required.
Power analysis — a power-electronics workbench
The SDS2000HD-PA licence turns captures into power numbers: power quality and line-current harmonics, inrush current, switching loss with turn-on/turn-off energies, dv/dt and di/dt slew rates, modulation analysis, output ripple and safe-operating-area testing against your device limits. Paired with a differential voltage probe and a current probe (deskewed with the DF2001A fixture), the 12-bit resolution pays off exactly where power measurement hurts most — resolving millivolt ripple and switching detail on top of large swings, so efficiency and loss figures are built on honest waveforms.
12-bit high resolution
A true 12-bit ADC reveals fine detail, small signals and low-level ripple with far less quantisation noise than an 8-bit scope.
Built-in waveform generator
An optional built-in 25 MHz arbitrary/function generator adds stimulus without an extra box on the bench.
Key features
- 12-bit ADC — 16x the vertical resolution of an 8-bit scope, on a 70 uVrms low-noise front end with 0.5% DC gain accuracy
- 100 MHz bandwidth on 4 analog channels + EXT — licence-upgradable up to 500 MHz as your designs get faster
- 2 GSa/s sampling with up to 200 Mpts memory — long captures at full sample rate and resolution
- 100,000 wfm/s capture rate (500,000 in sequence mode) · History & Zone trigger to isolate rare events
- Serial trigger & decode standard: I2C, SPI, UART, CAN, LIN — options incl. CAN FD/XL, FlexRay, I2S, MIL-STD-1553B, SENT
- Built-in Bode Plot II (loop response) and power-analysis option — a power-electronics workbench on the scope
- 10.1" multi-touch display · full web control over LAN · mouse & keyboard support · SCPI automation
- MSO-ready with the SPL2016 16-channel logic probe · optional built-in 25 MHz arbitrary generator
Application examples
Embedded bring-up and debug
Four analog channels plus standard I2C/SPI/UART/CAN/LIN decode cover a small board end to end: watch the rail, the reset line and two buses in one acquisition, with 12-bit resolution exposing the glitches an 8-bit scope rounds off. Add the SPL2016 logic probe when the digital side grows.
Power-rail and ripple measurements
With 70 uVrms of front-end noise and 12 bits of resolution, millivolt ripple on a 3.3 V rail is measured, not guessed. Bode Plot II drives a Siglent generator to plot loop response and PSRR directly on the scope.
Education and research labs
Touch operation, web control for remote teaching, and a full analysis toolset (FFT, mask test, histograms) at the entry price of the 12-bit mid-range — with 200 Mpts of memory for real experiments, not textbook snippets.
A bench that grows
Start at 100 MHz today; a software licence takes the same instrument to 200, 350 or 500 MHz later. The MSO, AWG and decode options install the same way — no hardware swap, no recalibration downtime.
Service and repair work
History mode replays the acquisitions leading up to a fault, deep memory holds long stretches of a misbehaving signal, and the built-in DVM and counter give quick numeric answers — while standard decode reads out the buses of the board on the bench.
Specifications
| Analog bandwidth | 100 MHz (upgradable to 500 MHz) |
| Analog channels | 4 + EXT |
| Vertical resolution | 12-bit |
| Max. sample rate | 2 GSa/s (interleaved) · 1 GSa/s per channel |
| Max. record length | 200 Mpts (interleaved) · 100 Mpts per channel |
| Waveform capture rate | 100,000 wfm/s (normal) · 500,000 wfm/s (sequence) |
| Display | 10.1" capacitive multi-touch (1024×600) |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/Hold, Delay, Serial |
| Serial decode (standard) | I²C, SPI, UART, CAN, LIN |
| Serial decode (optional) | CAN FD/XL, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, SpaceWire |
| Measurement | 60+ parameters · statistics, histogram, trend & track |
| Math | 4 traces · 2 Mpts FFT · formula editor |
| Analysis tools | Search, Navigate, History, Mask Test, DVM, Counter, Waveform Histogram, Bode Plot, Power Analysis |
| MSO (optional) | 16 digital channels (SPL2016) · up to 500 MSa/s · 50 Mpts |
| Waveform generator (optional) | Built-in 25 MHz · 125 MSa/s · 16 kpts (SDS2000HD-FG) |
| Connectivity | USB 2.0 Host ×3 · USB 2.0 Device · 10/100M LAN · Ext trigger · web control |
| Standard probes | One 500 MHz passive probe per channel |
From the official SDS2000X HD datasheet; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your SDS2104X HD.
Optional accessories & license keys
Expand your SDS2104X HD with logic-analysis hardware, probes and software activations.
SPL2016 16-channel logic probe with MSO activation — adds 16 digital channels at up to 500 MSa/s.
Spare 500 MHz passive probes and active / high-speed probes for every channel.
HPB4010 high-voltage passive, SDP6150A / SDP6150D and DPB-series differential probes.
Cables, cases, calibration kits and more for your instrument.
License keys & bandwidth upgrades
Software activations for the SDS2104X HD — click Buy to open the licence in the shop. See all SDS2000X HD licenses & options.
| License / upgrade | Order number | Price | Shop |
|---|---|---|---|
| Bandwidth upgrade — 100 MHz → 200 MHz | SDS2000HD-BW1T2 | €960.00 | Buy |
| Bandwidth upgrade — 100 MHz → 350 MHz | SDS2000HD-BW1T3 | €2,260.00 | Buy |
| Bandwidth upgrade — 100 MHz → 500 MHz | SDS2000HD-BW1T5 | €3,660.00 | Buy |
| Built-in 25 MHz function generator | SDS2000HD-FG | €228.00 | Buy |
| MSO 16-channel function license | SDS2000HD-16LA | €238.00 | Buy |
| Power analysis | SDS2000HD-PA | €338.00 | Buy |
| CAN FD trigger & decode | SDS2000HD-CANFD | €258.00 | Buy |
| FlexRay trigger & decode | SDS2000HD-FlexRay | €258.00 | Buy |

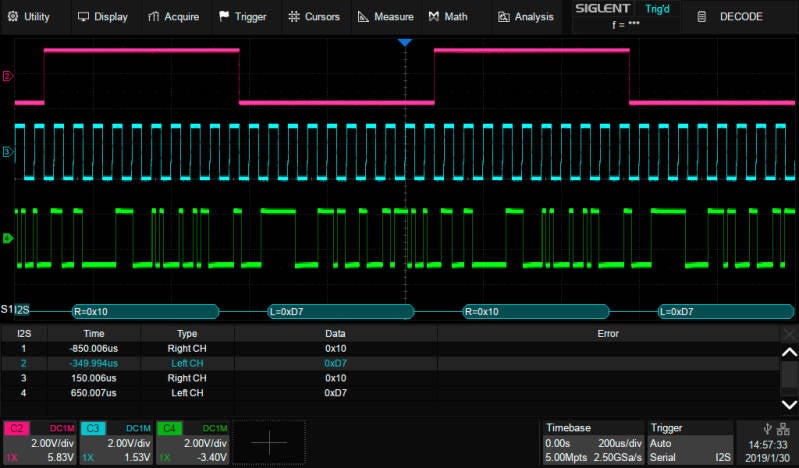

| I²S trigger & decode | SDS2000HD-I2S | €258.00 | Buy |
| MIL-STD-1553B decode | SDS2000HD-1553B | €258.00 | Buy |
| SENT decode | SDS2000HD-SENT | €258.00 | Buy |
| Manchester decode | SDS2000HD-Manch | €258.00 | Buy |
Prices subject to change. Bandwidth upgrades shown are those available from this model’s 100 MHz base.
