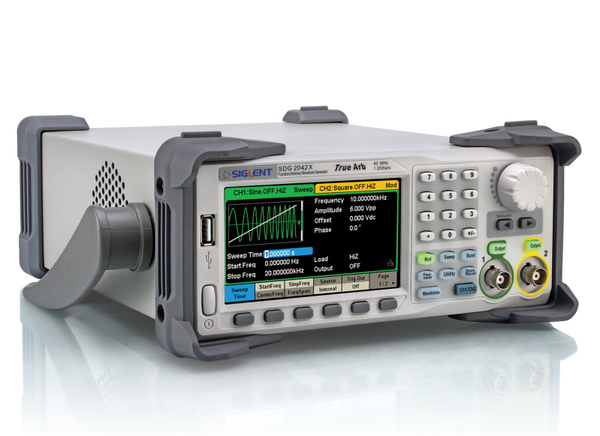

Siglent SDG2042X 40MHz Function / Arbitrary Waveform Generator

€475.00

SIGLENT’s SDG2042X is a dual-channel function/arbitrary waveform generators with specifications of up to 40 MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution.

The SIGLENT SDG2042X is a dual-channel function/arbitrary waveform generator with a 40 MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2042X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Excellent Analog Channel Performance

TrueArb Technology Architecture

With SIGLENT’s TrueArb technology, the generator retains the advantages of DDS technology while overcoming the serious weaknesses of DDS jitter and distortion. Because TrueArb technology generates arbitrary waveform in a point-by-point fashion, every data point is used to generate the output signal which has been stored in memory. Date points will not missed or repeated and arbitrary waveforms possess very low jitter (< 150ps).

Key Features:

  • Dual-channel, 40MHz maximum bandwidth, 20Vpp maximum
  • output amplitude, high fidelity output with 80dB dynamic range
  • High-performance sampling system with 1.2GSa/s sampling rate
    and 16-bit vertical resolution. No detail in your waveforms will be
    lost
  • Innovative TrueArb technology, based on a point-by-point
    architecture, supports any 8pts~8Mpts Arb waveform with a
    sampling rate in range of 1μSa/s~75MSa/s
  • Innovative EasyPulse technology, capable of generating lower
    jitter Square or Pulse waveforms, brings a wide range and
    extremely high precision in pulse width and rise/fall times
    adjustment
  • Plenty of analog and digital modulation types: AM、DSB-AM、
    FM、PM、FSK、ASK、PSK and PWM
  • Sweep and Burst function

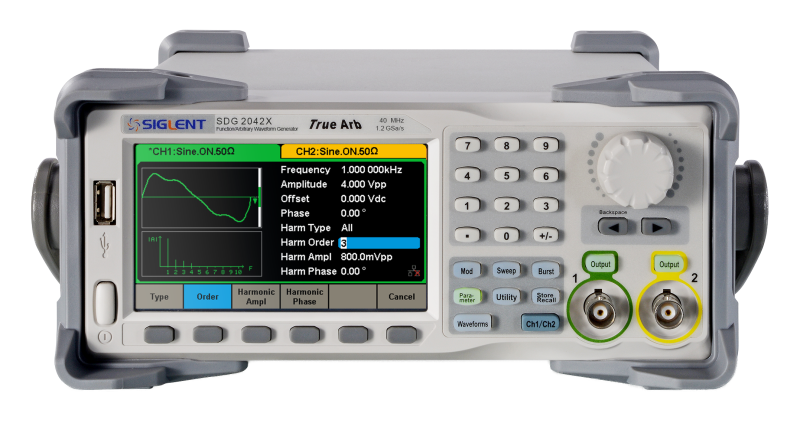

  • Harmonic function
  • 196 built-in arbitrary waveforms
  • High precision Frequency Counter

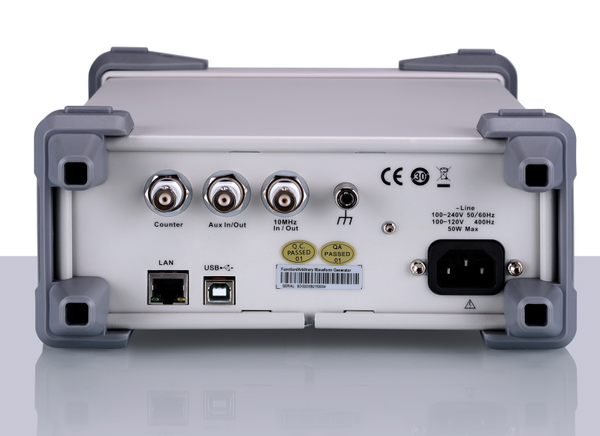

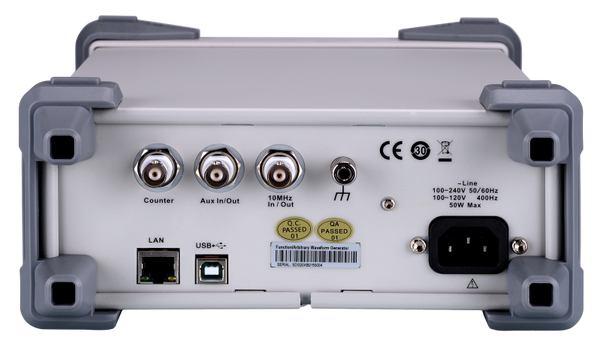

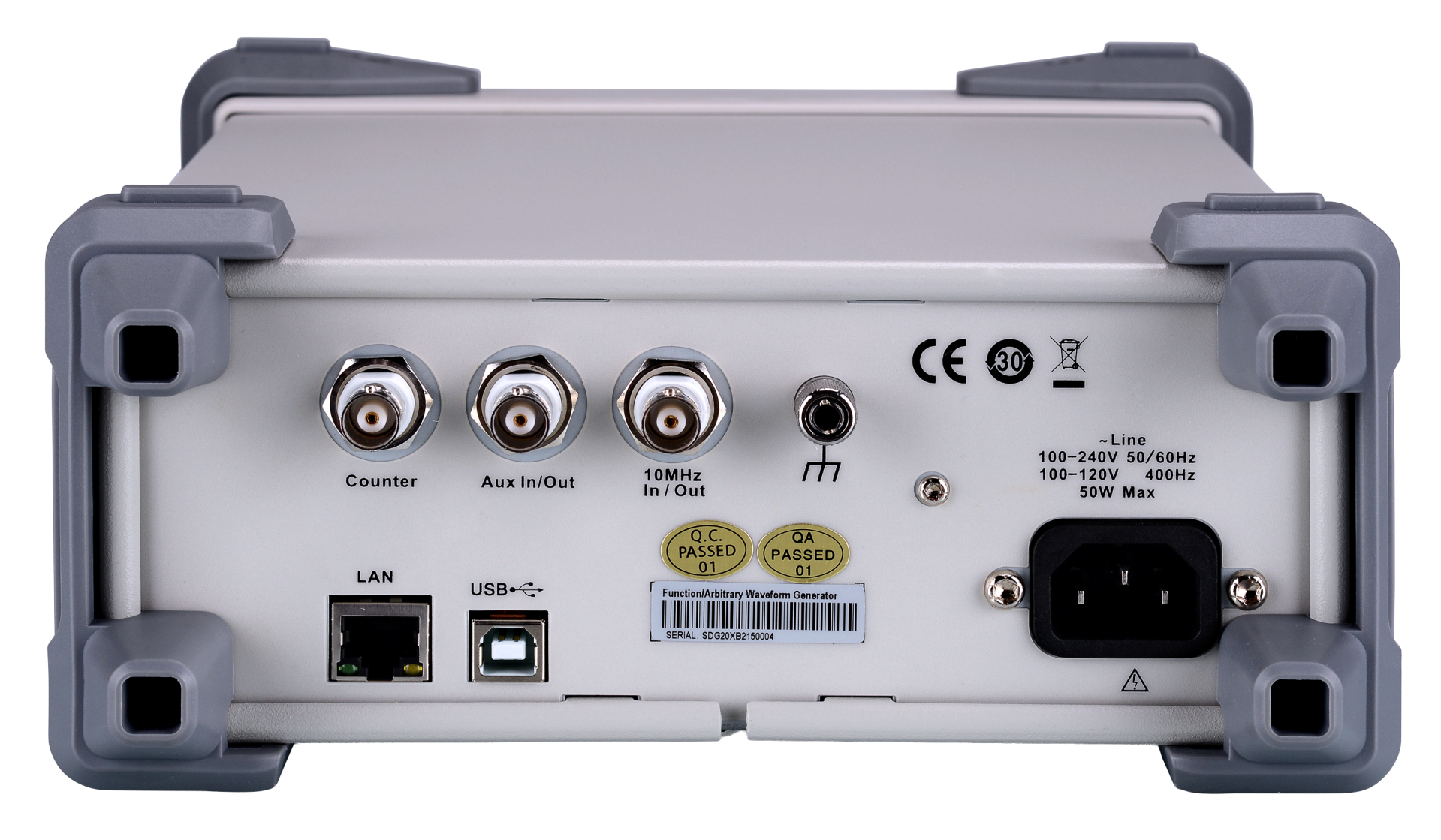

  • Standard interfaces: USB Host, USB Device(USBTMC), LAN
    (VXI-11)
  • Optional interface: GPIB
  • 4.3” touch screen display for easier operation

High-performance Sampling System

Benefiting from a 1.2GSa/s and 16-bit sampling system, SDG2000X achieves extremely high accuracy performance in both time domain and amplitude, which results
in more accurately reconstructed waveforms and lower distortion.

Innovative EasyPulse Technology

When a Pulse waveform is generated by a common DDS generator, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG1000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Pulse waveforms.

Innovative TrueArb Technology

For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion.

The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2042X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Product Model SDG2042X SDG2082X SDG2122X
Bandwidth 40MHz 80 MHz 120 MHz
Sampling rate 1.2 GSa/s 1.2 GSa/s 1.2 GSa/s
Vertical resolution 16 bit 16 bit 16 bit
Num. of channels 2 2 2
Max. amplitude ±10V ±10V ±10V
Display 4.3” touch screen display , 480 x 272 x RGB 4.3” touch screen display, 480 x 272 x RGB 4.3” touch screen display, 480 x 272 x RGB
Interface Standard: USB Host, USB Device, LAN USB Host, USB Device, LAN USB Host, USB Device, LAN
Optional: GPIB (USB-GPIB adaptor) GPIB (USB-GPIB adaptor) GPIB (USB-GPIB adaptor)

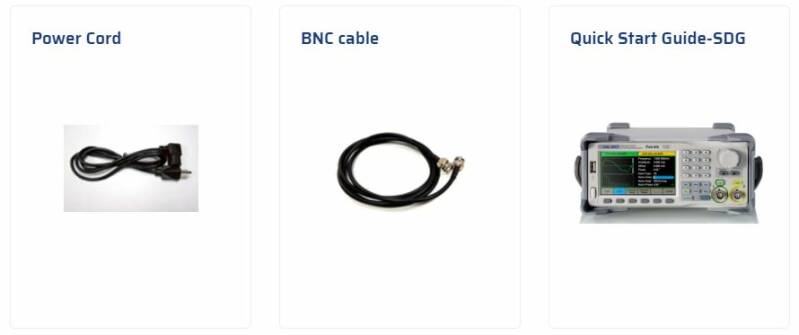

Accessoires Included:

1 x Siglent SDG2042X Arbitrary Function Generator
1 x USB Cable
1 x BNC to BNC Cable
1 x Guarantee Card
1 x Power Cord
1 x Quick Start Guide

Optional Accessoires:

SDG2000X User Manual
PDF – 2,7 MB 3622 downloads
SDG2000X Series Data Sheet
PDF – 3,3 MB 3905 downloads
SDG Programming Guide
PDF – 3,3 MB 2453 downloads
SDG2000X Service Manual
PDF – 1,4 MB 2159 downloads
