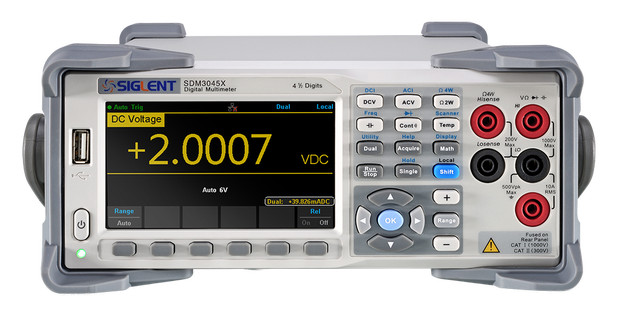

Siglent SDM3045X 4 1/2 Digits Dual-Display Digital Multimeter
The Siglent SDM3045X is the proof that a real bench multimeter no longer needs a mid-range budget. For the price of a good handheld you get 60,000 counts on a 4.3-inch dual display, True-RMS AC measurement, and the complete bench function set: DC and AC voltage and current, two- and four-wire resistance, capacitance, frequency, continuity, diode test and thermocouple temperature. The dual display earns its keep daily — watch a DC level and its AC ripple, or a voltage and its frequency, without switching modes.
SDM3045X — 4½ digit bench multimeter
The SDM3045X is the affordable route to a true bench multimeter: 4½ digits, 60,000 counts and True-RMS AC on a bright dual display. It replaces a drawer full of handhelds with lab-grade repeatability, a full function set and USB remote control.

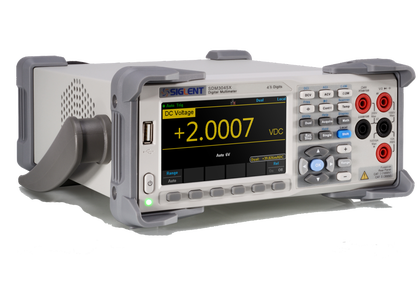

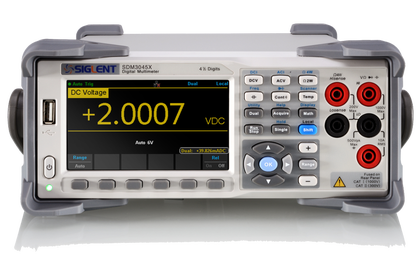

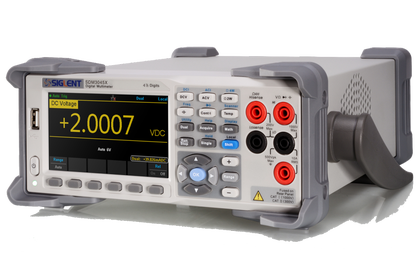

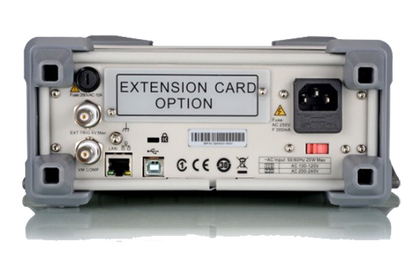

Every angle
The SDM3045X up close.
More than the numbers
Dual display, full function set
Show two readings of one signal at once — DC level with AC ripple, voltage with frequency. True-RMS AC, 2/4-wire resistance, capacitance, temperature and more are all built in.

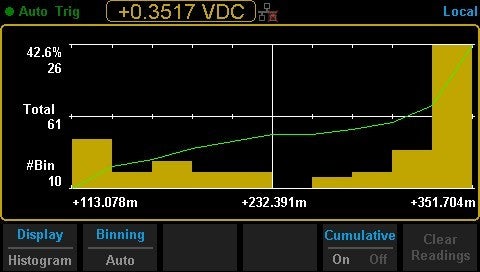

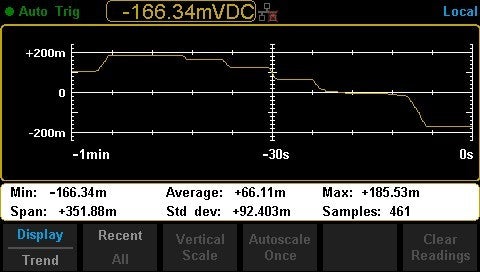

Analysis on the instrument
Statistics, histogram, trend chart, limit testing and dB/dBm maths run directly on the meter — and EasyDMM on the PC adds configuration, logging and export over USB or LAN.
Who it’s for & best applications
- Education & training labs
- Service & repair benches
- Makers and home labs
- Production go/no-go testing
- Everyday voltage/current/resistance checks
- Continuity & diode testing on the bench
- Basic data logging over USB
- Teaching measurement fundamentals
Specifications
| Resolution | 4½ digit · 60,000 counts |
| Basic DCV accuracy | 0.06% |
| Max. reading rate | 150 rdgs/s |
| Display | 4.3" TFT dual display |
| Measurement functions | DCV/ACV (True-RMS) · DCI/ACI · 2/4-wire resistance · capacitance · frequency/period · continuity · diode · temperature (TC/RTD) |
| Math & analysis | Statistics · limits · dBm/dB · relative · histogram/trend |
| Connectivity | USB Device · USB Host · LAN · SCPI remote control |
| PC software | EasyDMM — configuration, logging & export |
From the official SDM3045X datasheet; subject to change, errors & omissions excepted.

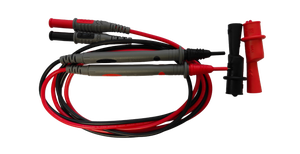

In the box
Everything included as standard with your SDM3045X.
Accessories & related
Useful additions for the SDM3045X bench.
Compare the full SDM range
4½ to 6½ digit, with or without scanner card — see all models side by side, or ask us for advice.
