Siglent SHS820 200MHz Handheld Digital Oscilloscope


Siglent SHS820 200MHz Handheld Digital Oscilloscope

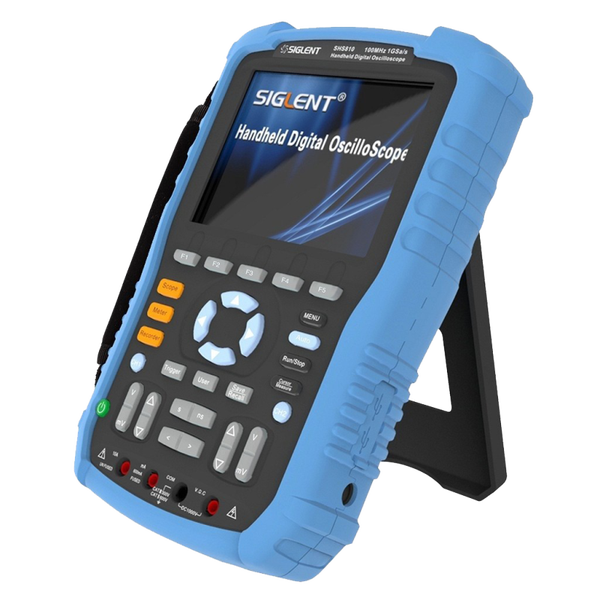

The Siglent SHS820 dual channel handheld oscilloscope provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions all in one package.

High performance oscilloscope

Channel math functions include add, subtract, multiply, divide, FFT.
Digital filter functions: LP, HP, BP, BR

Comparison of edge adjusting range under 1KHz pulse signal

EasyPulse edge adjustment has a wide range, while ordinary DDS pulse edge adjustment is limited.

Key Features:

  • High precision multimeter

    • 6000 count display
    • Accurate measurement of DCV, ACV, DCI, ACI
    • Accurate measurement of Resistance, Diode, Capacitance, Continuity

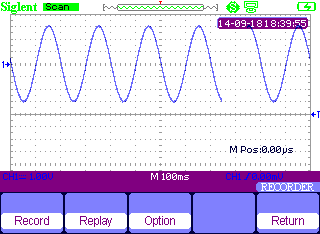

    Trend plot

    • 32 measurement trend plot analyzer
    • Scope: 800 k points capacity, more than 24 hours recording time
    • Meter: 1.2 M points capacity 9320 hours recording time at 0.05 Sa/s

Digital multimeter

3 1/2 digit display.

  1. Measures DCV, ACD, DCI, ACI, Resistance, Diode Test, Capacitance, Continuity

Accessoires Included:

1 x Siglent SHS820 Handheld Oscilloscope

2 x 200 MHz Oscilloscope probes
1 x Multimeter probes set
1 x Power adapter / charger
1 x USB Cable
1 x Quick Start Guide

Models: SHS806 SHS810 SHS820
Bandwidth 60MHz 100MHz 200MHz
Rise Time ≤5.8ns ≤3.5ns ≤1.7ns
Input Impedance 1MΩ±2%, 18pf±3pf Input Impedance Input Impedance
Real Time Sampling Rate Single Channel: 1GSa/s, Real Time Sampling Rate Real Time Sampling Rate
Double Channels: 500MSa/s 500MSa/s Double Channels: 500MSa/s Double Channels: 500MSa/s
Equivalent Sampling Rate 50GSa/s Equivalent Sampling Rate Equivalent Sampling Rate
Time Base Range 5 ns/ div – 50s/ div 2.5 ns/ div – 50s/ div 5 ns/ div – 50s/ div
Scan Range 100ms/ div ~ 50s/ div Scan Range Scan Range
Vertical Sensitivity 2mV/div – 100V/div(1-2-5 step) Vertical Sensitivity Vertical Sensitivity
Vertical Resolution 8 bits Vertical Resolution Vertical Resolution
Trigger Types Edge, Pulse, Video, Slope, Alternative Trigger Types Trigger Types
Frequency Counter 6 bits Frequency Counter Frequency Counter
Connection USB Device, USB Host Connection Connection
Math +, -, * , /, FFT Math Math
Oscilloscope Trend Plot 800K points Oscilloscope Trend Plot Oscilloscope Trend Plot

Optional Accessoires:

SHS800 User Manual
PDF – 1.2 MB 311 downloads
SHS800 Data Sheet
PDF – 462.1 KB 294 downloads
SHS800 Series Performance Verification
PDF – 276.5 KB 199 downloads
