Siglent SHS1102 100MHz Handheld Digital Oscilloscope

€1,399.00
Siglent SHS1102 100MHz Handheld Digital Oscilloscope
Sold out

Siglent’s SHS1102 100MHz Dual Channel with Isolated inputs handheld digital oscilloscopes take advantage of years of SIGLENT research and development. It adopts many dedicated integrated circuits which allows for a simpler layout, low power consumption and a very small footprint.

High performance oscilloscope

Channel math functions include add, subtract, multiply, divide, FFT.
Digital filter functions: LP, HP, BP, BR

Comparison of edge adjusting range under 1KHz pulse signal

EasyPulse edge adjustment has a wide range, while ordinary DDS pulse edge adjustment is limited.

Key Features:

  • 1 GSa/s real time sampling rate, 50 GSa/s equivalent sampling rate
  • Equipped with a high precision multimeter (DCV/I, ACV/I, continuity, and more)
  • 3 kinds of cursor modes, 32 automatic waveform measurements
  • 5.7 inches color TFT-LCD
  • Supports trend plotting and long-duration data recorder function

Digital multimeter

3 1/2 digit display.

  1. Measures DCV, ACD, DCI, ACI, Resistance, Diode Test, Capacitance, Continuity

Accessoires Included:

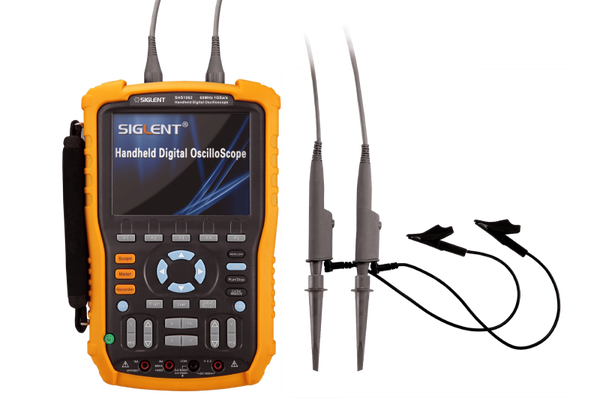

1 x Siglent SHS1102 Handheld Oscilloscope

2 x 100 MHz Oscilloscope probes
1 x Multimeter probes set
1 x Power adapter / charger
1 x USB Cable
1 x Quick Start Guide

Models: SHS1062 SHS1102
Bandwidth 60MHz 100MHz
Channels 2 2
Real Time Sampling Rate 1 GSa/s 1 GSa/s
Multimeter voltage, current, resistance. etc 8 regular functions voltage, current, resistance. etc 8 regular functions
Isolation Level 1000 V CAT II, 600 V CAT III 1000 V CAT II, 600 V CAT III
Memory Depth 2 Mpts 2 Mpts

Optional Accessoires:

SHS1000 User Manual
PDF – 1,2 MB 374 downloads
SHS1000 Data Sheet
PDF – 614,4 KB 379 downloads
SHS1000 Series Performance Verification
PDF – 272,0 KB 265 downloads
