Siglent S06-NMSF-1M N(M)-SMA(F) RF Cable DC-6 GHz 1M
N(M) to SMA(F) coaxial test cable, DC-6 GHz, 1000 mm. Connects N-port analysers to SMA devices
N male to SMA female, specified to 6 GHz

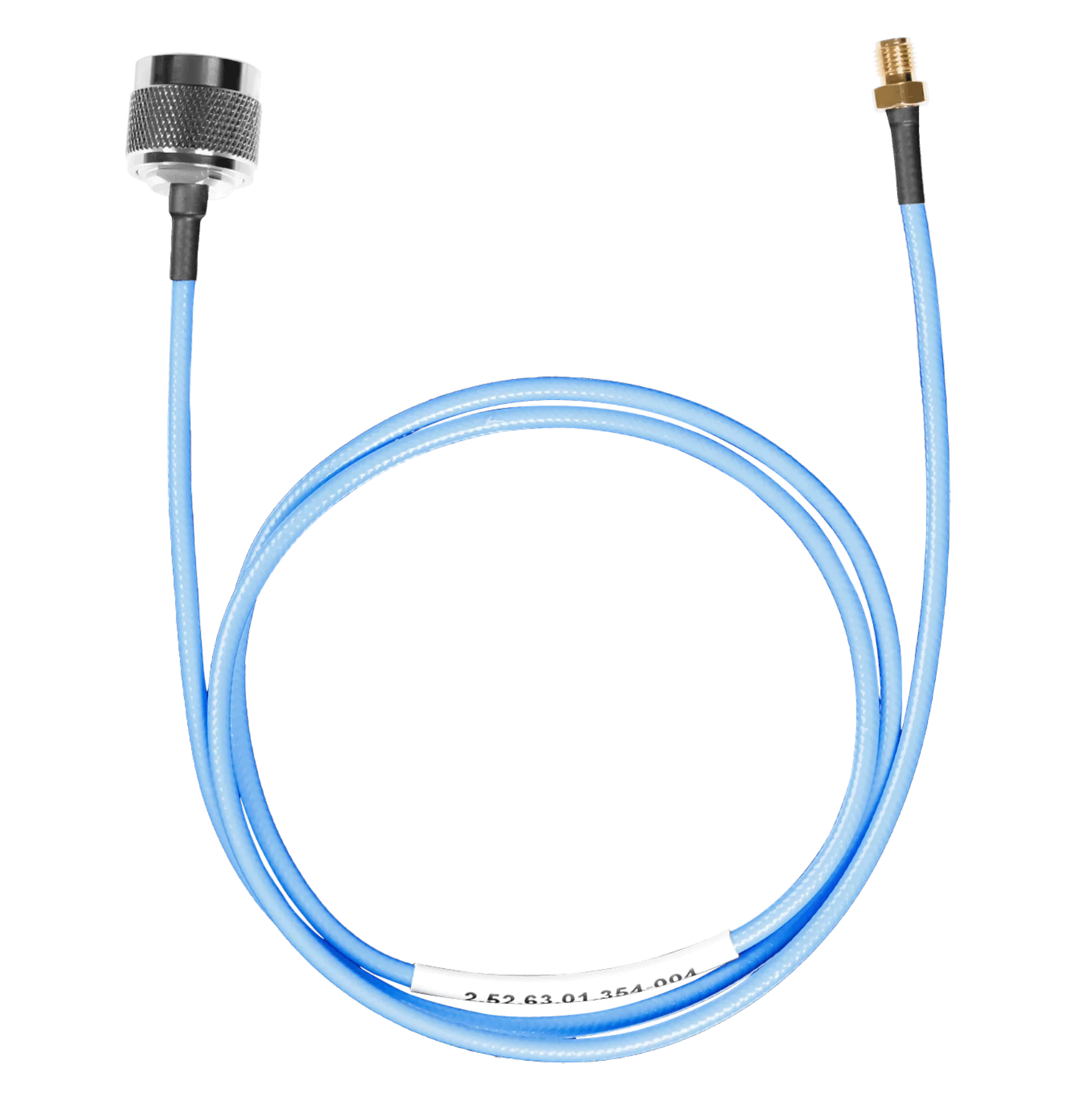

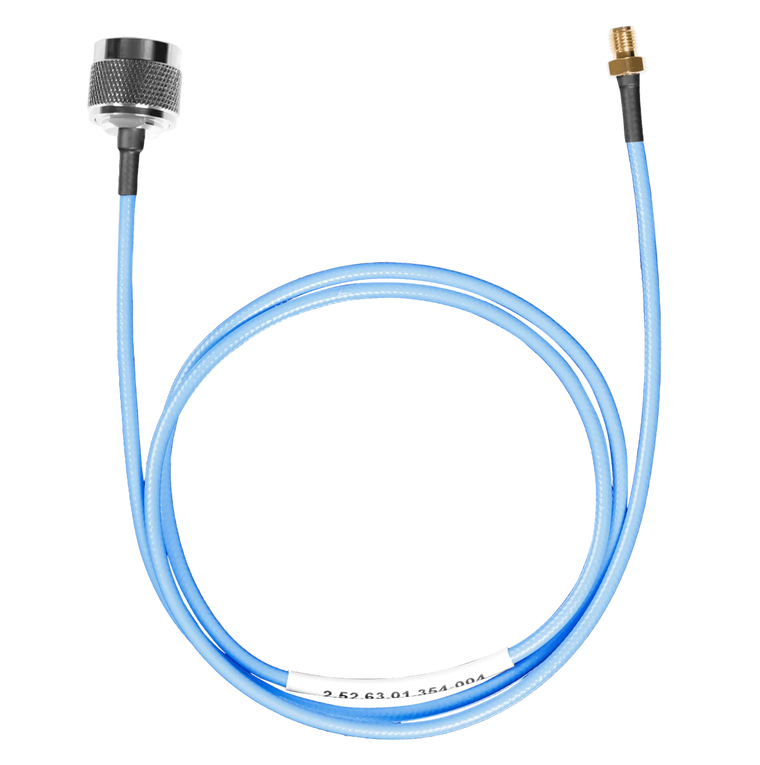

The S06-NMSF-1M is a 1000 mm 50 Ω test lead with an N male connector for the instrument and an SMA female connector for the device, specified from DC to 6 GHz.
The female SMA end is the whole point. A great many devices — connectorised amplifiers, pigtails, cable assemblies and any board that brings an SMA male out to the edge — need a female to mate with. Reach for a standard N-SMA cable in that situation and you are hunting for an adaptor; this cable simply connects. It is also 300 mm longer than the 0.7 m leads, which is often the difference between comfortable and awkward on a bench.
At a glance
- Connector 1N male
- Connector 2SMA female
- FrequencyDC – 6 GHz
- Impedance50 Ω
- Length1 m
Order code S06-NMSF-1M · supplied by SIGLENT
What it is for
Mating an SMA male device
No adaptor, no extra mated pair, no additional mismatch in the path. The cable ends in the gender the device needs.
A little more reach
One metre rather than 0.7 m — enough to get from a rack-mounted instrument to a bench without strain on the connector.
The counterpart to the N-SMA-6L
Between this cable and the N-SMA-6L you can meet an SMA device of either gender without carrying adaptors.
Specifications
| Parameter | Value |
|---|---|
| Connector 1 | N male |
| Connector 2 | SMA female |
| Frequency range | DC – 6 GHz |
| Impedance | 50 Ω |
| Length | 1 m |
Siglent publishes connector, bandwidth and length for this part. Detailed figures such as VSWR and insertion loss are not published for it — if your application depends on them, ask us and we will request them from the factory.
Instruments it connects to
The N male end mates with the RF port on these Siglent instruments — each port taken from that instrument’s own datasheet.
- SSA3000X
- SSA3000X Plus
- SSA3000X-R
- SVA1000X
- SSG3000X
- SSG5000X
- SNA5002A / 5012A / 5004A / 5014A
Not sure which port your instrument has? The RF cables and adaptors page carries the full table.
