Siglent BAG-S1 soft carry case for SDS1000X-E, SDS2000X-E, SDS800X HD and CML+/DL+ oscilloscopes
Padded soft carry case for Siglent SDS1000X-E, SDS2000X-E, SDS800X HD, SDS1000X-U and SDS1000CML+/DL+ oscilloscopes: handles, shoulder strap, probe pocket.
BAG-S1 — soft carry case for the compact Siglent oscilloscopes
A padded soft case for one compact Siglent oscilloscope, with carry handles, a shoulder strap and a zipped front pocket for the probes and leads.
Siglent’s SDS1000X-E, SDS2000X-E, SDS800X HD and SDS1000X-U share one 312 mm case, and the SDS1000CML+/DL+ is a near twin. The BAG-S1 is the case Siglent makes for that size: the oscilloscope goes in the main compartment, the accessories in the front pocket, and the whole set travels by handle or by shoulder. It is the difference between an instrument that stays on the bench and one that goes where the fault is.
What it does
What it is

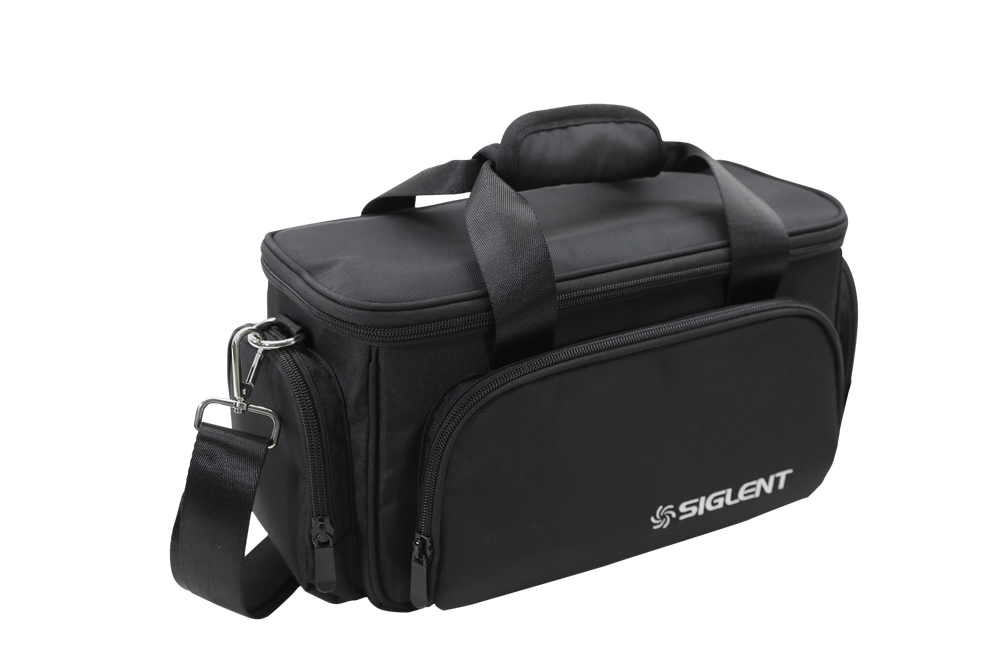

A padded soft case in black fabric for one compact Siglent oscilloscope, with two carry handles, a clip-on shoulder strap and a zipped front pocket for the probes, the power lead and a USB cable. The Siglent case for this size of instrument.
What you use it for
Taking a bench oscilloscope out of the lab: field service, a customer visit, a lecture room, a second site. The cardboard box the scope came in was made for one trip; this is made for every trip after it.
In practice
A service engineer keeps an SDS1204X-E and its four probes in the BAG-S1 in the van. On site the scope comes out with everything it needs already in the front pocket, and goes back the same way — no probe left on the customer’s bench.
One case, one oscilloscope. The BAG-S1 is sized for the compact 312 mm chassis; the larger SDS2000X, SDS2000X Plus, SDS2000X HD and SDS5000X and the SSA3000X / SVA1000X analysers take the BAG-S2. Siglent publishes no dimensions or weight for the case itself, so we do not quote any. It is a padded soft case: fine for the van, the train and the site, not a substitute for a hard transport case in air freight.
What you get
Two carry handles
Padded, joined at the top with a grip wrap, for a short carry by hand.
Shoulder strap
Clips on at both ends, so it can be removed when the bag is packed in a vehicle.
Zipped front pocket
Room for the probes, the power lead, a USB cable and the quick-start guide.
Padded main compartment
Zipped along three sides, so the oscilloscope is lifted in and out, not slid.
One size of instrument
Sized for the 312 mm-wide compact Siglent scopes — the SDS1000X-E case and its relatives.
Siglent branded
Black fabric with the Siglent logo on the front pocket.
Which oscilloscopes fit
Siglent names four series; two more use the identical case. Each card links to the series.
Goes with
Questions about the BAG-S1
Which oscilloscopes fit?
Siglent names the SDS1000X-E, SDS2000X-E, SDS1000X and SDS1000DL+/CML+ series. The SDS800X HD and SDS1000X-U use exactly the same 312 × 132.6 × 151 mm case as the SDS1000X-E, so they fit too.
Does it fit the SDS2000X HD or SDS2000X Plus?
No. Those are a larger case and take the BAG-S2. The same goes for the SDS5000X and for the SSA3000X and SVA1000X analysers.
Is there room for the probes and the power lead?
Yes. The zipped front pocket takes the probes, the power lead, a USB cable and the quick-start guide, so the instrument travels complete.
What are the case’s dimensions and weight?
Siglent does not publish them, and we would rather say so than guess. It is sized around a 312 × 133 × 151 mm oscilloscope. If the size matters for your packing, ask us and we measure one.
Is it padded enough for shipping?
It is a padded soft case for carrying and for transport in a vehicle. For courier or air freight, keep the original box or use a hard case.
Can I return it?
Yes. It is a physical accessory, so the normal 14-day EU return right applies to consumer orders.
Not sure which case?
Tell us the oscilloscope model. We confirm whether it takes the BAG-S1 or the BAG-S2 — and whether a rack kit would serve you better.
