Siglent SDS1000X-E-RMK 19" 4U Rack Kit
Siglent SDS1000X-E-RMK is a 19-inch 4U rack shelf for Siglent SDS1000X-E, SDS1000X-U and SDS2000X-E oscilloscopes. The scope's own front panel stays fully accessible
A shelf for the bench oscilloscopes

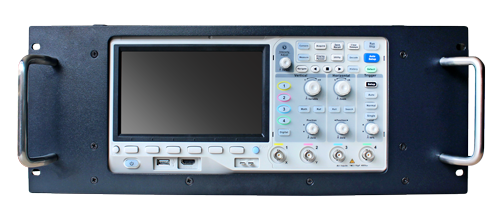

A 19-inch, 4U rack shelf for Siglent’s bench oscilloscopes. The instrument sits behind a full-width front panel with a handle at each side, and its own controls stay entirely accessible — screen, knobs, all four inputs, the USB port and the compensation terminal.
Because the panel does the work rather than a chassis-specific bracket, one kit covers four families: SDS1000X-E, SDS1000X-U, SDS2000X-E and the current SDS800X HD. Our own listing has only ever mentioned some of those, which is part of why this page exists.
It is 4U rather than the 3U of the generator and multimeter kits, because these scopes are taller. Budget the height before you plan the rack.
What it fits
Four families, fifteen models between them. Each links through so you can check your exact model.
SDS1000X-E
SDS1202X-E · SDS1104X-E · SDS1204X-E
The series the kit is named after.
SDS1000X-U
SDS1104X-U
Named by Siglent, but missing from our own listing until now.
SDS2000X-E
SDS2202X-E · SDS2352X-E
Confirmed on Siglent's own SDS2000X-E series page.
SDS800X HD
SDS802X HD · SDS804X HD · SDS812X HD · SDS814X HD · SDS822X HD · SDS824X HD
The current 12-bit entry range — all six models.
This kit takes the SDS800X HD, but not the bigger HD oscilloscopes. The SDS1000X HD, SDS2000X HD and SDS3000X HD are a larger chassis and need the SDS2000HD-RMK at 6U instead — nearly twice the rack height and a different kit entirely. “HD” in the model name tells you about the ADC, not about which shelf it fits, so check the number in front of it.
Why rack an oscilloscope
Different reasons from racking a generator.
The screen ends up at eye level
A scope on a bench is looked down at; a scope at 4U in a rack is looked straight at. On an instrument you read rather than just operate, that is a real ergonomic difference over a long session.
The probes stop pulling it about
Four probes and a ground lead exert more sideways force on a light bench scope than people expect. Fixed in a rack, the instrument stays where the last person left it.
It joins the system
In a test rack the scope usually sits with a generator and a supply. Racking it puts the whole chain in one frame with the cabling dressed once.
Teaching benches survive longer
In a shared lab the instruments that get damaged are the ones that can be picked up. A shelf with handles is also a lot easier to carry deliberately than a scope held by its bezel.
Specification
| Type | 19-inch rack shelf with front panel and handles |
| Rack height | 4U |
| Weight | 2.8 kg |
| Instruments per opening | One |
| Fits | SDS1000X-E, SDS1000X-U, SDS2000X-E and SDS800X HD oscilloscopes |
Not the right kit? The whole range
The oscilloscope kits are split by chassis size, and the names are close enough to catch people out. Find your instrument here rather than guessing.
| Kit | Fits | Height | Price |
|---|---|---|---|
| SDS1X-E-RMK this kit | SDS1000X-E, SDS1000X-U, SDS2000X-E, SDS800X HD | 4U | €125 |
| SDS2000X-RMK | SDS2000 / SDS2000X | — | €129 |
| SDS2000HD-RMK (ask us) | SDS2000X HD, SDS1000X HD, SDS3000X HD | 6U | €225 |
| SDS5000X-RMK (ask us) | SDS5000X | 6U | €309 |
| SDS6000-RMK (ask us) | SDS6004A, SNA5000A, SSA5000A | 7U | €329 |
| SDS7000A-RMK (ask us) | SDS7000A | — | €557 |
| SDG-RMK | SDG800, SDG1000, SDG1000X, SDG2000X, SDG5000, SDG6000X, SDM3000 | 3U | €109 |
| SDG-2-RMK | Two of the SDG / SDM range side by side | 3U | €85 |
| SSG-RMK | SSG3000X, SSG5000X, SSG5000A, SDG7000A | 3U | €159 |
| SSG6000A-RMK | SSG6000A, SSG6000A-V | 2U | €335 |
| SSA-RMK | SSA3000X, SSA3000X Plus, SVA1000X, SSA3000X-R | — | €135 |
| SPD3000-RMK | SPD3303X, SPD3303X-E, SPD3303C | 4U | €135 |
| SPD4000X-RMK | SPD4000X | 3U | €159 |
| SPS5000X-RMK | SPS5000X | 3U | €185 |
Prices ex VAT. Kits marked “ask us” are available to order but do not have a page on the shop yet.
Questions we are asked
Does it fit the SDS2000X-E as well? The name says so.
Yes. Siglent's own SDS2000X-E series page lists this kit among that series' optional accessories, and their price list names it too. So an SDS2202X-E or SDS2352X-E is fine.
What about the SDS1000X-U?
Yes — and this is the one our listing has been quiet about. Siglent's accessory page calls the kit “compatible with SDS1000X-E/SDS1000X-U models”, so the SDS1104X-U belongs on the list. It is now.
Will it take an SDS800X HD?
Yes. Siglent list this kit for the SDS800X HD in their current price list, and the chassis is the same size class as the SDS1000X-E it was designed around. All six models — SDS802X HD through SDS824X HD — go in it. If you want the rack height confirmed against your specific cabinet before ordering, ask us.
Is it a shelf or a set of brackets?
A shelf. The instrument sits behind a full-width front panel with a handle at each side, rather than having ears bolted to its sides. That is why it fits several different models — the panel does the work, not a chassis-specific bracket.
Why 4U when the generator kits are 3U?
Because these oscilloscopes are taller than the half-width bench instruments. A 7-inch display and a full control panel need the extra height, so budget 4U rather than assuming all Siglent rack kits are the same.
Can I still reach the USB port and the probe compensation terminal?
Yes — the front panel is exposed through the shelf, so the USB host port, the probe compensation output and all four inputs stay where they were. Nothing on the front is covered.
I have a different Siglent oscilloscope. Which kit?
The oscilloscope kits are split by chassis size — there are separate ones for the SDS2000X, the HD models, the SDS5000X, the SDS6000 family and the SDS7000A. The table above lists them all; if the one you need has no page on the shop yet, ask us and we will quote it.
Tell us the model and we will confirm it
Oscilloscope rack kits are split by chassis, and the model names are close. Send us what you are mounting and we will tell you which kit — including whether an SDS800X HD will go in this one. JRSE B.V. is the official Siglent distributor for the European Union.
