Siglent SSG6000A-RMK 19" Rack Mount Kit
19-inch 2U rack mount kit for the Siglent SSG6083A, SSG6085A, SSG6087A and SSG6082A-V. The SSG-RMK does not fit these - this is the only kit for the SSG6000A
The dedicated kit for the SSG6000A

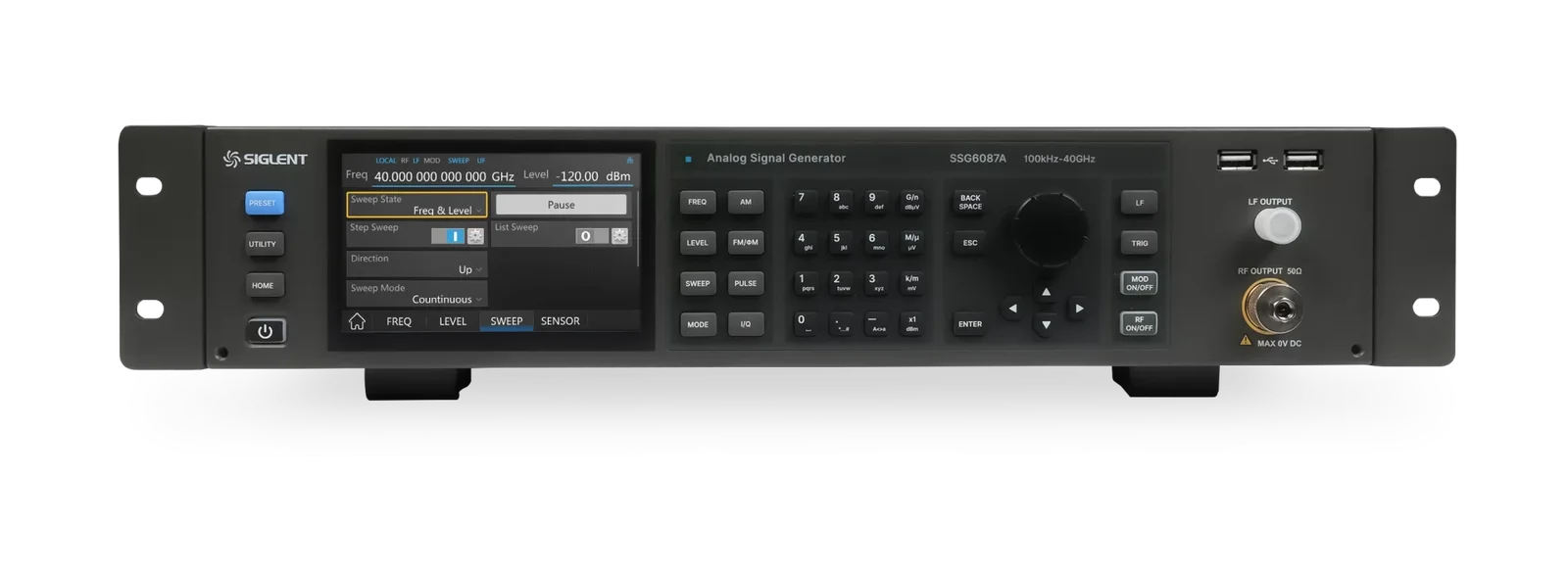

A 19-inch, 2U mounting kit made for one chassis: the SSG6000A microwave signal generators and the SSG6082A-V vector generator. Nothing else in the Siglent range uses it, and it does not substitute for any other kit.
It is the most expensive rack kit Siglent make, which looks odd until you notice what goes in it. The generators these hold cost between €21,050 and €46,070. The kit is under two per cent of that — and rather less than the cost of one instrument coming off a bench.
At 20 and 40 GHz there is a second argument. Fixing the instrument fixes its cabling, and cable geometry that does not move is cable loss that does not drift between measurements.
What it fits

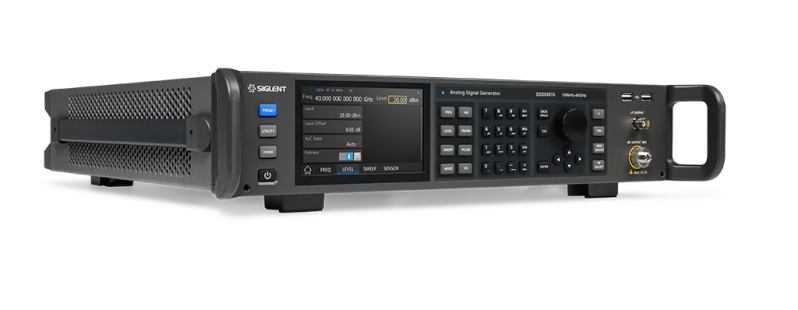

Four instruments, three analog and one vector. Prices are there to put the €335 in proportion.
SSG6083A
€21,050100 kHz – 13.6 GHz analog
SSG6085A
€24,430100 kHz – 20 GHz analog
SSG6087A
€46,070100 kHz – 40 GHz analog
SSG6082A-V
€27,6809 kHz – 8 GHz vector, internal I/Q
One digit apart, different chassis, not interchangeable. The SSG-RMK at €159 is for the SSG3000X, SSG5000X, SSG5000A and SDG7000A. If you have an SSG6000A, this page is the right one — and if you have an SSG5083A, it is not. Check the model on the front panel before ordering either.
Siglent's accessory page states 2U, and so does the original description of this product. Siglent's price list says 3U. We have gone with 2U because two sources agree and one of them is the more specific, but if your rack space is tight enough for the difference to matter, ask us and we will have it confirmed before you order rather than after.
What you get, and what to leave room for

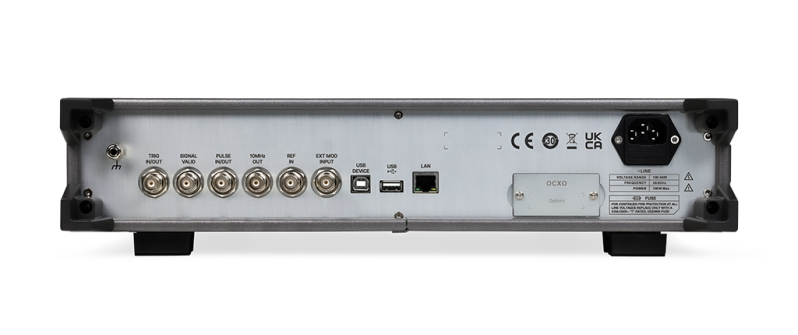

Two things worth seeing before you plan the rack: what actually comes in the box, and what is on the back of the instrument that will need cable depth behind it.
A practical note on cabling. Six rear BNCs and the RF output on the front means a racked SSG6000A can end up with a lot of cable behind it. Leave enough depth that the microwave cable is not forced into a tight bend — bend radius is a specification on those, and violating it changes loss and match rather than just looking untidy.
Why rack a microwave source
Tidiness is the least of it.
It is 1% of the instrument
The cheapest SSG6000A is €21,050 and the 40 GHz SSG6087A is €46,070. This kit is between 0.7% and 1.6% of that. Weighed against one instrument sliding off a bench, it is not really a purchasing decision.
Cable stability is a measurement issue at these frequencies
At 20 or 40 GHz a flexed cable is not a tidiness problem, it is a repeatability problem. Fixing the instrument in a rack fixes the geometry with it, so the calibration you did on Monday still holds on Friday.
The connectors are the fragile part
2.92 mm and 2.4 mm connectors do not forgive side load. An instrument that cannot be nudged is an instrument whose RF port is not being levered by its own cable.
It belongs in the system, not beside it
These generators are usually one element of an automated setup. Racked, the front panel is always in the same place and the cabling is dressed once.
Specification
| Type | 19-inch rack mount kit for the SSG6000A chassis |
| Rack height | 2U — see the note below |
| Instruments per opening | One |

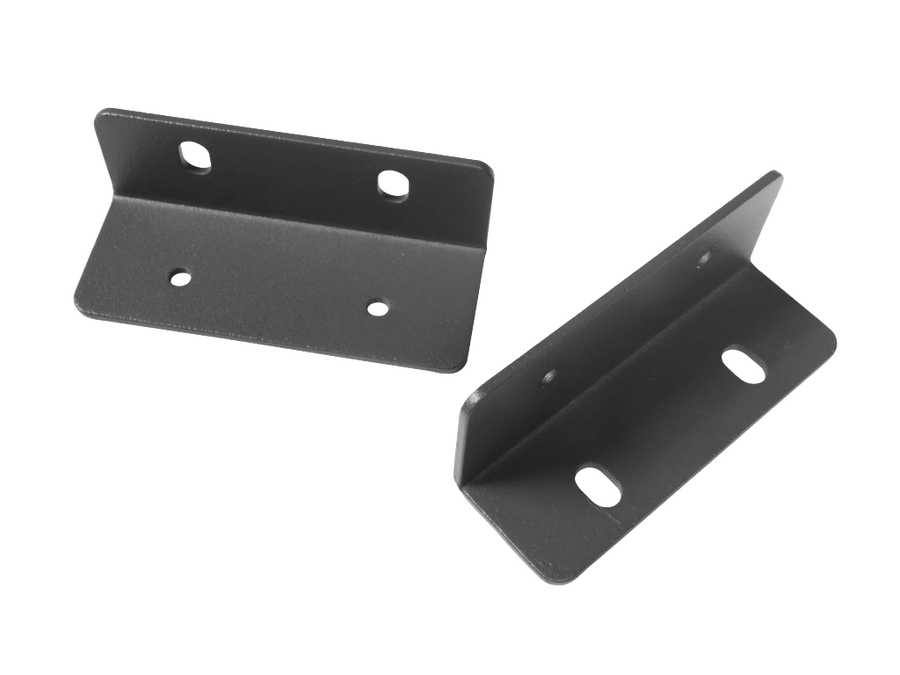

| Supplied | Two L-section rack ears and their fixings — brackets, not a shelf |
| Fits | SSG6083A, SSG6085A, SSG6087A and the SSG6082A-V |
| Does not fit | Any other Siglent generator — the SSG3000X, SSG5000X and SSG5000A take the SSG-RMK instead |
Not the right kit? The whole range
Siglent make a different rack kit for almost every chassis, and the model names are close enough to catch people out.
| Kit | Fits | Height | Price |
|---|---|---|---|
| SSG6000A-RMK this kit | SSG6083A, SSG6085A, SSG6087A, SSG6082A-V | 2U | €335 |
| SSG-RMK | SSG3000X, SSG5000X, SSG5000A, SDG7000A | 3U | €159 |
| SDG-RMK | SDG800, SDG1000, SDG1000X, SDG2000X, SDG5000, SDG6000X, SDM3000 | 3U | €109 |
| SDG-2-RMK | Two of the SDG / SDM range side by side | 3U | €85 |
| SSA-RMK | SSA3000X, SSA3000X Plus, SVA1000X, SSA3000X-R | — | €135 |
| SDS1X-E-RMK | SDS1000X-E, SDS1000X-U, SDS2000X-E, SDS800X HD | 4U | €125 |
| SDS2000X-RMK | SDS2000 / SDS2000X | — | €129 |
| SDS2000HD-RMK (ask us) | SDS2000X HD, SDS1000X HD, SDS3000X HD | 6U | €225 |
| SDS5000X-RMK (ask us) | SDS5000X | 6U | €309 |
| SDS6000-RMK (ask us) | SDS6004A, SNA5000A, SSA5000A | 7U | €329 |
| SDS7000A-RMK (ask us) | SDS7000A | — | €557 |
| SPD3000-RMK | SPD3303X, SPD3303X-E, SPD3303C | 4U | €135 |
| SPD4000X-RMK | SPD4000X | 3U | €159 |
| SPS5000X-RMK | SPS5000X | 3U | €185 |
Prices ex VAT. Kits marked “ask us” are available to order but do not have a page on the shop yet.
Questions we are asked
Is it 2U or 3U? I have seen both.
So have we, and it is worth being straight about. Siglent's own accessory page says 2U, and so does the description on this listing. Siglent's price list says 3U. Two sources to one, and the more specific one, so we have gone with 2U — but if your rack space is tight enough that the difference matters, ask us and we will get it confirmed before you order.
Will the SSG-RMK fit my SSG6000A instead? It is cheaper.
No. The names are one digit apart and the kits are not interchangeable — the SSG-RMK is for the SSG3000X, SSG5000X, SSG5000A and SDG7000A, which are a different chassis. This is the only kit for the SSG6000A.
Does it fit the SSG6082A-V as well as the analog models?
Yes. Siglent list the kit for the SSG6000A and the SSG6000A-V together. They are quite different instruments — the SSG6083A/6085A/6087A are microwave analog generators with no internal I/Q, while the SSG6082A-V is a vector generator with an internal I/Q baseband — but they share the chassis.
Why does it cost more than the other rack kits?
Bigger, heavier chassis, and a considerably more valuable instrument sitting in it. Put against the €21,050 to €46,070 the generators themselves cost, the kit is between 0.7% and 1.6% of the purchase. It is the least expensive part of the installation.
Does it change anything about the RF performance?
Not directly, but indirectly it helps. Mechanical stability is what keeps a calibrated cable run behaving the same between measurements, and at 20 or 40 GHz that matters more than most people expect. Racking the instrument is one way of stopping the cabling from being disturbed.
Can I still get to the rear panel?
Yes, as with any rack installation — leave working depth behind the instrument for the RF output, the 10 MHz reference, LO and trigger connections, and do not force tight bends into microwave cable to make it fit.
I have a different Siglent instrument. Which kit?
The table above lists the whole range with what each one fits. If yours is not there, or the kit has no page on the shop yet, ask us and we will quote it.
Send us the model number first
On a €46,000 instrument it is worth thirty seconds of checking. Tell us which generator you are mounting and we will confirm the kit — and the rack height — before you order. JRSE B.V. is the official Siglent distributor for the European Union.
