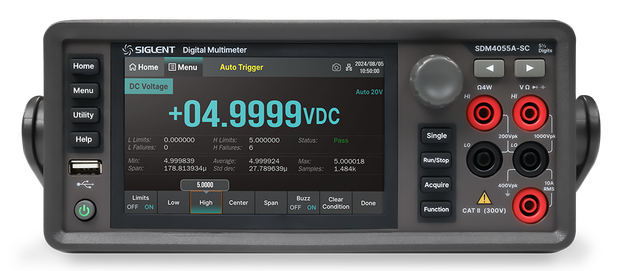

Siglent SDM4055A-SC 5.5 Digits 4800 rdgs/s digital multimeter + 16CH Scanner Card

NEW
€878.00

The Siglent SDM3055A-SC is a 4800 rdgs/s high-performance 5½ digit digital multimeter equipped with the SC1016 16-channel scanner card, making it ideal for automated, multi-point measurements in R&D, production testing, and quality control. Featuring a crisp 4.3-inch TFT display, the scanner card has a fast reading rate of up to 150 rdgs/s, and built-in data logging capabilities, the SDM3055A-SC delivers reliable performance and streamlined operation for high-throughput testing environments.

Siglent’s new SDM4055A‑SC combines a 5½ digit bench multimeter with the SC1016 16‑channel scanner card into a single, turnkey instrument. You’ll get 150 ppm basic DCV accuracy and True‑RMS AC measurements across DC/AC voltage up to 1000 V, current to 10 A, 2‑ and 4‑wire resistance to 100 MΩ, plus capacitance, frequency, diode/continuity tests and RTD/thermocouple temperature—all controlled from the responsive 5″ touchscreen. With the scanner card engaged you can automatically sequence up to 16 measurement points at a combined 150 readings per second, capturing every channel without rewiring, while the built‑in logger stores up to two million readings for long‑term trends. Dual‑display, bar, trend and histogram modes, full math/statistics (Min/Max/Avg/Std Dev, limits, dB/dBm, relative), and USB, LAN and optional GPIB connectivity with SCPI support make the SDM4055A‑SC the ultimate solution for fully automated, high‑throughput test and quality‑control environments.

Built for automation and connectivity, the SDM4055A-SC includes USB, LAN, and optional GPIB interfaces, and supports SCPI remote control and EasyDMM-X software. With built-in dual display, statistics functions, and advanced visualization modes such as trend charts and histograms, it's engineered to simplify even the most complex tasks.

Key Features:

  • Real 5½ digit (220 000 count) resolution with 150 ppm basic DCV accuracy and true‑RMS AC measurements
  • Built‑in SC1016 16‑channel scanner card for automated multi‑point testing (channels 1–12: voltage/resistance/capacitance/frequency/temp; channels 13–16: up to 2 A current

  • Up to 150 readings per second total when scanning all channels (single‑channel speed up to 4 800 rdgs/s without scanner)

  • 5″ capacitive TFT touchscreen (800×480) with intuitive UI and dual‑display for simultaneous parameter viewing

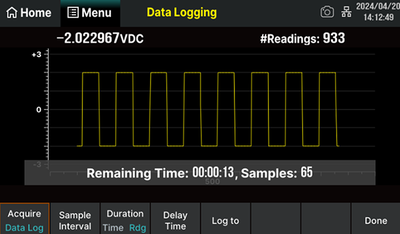

  • On‑board data logging: up to 2 million points in memory or 360 million to file, with 0.1 s–3600 s intervals and timestamp support

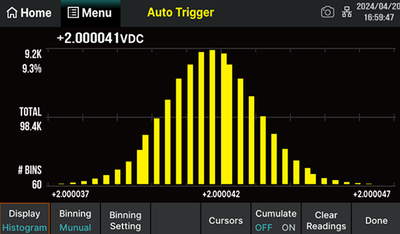

  • Four display modes—numeric, bar meter, trend chart, histogram—plus probe‑hold and bar‑graph analog‑style feedback

  • Comprehensive math/statistics: Min/Max, Average, Std Dev, Span, Limits (go/no‑go), dBm/dB, and relative‑value functions

  • Four trigger modes (Auto, Single, External, Level) with programmable delay and VMC output for synchronized capture
  • USB Host/Device, LAN (LXI), and optional GPIB interfaces with full SCPI command support, web server, VNC, and EasyDMM‑X PC software

  • 256 MB NAND flash for storing configurations, logs, screenshots, and user‑defined sensor profile.

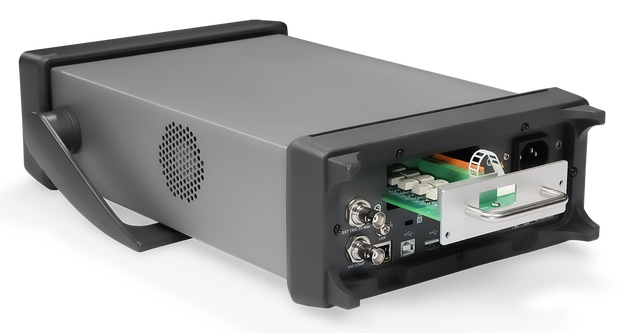

Scanner card SC1016

The scanner card SC1016 is a multiplexer that provides multi-point measurement capabilities to the SDM4065A-SC. The scanner features 12 multi-purposes + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP (RTD and Thermocouple). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

SC1016 Specifications
Max AC Voltage 125 rms or 175 V peak, 100 kHz, 0.3 A switched, 125 VA (resistive load)
Contact Life > 100000 operations, at 1 A 30 VDC (at 0.5Hz) > 100000 operations, at 0.3 A 125 VDC (at 0.5Hz)
Contact Resistance 75 mΩ (maximum at 6 VDC, 1A)
Channel to Channel Switching Time 280 ms (typical)
Maximum Switching Voltage 250 VAC, 220 VDC
Maximum Switching Power 62.5 VA / 30W
Insulation Resistance Minimum 1 GΩ
Connect Type Clamp terminal, #24 AWG wire size

Application Examples

    1. Automated PCB Power‑Rail Verification
    In a production line for complex PCBs—such as motherboards or power‑management modules—each board may require verification of a dozen separate voltage rails, plus current checks on high‑power domains. With its built‑in SC1016 scanner card, the SDM4055A‑SC can automatically step through up to 12 voltage or resistance channels (e.g. 3.3 V, 5 V, 12 V rails and pull‑up resistors) and four dedicated current channels (up to 2 A each) at a combined rate of up to 150 rdgs/s. That means a complete multi‑rail check in under 200 ms, saving minutes per board compared to manual probe switching—and it logs every channel with timestamps for traceable quality records.

    2. Multi‑Sensor Environmental Characterization
    For R&D teams characterizing thermal or humidity sensor arrays, the SDM4055A‑SC’s 16‑channel scanner lets you read 12 thermocouples or RTDs in parallel while reserving channels for reference currents or calibration resistors. At 150 rdgs/s total, you can cycle through all sensors every 100 ms, capturing temperature profiles across an environmental chamber. Coupled with its 2 million‑point logger and trend‑chart display, you get both high‑speed snapshots and long‑duration drift analysis without manual intervention.

    3. Battery‑Cell Balancing in Pack Development
    When developing multi‑cell battery packs, engineers must monitor each cell voltage and cell‑stack current under charge/discharge cycles. The SC1016 card handles up to 12 individual cell taps for voltage, plus four channels for current measurement (via external shunts), all in one instrument. At ~12 channels × 12.5 rdgs/s per channel, you still get sub‑second updates across the pack—fast enough to detect imbalance or thermal anomalies during fast‑charge testing, and to log data for SOC/SOH algorithms.

    4. Automated Burn‑In and Reliability Testing
    In burn‑in ovens or reliability test fixtures, dozens of devices under test need periodic electrical checks—resistance, leakage current, or diode functionality—over tens of hours. The SDM4055A‑SC’s scanner card lets you define channel ranges and settle times once, then run hands‑free for the full test duration. Its 150 rdgs/s scanning speed, combined with programmable trigger delays and VMC synchronization, ensures every channel is measured at precise intervals, and its histogram mode highlights outlier devices immediately.

    5. High‑Volume Calibration Lab Workflows
    Calibration labs routinely verify hundreds of DMMs, transducers, or sensors each week. By wiring each device’s output to a separate channel on the SC1016, the SDM4055A‑SC can step through a calibration rack automatically—applying known references (voltage, current, resistance) and capturing the DUT’s response in one sweep. With its full SCPI support, the entire procedure can be scripted in your lab management software, delivering pass/fail certificates with minimal operator time.

    SDM4055A-SC Key Specifications
    Reading Resolution / Number of Digits 5 1/2
    DCV Basic Accuracy 150 ppm
    Max Reading Rate 4,800 rdgs/s
    Memory Up to 2 million readings
    DCV Range 200 mV ~ 1000 V
    ACV Range 200 mV ~ 750 V, 20 Hz ~ 100 kHz
    DCI Range 200 uA ~ 10 A
    ACI Range 20 mA ~ 10 A, 20 Hz ~ 10 kHz
    2/4-Wire Resistance Range 200 Ω ~ 100 MΩ
    Continuity / Diode Buzzer, 4 V max
    Frequency / Period Range 20 Hz ~ 1 MHz
    Temperature RTD, thermocouple
    Capacitance Range 2 nF ~ 10 mF

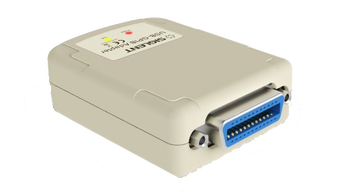

    IO SC1016 ( scannner card ), USB Host, USB Device, LAN, GPIB (optional)
    External Interface Exit trigger, VMC out

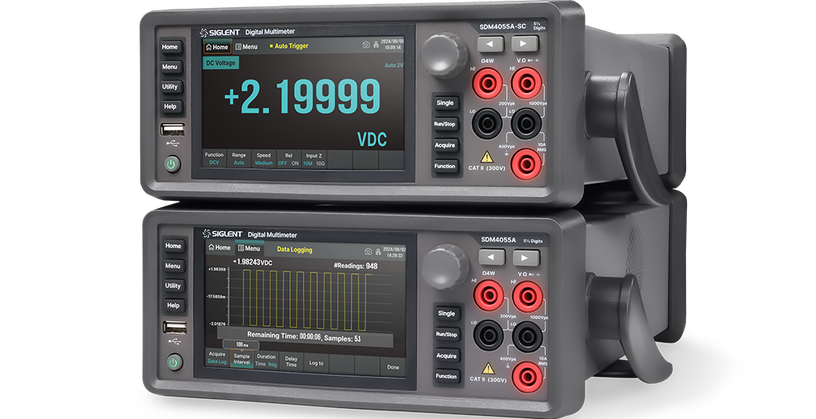

    Display Screen 5-inch TFT touchable display screen

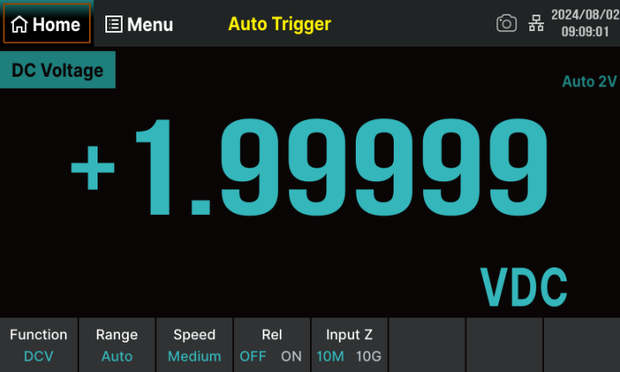

    Numerical Display

    It features a crisp, high-resolution numerical display for clear, real-time measurement readings with dual-value support.

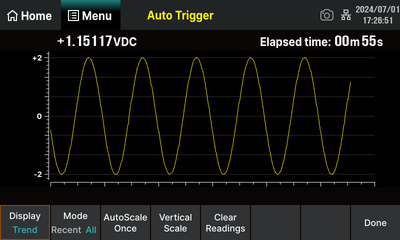

    Trend Chart

    The trend chart visually tracks measurement changes over time, perfect for monitoring signal stability and detecting slow drifts.

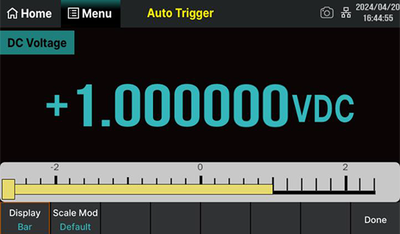

    Bar Meter

    The bar meter provides an intuitive analog-style view of signal levels for quick visual assessment of fluctuations.

    Standard Accessories:

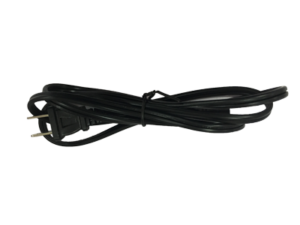

    1 x EU 220V Mains power cord

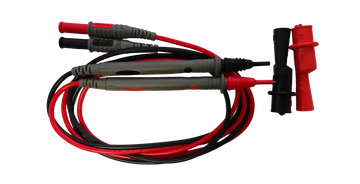

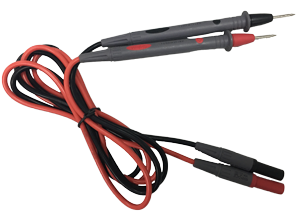

    1 x Multimeter probe set

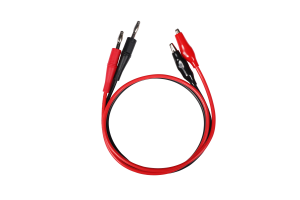

    1 x Alligator clips cable set

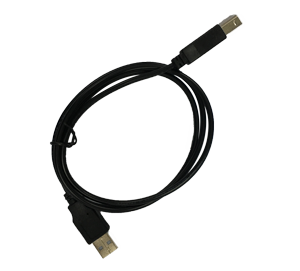

    1 x USB cable
    1 x QuickStart guide

    EasyDMMX_V1.03 Software

    Optional Accessories:

    SDM4055A manual 01A PDF
    PDF – 5,1 MB 39 downloads
    SDM4055A Quickstart E01A PDF
    PDF – 1,3 MB 31 downloads
    SDM4055A Datasheet 01A PDF
    PDF – 1,1 MB 43 downloads
    SDM4000A Remote Manual PDF
    PDF – 1,9 MB 35 downloads
