Siglent SSA3000XR-AMK Measurement license option

Siglent SSA3000XR-AMK Advanced Measurement Kit License Option

Upgrade your Siglent SSA3000X-R real-time spectrum analyzer with the SSA3000XR-AMK Advanced Measurement Kit. This software license unlocks powerful automated RF measurement functions, making it easier to evaluate transmitters, communication signals, broadcast systems and general RF performance directly on the analyzer.

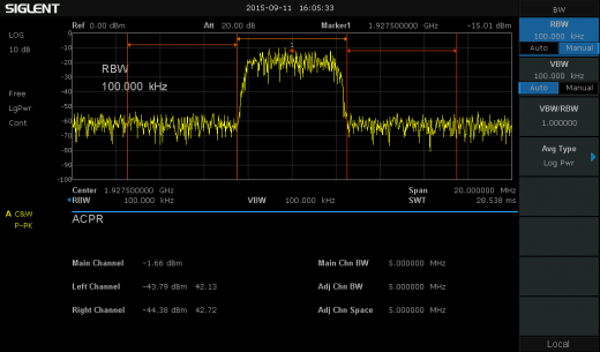

The Siglent SSA3000XR-AMK option adds advanced measurement tools including Channel Power, Adjacent Channel Power / ACPR, Occupied Bandwidth, Total Power, Third-Order Intercept / TOI, and an on-screen spectrum / waterfall analysis chart. These functions help speed up common RF testing tasks and reduce manual calculations, making the SSA3000X-R series more efficient for development, verification, service and compliance pre-checks.

This is a software activation license for the Siglent SSA3000X-R Series spectrum analyzers. No hardware installation is required. After activation, the additional measurement functions become available in the instrument menu.

Key features

• Official Siglent license option: SSA3000XR-AMK
• Advanced Measurement Kit for SSA3000X-R real-time spectrum analyzers
• Unlocks Channel Power, ACPR, Occupied Bandwidth, Total Power and TOI measurements
• Includes spectrum / waterfall monitoring for visual signal analysis
• Ideal for RF development, transmitter testing, broadcast measurements and service work
• Software license activation; no hardware upgrade required
