Siglent SDS1000XHD-PA Power Analysis Software / license option
The SDS1000XHD-PA license unlocks a full power-analysis suite inside your Siglent SDS1000X HD oscilloscope — no extra instrument needed. Using a voltage and a current probe, it automates power quality, current harmonics, switching loss with SOA, inrush current, dv/dt & di/dt slew rate, modulation and output ripple/regulation/efficiency measurements. It's a software-only activation keyed to your scope's serial number, and the SDS1000X HD's 12-bit front end makes the results meaningfully more accurate than an 8-bit scope.
SDS1000XHD-PA — Power Analysis software

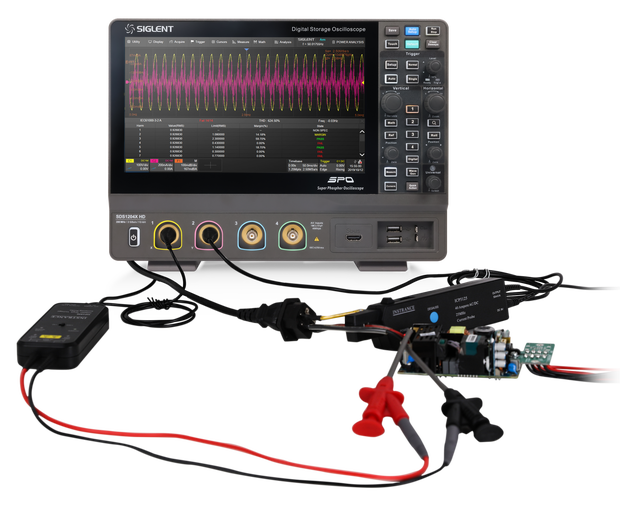

The SDS1000XHD-PA license unlocks a complete power-analysis suite inside your SDS1000X HD oscilloscope — turning the scope you already own into a capable power-measurement instrument, with no extra box on the bench. Using a voltage and a current probe, it automates the measurements that are slow and error-prone to set up by hand.
It characterises switch-mode power supplies, converters and motor drives: power quality, current harmonics, switching loss with SOA, inrush current, dv/dt & di/dt slew rate, modulation, output ripple, line & load regulation and efficiency. The 12-bit acquisition of the SDS1000X HD makes these results meaningfully more accurate than an 8-bit scope. It is a software-only activation — no hardware to fit — keyed to your instrument’s serial number.
What it measures
One license, the full power-analysis toolset — run directly on the instrument.
Power quality
Real, apparent & reactive power, power factor, crest factor, phase angle and total power — at a glance.

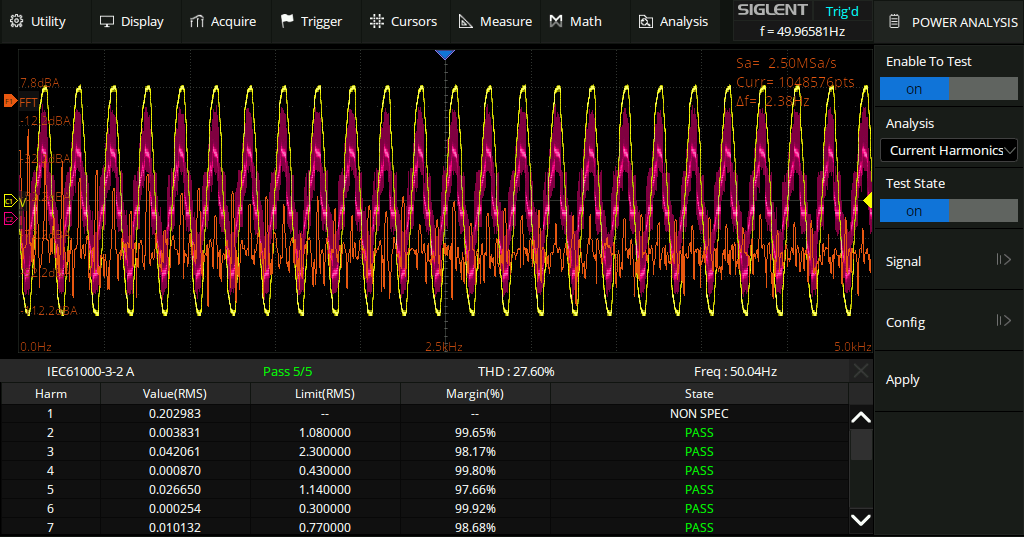

Current harmonics
Harmonic content and THD to IEC-style limits, with bar-graph and tabular results for compliance pre-checks.
Switching loss
Turn-on, turn-off and conduction losses plus a Safe-Operating-Area (SOA) plot for MOSFETs and IGBTs.
Inrush & slew rate
Peak inrush current at power-up, plus dv/dt and di/dt slew-rate measurements on fast edges.
Modulation analysis
Analyse pulse-width and frequency modulation behaviour of switching converters over time.
Output analysis
Output ripple & noise, line and load regulation, efficiency and transient (step) response.
Compatible oscilloscopes
The SDS1000XHD-PA license works with every model in the SDS1000X HD series. For full power analysis you need a free voltage channel and a current channel — the 4-channel models give the most flexibility.
- A voltage probe and a current probe (one channel each)
- For best timing accuracy, the DF2001A deskew fixture to de-skew the V and I channels
- Any SDS1000X HD oscilloscope (the 12-bit front end does the rest)
- Order the SDS1000XHD-PA license and tell us your instrument’s serial number
- You receive a license key tied to that serial number
- Enter it on the scope under Utility › Software Options — the suite is unlocked permanently, no return shipment needed
Add power analysis to your SDS1000X HD
Already own the scope? This software license is all you need. Not sure which probes or fixture suit your setup? Ask us.
