Siglent S18-NMSF-1M N(M)-SMA(F) RF Cable DC-18 GHz 1M

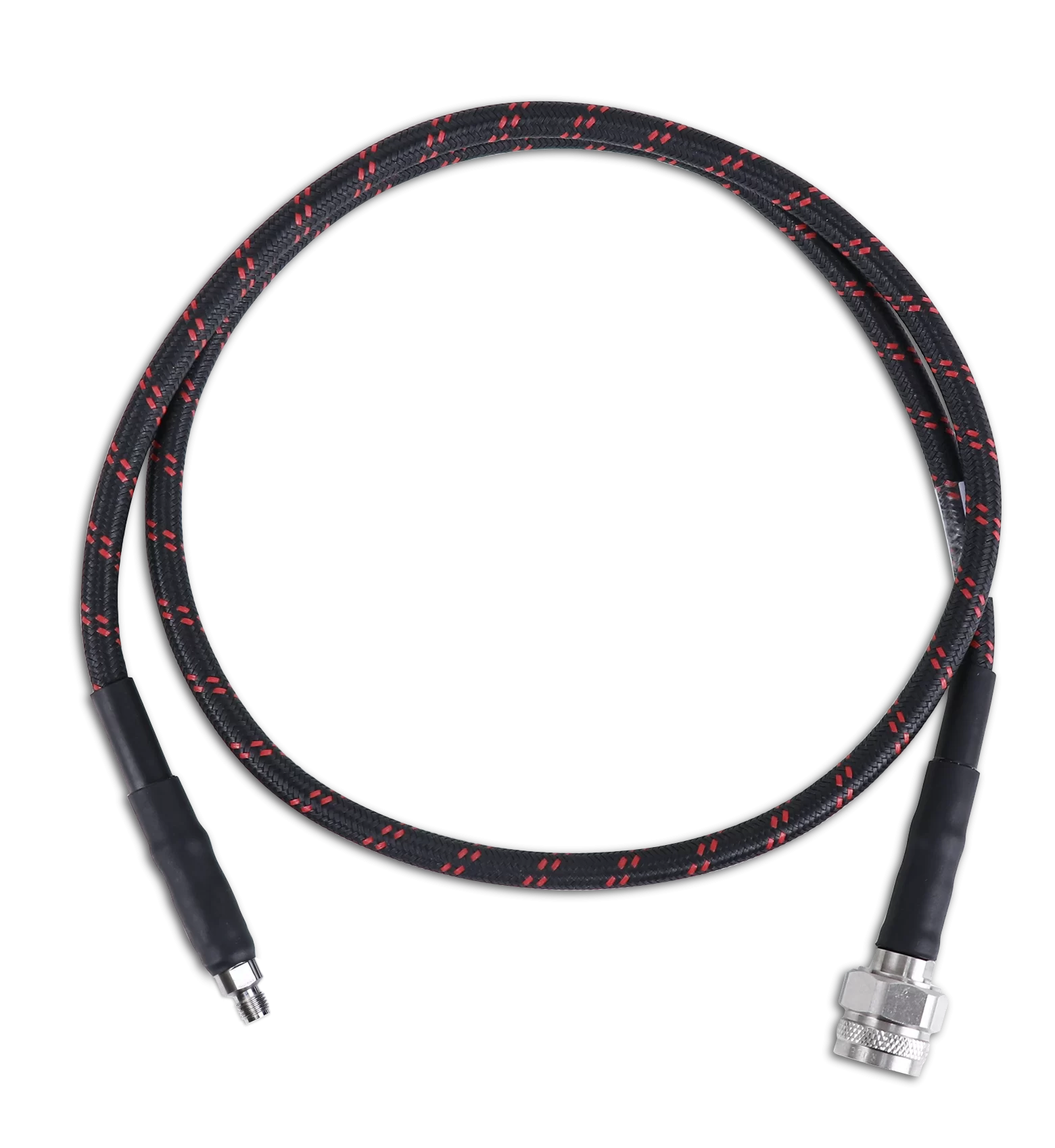

The S18-NMSF-1M is a 1000 mm 50 Ω microwave test lead, N male on the instrument end and SMA female on the device end, specified from DC to 18 GHz
N male to SMA female, specified to 18 GHz
The S18-NMSF-1M is a 1000 mm 50 Ω microwave test lead, N male on the instrument end and SMA female on the device end, specified from DC to 18 GHz.
The 18 GHz counterpart of the S06-NMSF-1M, with the same connectors and the same length. It is the cable for microwave work where the device under test brings out an SMA male — and it saves you stacking an adaptor onto a standard N-SMA lead, which at these frequencies is not a harmless thing to do. Every extra mated pair adds its own mismatch.
At a glance
- Connector 1N male
- Connector 2SMA female
- FrequencyDC – 18 GHz
- Impedance50 Ω
- Length1 m
Order code S18-NMSF-1M · supplied by SIGLENT
What it is for
SMA male devices, above 6 GHz
Mates directly, with no additional connector pair introducing reflections into a microwave path.
Where the 6 GHz version runs out
The same cable shape as the S06-NMSF-1M, specified three times higher for the SSG5000X and the 9 GHz SNA5000A models.
Keeping a path short
One cable instead of a cable plus adaptor means fewer interfaces, less loss and less to go wrong.
Specifications
| Parameter | Value |
|---|---|
| Connector 1 | N male |
| Connector 2 | SMA female |
| Frequency range | DC – 18 GHz |
| Impedance | 50 Ω |
| Length | 1 m |
Siglent publishes connector, bandwidth and length for this part. Detailed figures such as VSWR and insertion loss are not published for it — if your application depends on them, ask us and we will request them from the factory.
Instruments it connects to
The N male end mates with the RF port on these Siglent instruments — each port taken from that instrument’s own datasheet.
- SSA3000X
- SSA3000X Plus
- SSA3000X-R
- SVA1000X
- SSG3000X
- SSG5000X
- SNA5002A / 5012A / 5004A / 5014A
Not sure which port your instrument has? The RF cables and adaptors page carries the full table.
