SDS2000HD-RMK — rack mount kit for the X HD oscilloscopes
A 19-inch, 6U rack mount kit for one Siglent SDS1000X HD, SDS2000X HD or SDS3000X HD oscilloscope.
The three series share one chassis — Siglent gives the same 317.2 × 236.0 × 149.0 mm for all of them — so one kit fits every model, from the 100 MHz SDS1102X HD to the 1 GHz SDS3104X HD. The oscilloscope sits in a full-width front panel with a handle at each side, and its touch screen, controls and inputs stay fully usable through the opening.
The panel is 260 mm high: plan for 6U of rack space.
What it fits
Three series, one chassis. Each card links to the series so you can check your exact model.
SDS1000X HD
SDS1102X HD · SDS1104X HD · SDS1202X HD · SDS1204X HD
100 and 200 MHz, 12-bit, two or four channels.
SDS2000X HD
SDS2104X HD · SDS2204X HD · SDS2354X HD

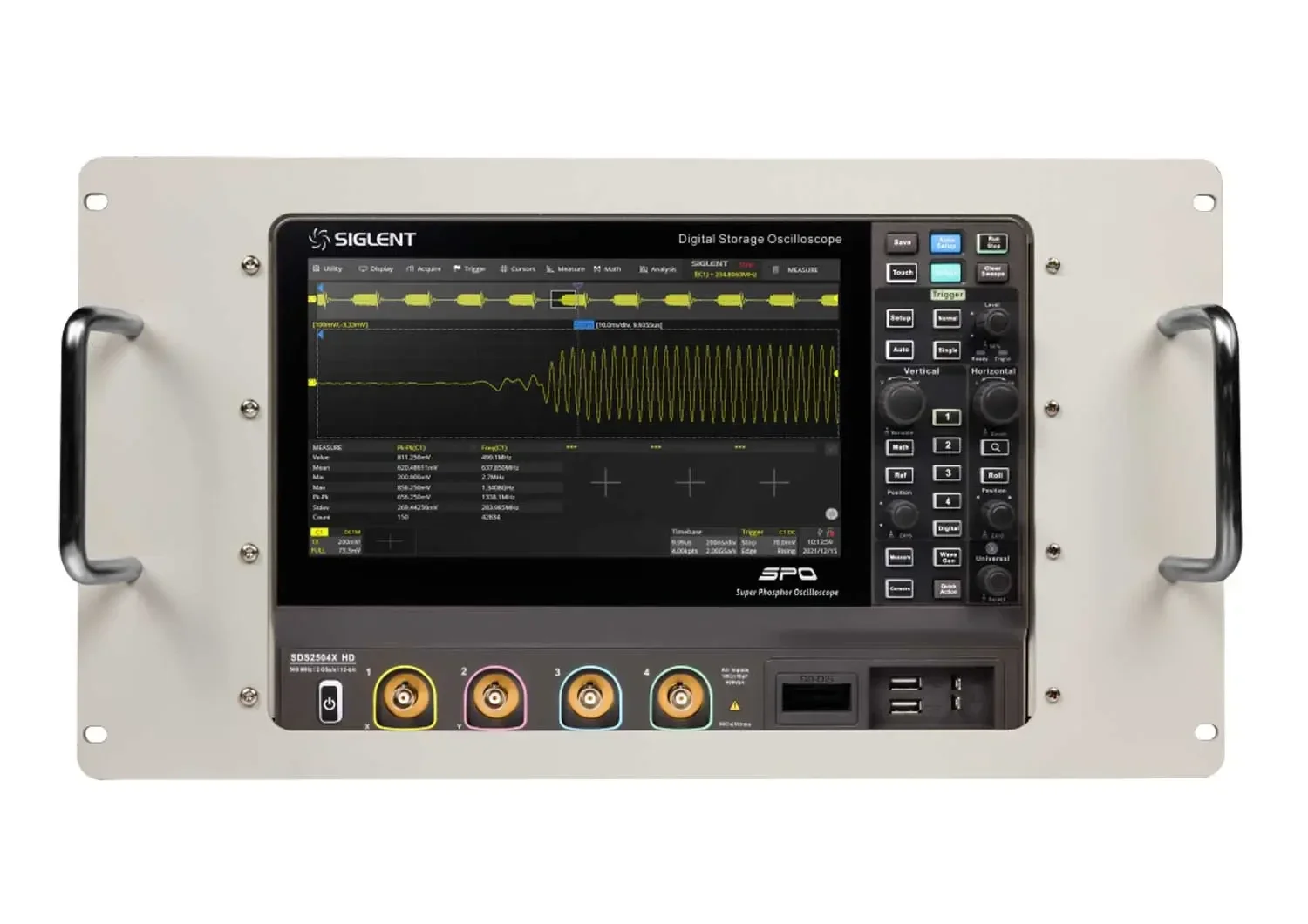

The series the kit is named after — the photo shows an SDS2504X HD.
SDS3000X HD
SDS3034X HD · SDS3054X HD · SDS3104X HD
350 MHz to 1 GHz, 4 GSa/s, same chassis.
The SDS800X HD is a smaller case and takes the 4U SDS1X-E-RMK; the SDS2000X Plus takes the SDS2000X-RMK; the SDS5000X HD is larger again. “HD” describes the 12-bit ADC, not the case — check the series before you order. The table further down lists every oscilloscope kit.
Why rack an oscilloscope
The screen at eye level
A 10.1-inch touch screen is meant to be read and touched. At 6U in a rack it sits in front of you instead of below you, which matters over a long debugging session.
Probes stop moving it
Four probes, a logic cable and a ground lead pull a 4.1 kg bench scope around more than people expect. Fixed in the rack, it stays where it was set up.
Part of the test system
In a rack the scope sits with the generator, the supply and the load it is measuring, with the cabling dressed once and LAN remote control for the whole set.
Handles for the lift
The panel carries a handle each side, so the assembly is lifted into the rails by the frame rather than by the instrument’s bezel.
Specification
| Type | 19-inch rack panel with an opening for the oscilloscope and a handle at each side |
| Rack height | 6U — the panel is 260 mm high |
| Instruments per kit | One |
| Fits | SDS1000X HD, SDS2000X HD and SDS3000X HD oscilloscopes |
| Instrument size | 317.2 × 236.0 × 149.0 mm incl. knobs and feet, 4.1 kg — identical for all three series (data sheets) |
| Front panel | Screen, controls, inputs, USB ports and power switch stay accessible through the opening |
From Siglent’s accessory page, the 2026 price list and the three series’ data sheets.
Not the right kit? All oscilloscope rack kits
The kits are split by chassis size, and the names are close. Find your oscilloscope here rather than guessing.
| Kit | Fits | Height | Price |
|---|---|---|---|
| SDS1X-E-RMK | SDS1000X-E, SDS1000X-U, SDS2000X-E, SDS800X HD | 4U | €125 |
| SDS2000X-RMK | SDS2000 / SDS2000X / SDS2000X Plus | 6U | €129 |
| SDS2000HD-RMK this kit | SDS1000X HD, SDS2000X HD, SDS3000X HD | 6U | €225 |
| SDS5000X-RMK | SDS5000X | 6U | €309 |
| SDS6000-RMK (ask us) | SDS6004A, SNA5000A, SSA5000A | 7U | €329 |
| SDS7000A-RMK (ask us) | SDS7000A | — | €557 |
Prices ex VAT. Kits marked “ask us” can be ordered but have no page on the shop yet.
Questions about the SDS2000HD-RMK
Which oscilloscopes does it fit?
The SDS1000X HD, SDS2000X HD and SDS3000X HD series. Siglent gives the same outer dimensions for all three — 317.2 × 236.0 × 149.0 mm — so one kit covers every model in them.
Does it fit the SDS800X HD?
No. The SDS800X HD is a smaller chassis and uses the SDS1X-E-RMK (4U). “HD” in the name describes the 12-bit ADC, not the case size.
And the SDS2000X Plus?
No. Despite the similar name it has a different case; it takes the SDS2000X-RMK.
How many oscilloscopes go in one kit?
One. The kit is a full-width 19-inch panel with a single opening for the instrument.
How much rack height do I need?
6U. The panel itself is 260 mm high, slightly under the 266.7 mm of a full 6U, so it fits between neighbouring equipment without spacers.
Can I still use the touch screen and front connectors?
Yes. The oscilloscope’s front sits in the opening of the panel, so the screen, knobs and keys, all channel inputs, the USB ports and the power switch remain accessible.
I have a different Siglent oscilloscope. Which kit?
The oscilloscope kits are split by chassis size. The table above lists them all; if the one you need has no page on the shop yet, ask us and we will quote it.
