Siglent SDG6032X 350MHz Function / Arbitrary Waveform Generator
SIGLENT’s SDG6032X is a series of dual-channel function/arbitrary waveform generator with specifications that include up to 350 MHz maximum bandwidth, 2.4 GSa/s sampling rate and 16-bit vertical resolution.
Up-to 500 MHz Sine Wave
Our highest frequency generator. Novel design delivers higher voltages over a broad range of frequencies.

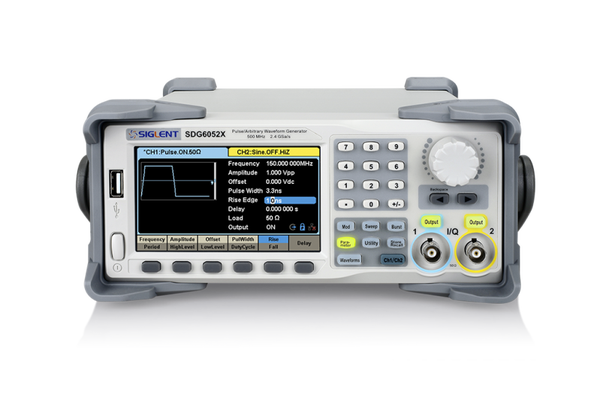

Adjustable Pulse Width
The pulse width can be fine-tuned to the minimum of 3.3 ns with an adjustment step as small as 100 ps, at any frequency.
- Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst functions
- Harmonics Generator function
- Waveform Combining function
- High precision Frequency Counter

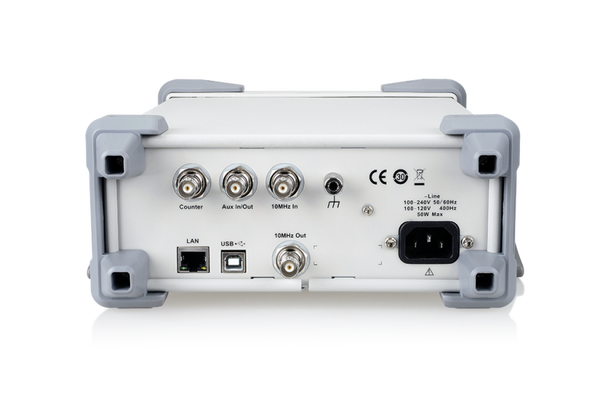

- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
- Optional interface: GPIB

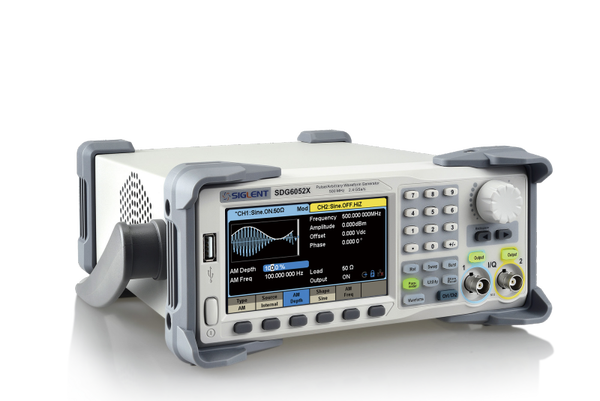

- 4.3” TFT-LCD display

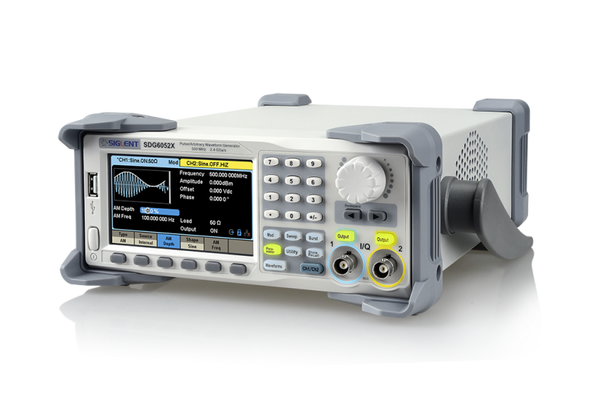

Identical dual output-channels with high performance
Capable of outputting large signals at high frequencies. dual-channels, 20 Vpp amplitude can be guaranteed at up to 10 MHz.
The waveform combining function superimposes CH1 and CH2 waveforms internally and provides the combined waveform to a user-selected output. Easily combine basic waveforms, random noise, modulation signals, sweep signals, burst signals, EasyPulse veforms and TrueArb waveforms
Innovative TrueArb Technology
Traditional DDS designs can lead to additional jitter and distortion when sourcing arbitrary waveforms. The SIGLENT TrueArb design minimizes jitter and distortion to help deliver high fidelity arbitrary waveforms.
The SDG6000X Series also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6032X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6032X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
1 x Siglent SDG6032X Arbitrary Function Generator
1 x BNC to BNC Cable
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
