Siglent SDG6022X 200MHz Function / Arbitrary Waveform Generator


SIGLENT’s SDG6022X is a series of dual-channel function/arbitrary waveform generator with specifications that include up to 200 MHz maximum bandwidth, 2.4 GSa/s sampling rate and 16-bit vertical resolution.

Up-to 500 MHz Sine Wave

Our highest frequency generator. Novel design delivers higher voltages over a  broad range of frequencies.


Adjustable Pulse Width

The pulse width can be fine-tuned to the minimum of 3.3 ns with an adjustment step as small as 100 ps, at any frequency.

Key Features:

  • Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst functions
  • Harmonics Generator function
  • Waveform Combining function
  • High precision Frequency Counter

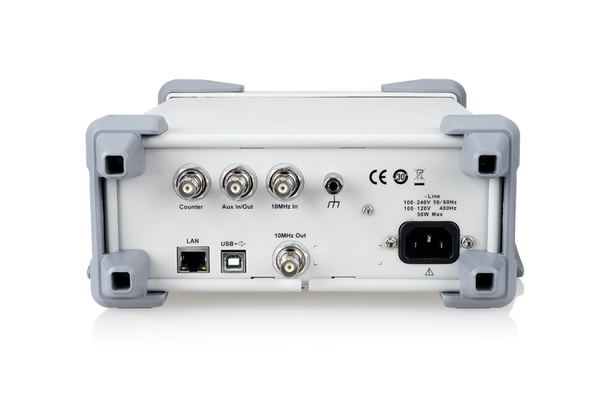

  • Standard interfaces: USB Host, USB Device (USBTMC), LAN  (VXI-11)
  • Optional interface: GPIB
  • 4.3” TFT-LCD display

Identical dual output-channels with high performance

Capable of outputting large signals at high frequencies. dual-channels, 20 Vpp amplitude can be guaranteed at up to 10 MHz.

Waveform Combining
The waveform combining function superimposes CH1 and CH2 waveforms internally and provides the combined waveform to a user-selected output. Easily combine basic waveforms, random noise, modulation signals, sweep signals, burst signals, EasyPulse  veforms and TrueArb waveforms

Innovative TrueArb Technology

Traditional DDS designs can lead to additional jitter and distortion when sourcing arbitrary waveforms. The SIGLENT TrueArb design minimizes jitter and distortion to help deliver high fidelity arbitrary waveforms.

The SDG6000X Series also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6022X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6022X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Accessoires Included:

1 x Siglent SDG6022X Arbitrary Function Generator
1 x BNC to BNC Cable
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

SDG6000X User Manual
PDF – 2,9 MB 1714 downloads
SDG6000X Series Data Sheet
PDF – 2,3 MB 1820 downloads
SDG Programming Guide
PDF – 3,3 MB 1097 downloads
SDG6000X Service Manual
PDF – 3,5 MB 959 downloads
