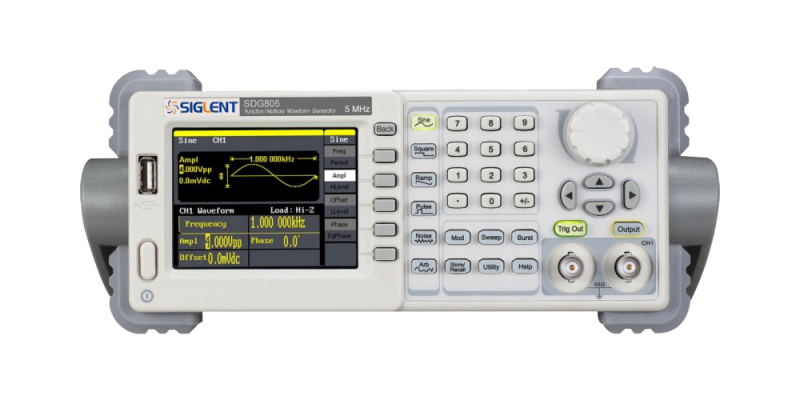

Siglent SDG830 30MHz Function / Arbitrary Waveform Generator
SIGLENT’s SDG830 is a professional single-channel function and arbitrary waveform generator featuring 30 MHz maximum bandwidth, a 125 MSa/s sampling rate and true 14-bit vertical resolution. Powered by SIGLENT’s advanced EasyPulse technology, it delivers low-jitter pulses with fast, frequency-independent rising and falling edges — even at low duty cycle settings — making it an excellent choice for precise signal generation in education, R&D laboratories, production testing and field service applications.

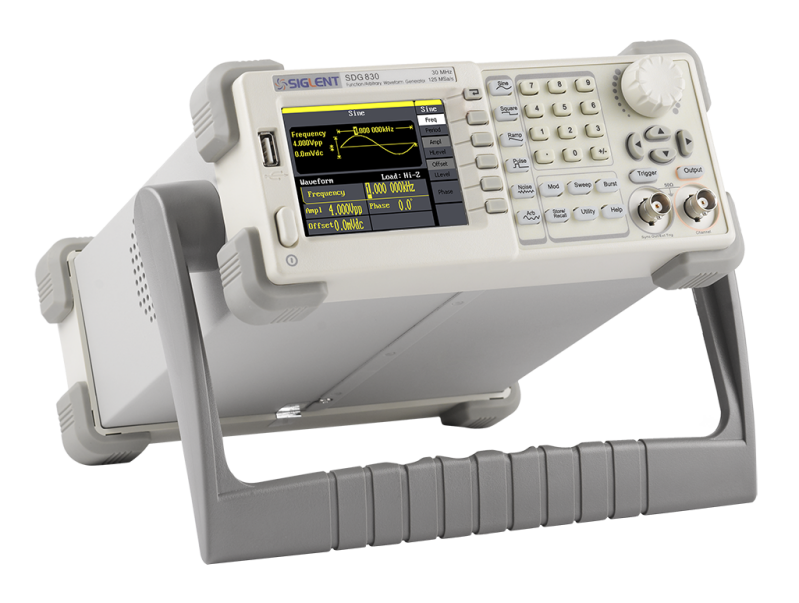

Product overview
The SDG830 is Siglent's entry-level single-channel function / arbitrary waveform generator — a dependable, affordable signal source for everyday bench, service and teaching work. Built on direct digital synthesis, it delivers stable, low-distortion sine, square, ramp, pulse, noise and arbitrary signals up to 30 MHz with a 125 MSa/s sample rate and 14-bit vertical resolution.
A complete modulation suite — AM, DSB-AM, FM, PM, FSK, ASK and PWM — together with frequency/amplitude sweep and burst lets you observe modulated waveforms directly on the 3.5-inch display, while a generous 20 Vpp output (into HiZ) drives most bench loads without an external amplifier.
The bundled EasyWave PC software lets you draw and store custom 14-bit, 16 kpts arbitrary waveforms point-by-point, with 10 non-volatile storage slots on the instrument and USB host/device connectivity for saving files and remote SCPI control. Compact, quiet and simple to learn, the SDG830 is ideally suited to electronics education, analog sensor and circuit test, and general-purpose R&D — a dependable first signal generator that earns its place on any bench.
Key highlights
Up to 30 MHz
Single-channel DDS output to 30 MHz for everyday signal generation on the bench.
125 MSa/s · 14-bit
Stable, low-distortion DDS signals with 14-bit vertical resolution.
20 Vpp output
A large 20 Vpp amplitude (HiZ) drives most bench loads directly.
Full modulation suite
AM, DSB-AM, FM, PM, FSK, ASK and PWM, plus sweep and burst.
46 built-in arbs
46 arbitrary waveforms plus 16 kpts custom-waveform editing via EasyWave.
Education-ready
Compact 3.5-inch TFT-LCD, on-screen help and USB — perfect for teaching labs.
Core capabilities
DDS waveform generation
Direct digital synthesis at 125 MSa/s with 14-bit resolution produces stable, pure, low-distortion sine, square, ramp, pulse and Gaussian-noise signals, plus 46 built-in arbitrary waveforms (including DC).
Complete modulation, sweep & burst
AM, DSB-AM, FM, PM, FSK, ASK and PWM modulation — observable directly on screen — plus linear/log sweep (1 ms–500 s) and count/infinite/gated burst with internal, external or manual triggering.
Arbitrary editing with EasyWave
Create custom 14-bit, 16 kpts waveforms with the bundled EasyWave PC software — nine standard shapes plus manual, point-to-point and free-point drawing — and store up to 10 in non-volatile memory.
Friendly, compact design
A 3.5-inch TFT-LCD with on-screen help, built-in storage and USB host/device makes the SDG800 quick to learn — ideal for analog sensors, circuit and IC test, and research & training.
Fine control of pulse edges
Beyond a fixed square wave, the SDG830 generates true pulse signals with an independently adjustable rising and falling edge time, so you can tailor the pulse shape to your device under test. The measurements below compare the pulse edge and the available edge-adjustment range on a 1 kHz pulse signal.

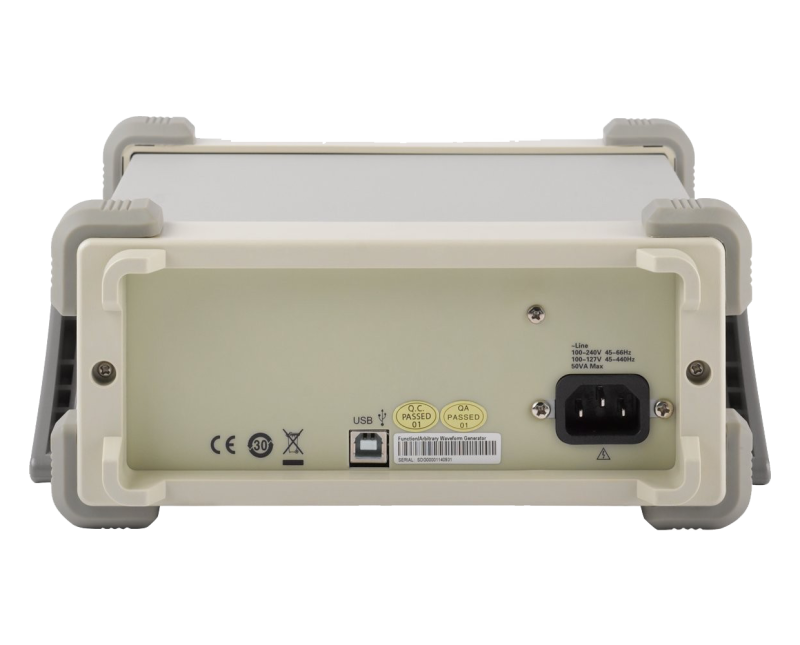

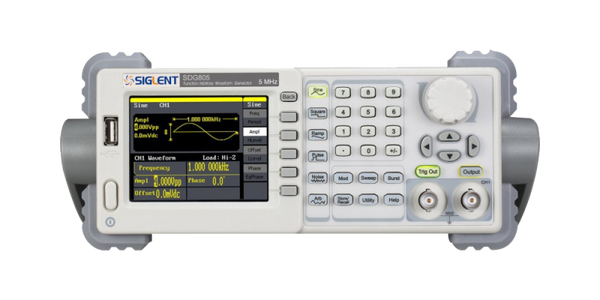

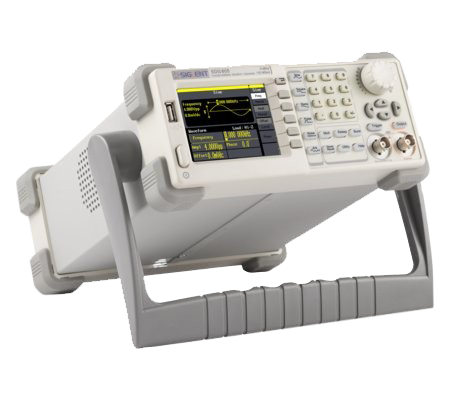

Front & rear panel
A clear 3.5-inch TFT-LCD, rotary knob and numeric keypad up front; simple, standard connectivity for output, PC control and storage.
Connectivity
- Main signal output — BNC, 50 Ω
- Aux / sync output — BNC (trigger & sync)
- USB Host (front) — save / recall to a USB stick
- USB Device (rear, USBTMC) — PC control & SCPI
- GPIB (IEEE-488) via the optional USB-GPIB adapter
- Universal 100–240 V AC input
Where it is used
Education & training
A reliable, easy-to-learn signal source for electronics teaching labs and student benches.
Circuit & IC test
Stimulus for analog circuits, sensors and components — sine, square, pulse and arbitrary signals.
R&D bench
Everyday waveform, modulation, sweep and burst generation for design and validation work.
Service & repair
A compact, affordable generator for field service, maintenance and production test.
In the box
Every SDG830 ships with the standard accessories below. User & programming manuals are in the Downloads section.
Region-specific mains lead (IEC C13)
USB Type-A to Type-B for PC control
Printed getting-started guide
Factory calibration certificate

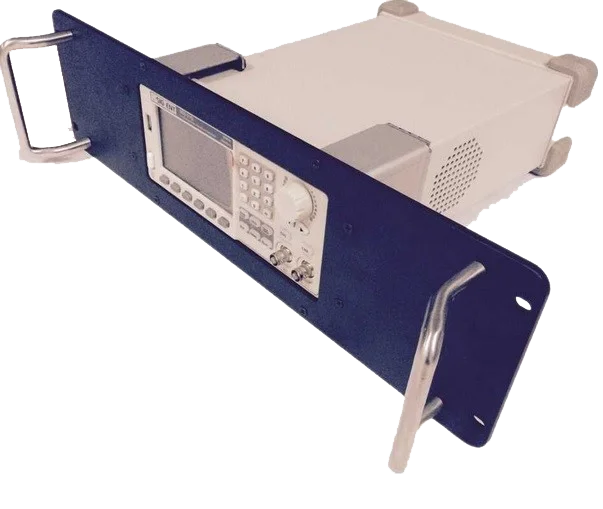

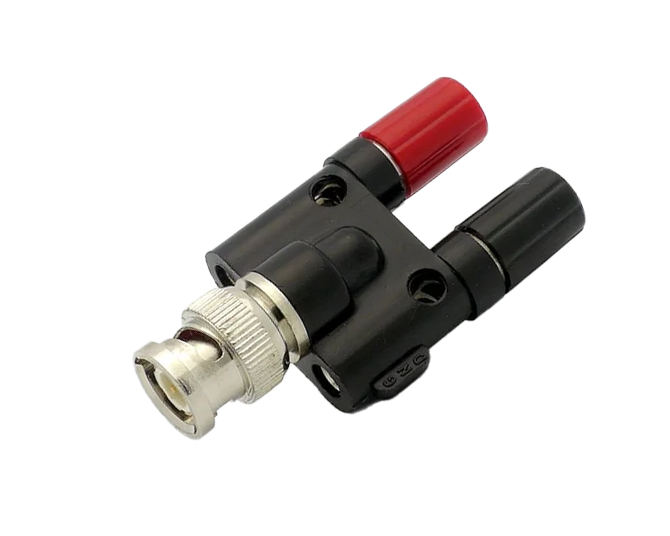

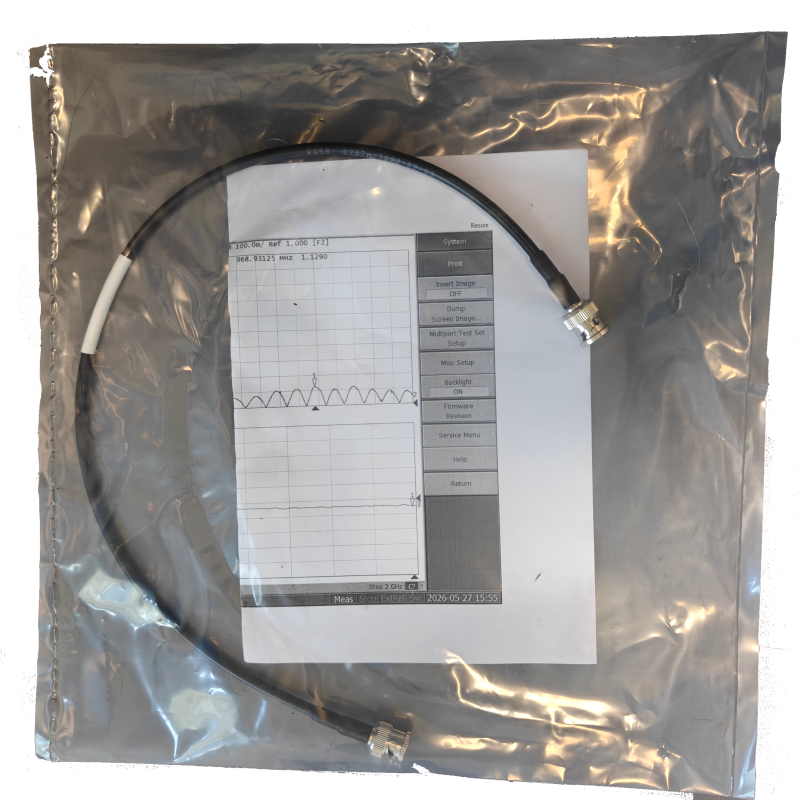

Optional accessories

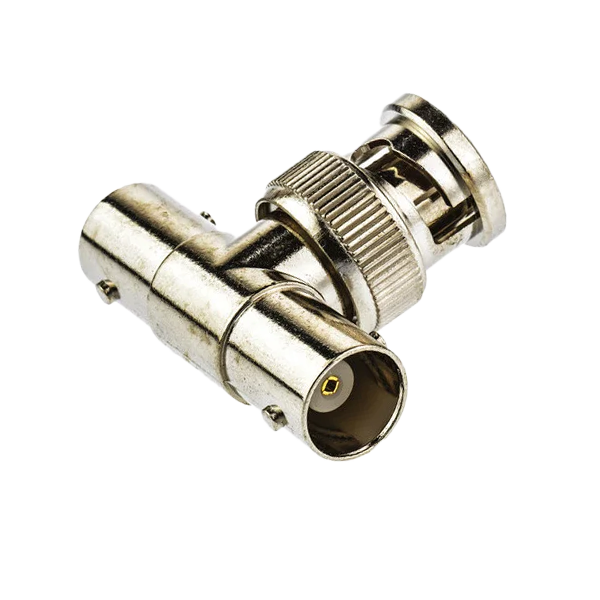

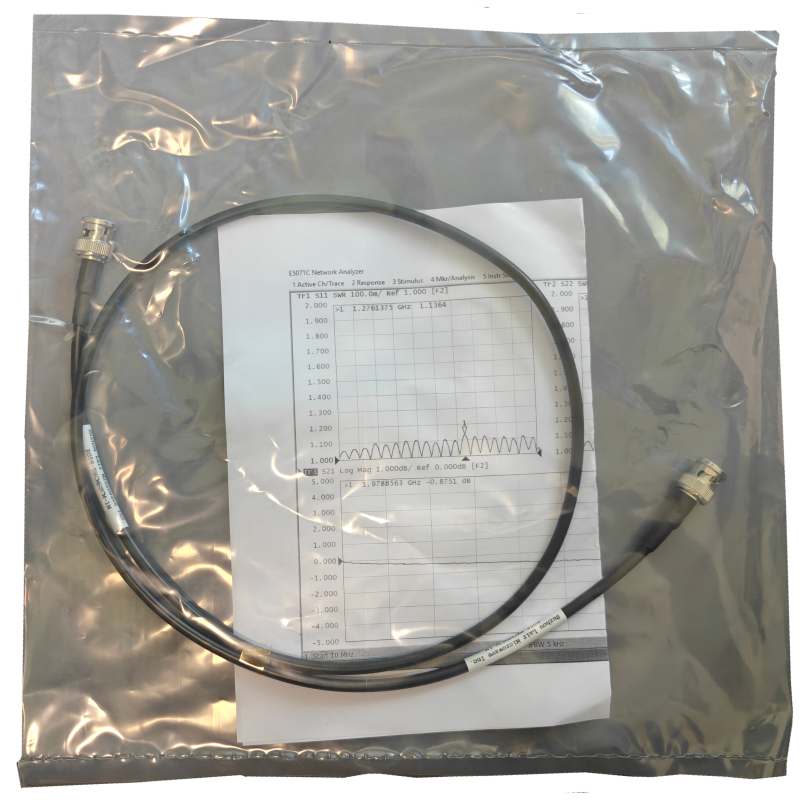

Cables, adaptors and add-ons for the SDG830 — order alongside the instrument or later.
Specifications
- Max sine frequency
- 30 MHz
- Channels
- 1
- Frequency resolution
- 1 µHz
- Square (max)
- 10 MHz
- Pulse (max)
- 5 MHz · 16 ns min width
- Max output amplitude
- 20 Vpp (HiZ, ≤10 MHz)
- Output impedance
- 50 Ω
- Sample rate
- 125 MSa/s (DDS)
- Vertical resolution
- 14-bit
- Arbitrary length
- 16 kpts
- Built-in arbitrary
- 46 waveforms (incl. DC)
- Non-volatile storage
- 10 waveforms
- Sine THD
- < 0.2% (DC–20 kHz)
- Phase noise
- −108 dBc/Hz @10 kHz
- Square rise / fall
- < 24 ns
- Square jitter
- 500 ps + 0.001% of period
- DC offset
- ±10 V (HiZ) · ±5 V (50 Ω)
- Modulation
- AM, DSB-AM, FM, PM, FSK, ASK, PWM
- AM / DSB-AM depth
- 0 – 120%
- Sweep
- Linear / log · up/down · 1 ms – 500 s
- Burst
- Count (1–50,000) / infinite / gated
- Trigger source
- Internal / external / manual
- Interfaces
- USB host · USB device (USBTMC) · GPIB opt.
- Remote control
- SCPI over USB
- Display
- 3.5-inch TFT-LCD · 320×240
- Power
- 100–240 V · < 30 W
- Dimensions (W×H×D)
- 229 × 105 × 281 mm
- Weight
- 2.6 kg
Amplitude figures are into a HiZ load (halved into 50 Ω) and reduce above 10 MHz. Specifications are guidance only — the official Siglent datasheet is the definitive reference.
