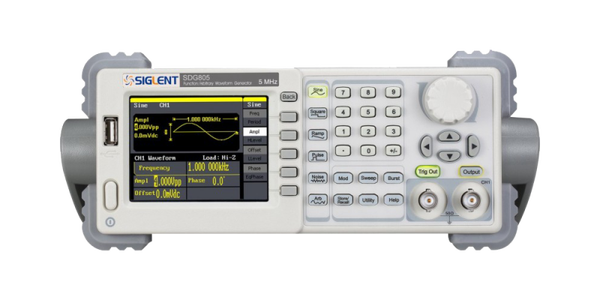

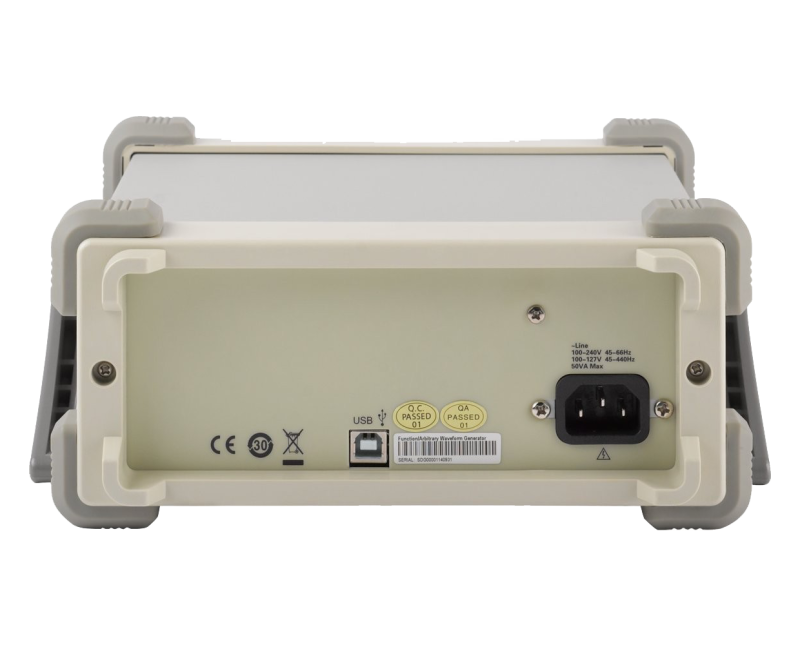

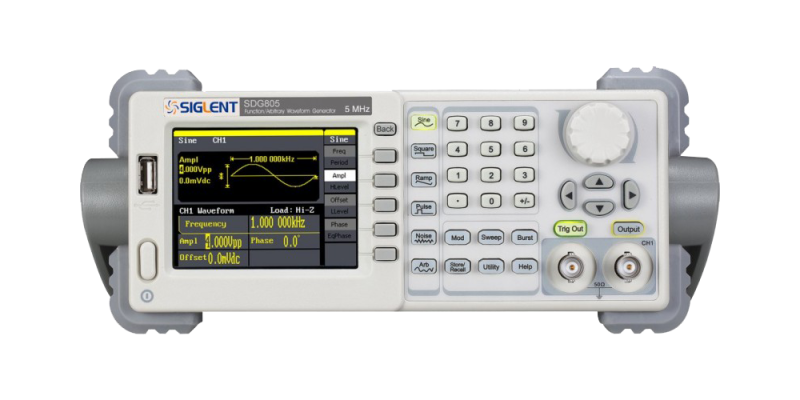

Siglent SDG810 10MHz Function / Arbitrary Waveform Generator

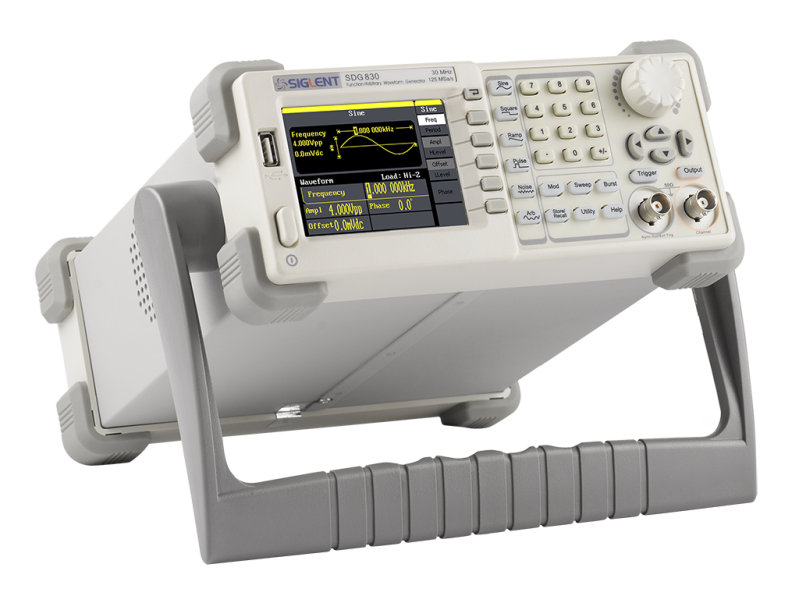

SIGLENT’s SDG830 is a single-channel function/arbitrary waveform generator delivering 30 MHz maximum bandwidth, 125 MSa/s sampling rate and 14-bit vertical resolution.

The SDG830 is powered by SIGLENT’s EasyPulse technology, which produces low-jitter, fast rising and falling edges that are not affected by frequency — even at low duty cycle settings. This gives users a much wider range of usable pulse widths and transition times than conventional DDS designs.

With 5 standard waveforms, 46 built-in arbitrary waveforms, comprehensive modulation capabilities, and included EasyWave PC software, the SDG830 offers excellent value for education, R&D labs, production test, and field service applications that need clean, versatile stimulus signals without the cost of higher-end generators.

The Siglent SDG810 is powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings. This results in a much more versatile generator than other similar DDS designs.

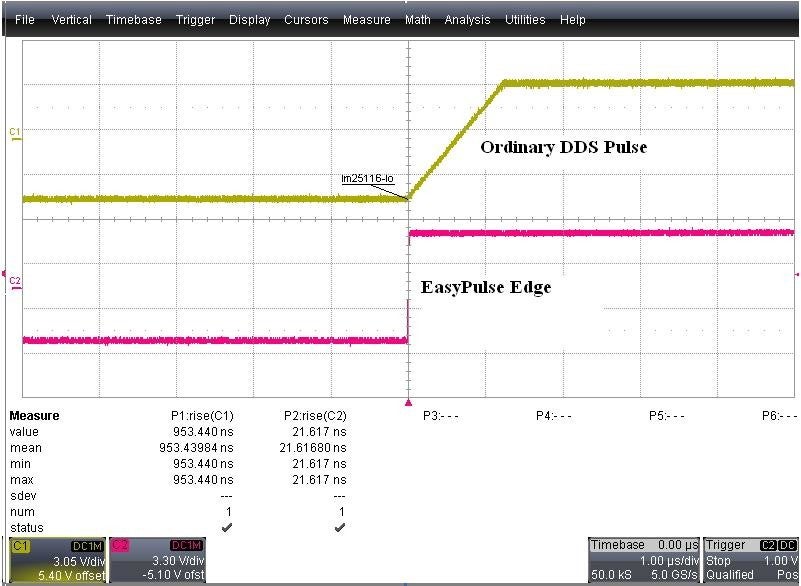

Comparison of edge under 1KHz pulse signal

As shown in the figure, under 1KHz frequency, EasyPulse can keep quick rising/falling edge (20ns) while the edge of ordinary DDS is very slow.

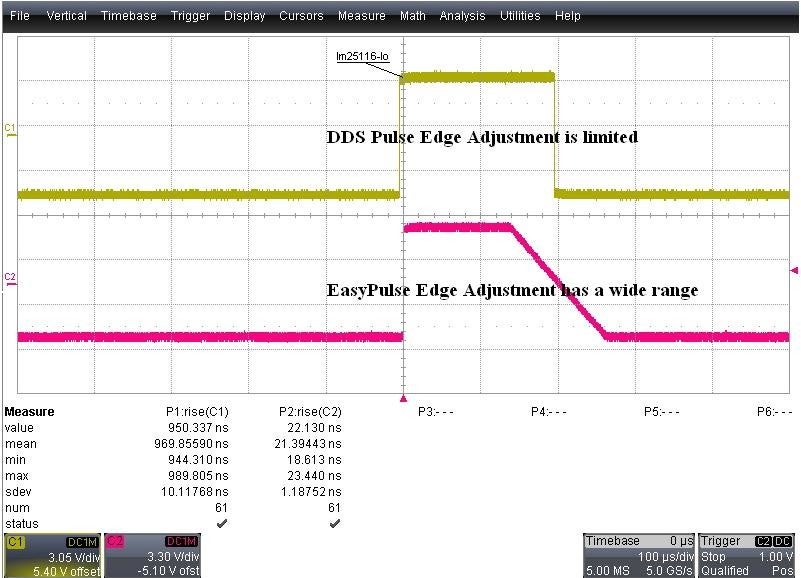

Comparison of edge adjusting range under 1KHz pulse signal

EasyPulse edge adjustment has a wide range, while ordinary DDS pulse edge adjustment is limited.

Key Advantages:

EasyPulse Technology

Fast, consistent edges with low jitter across the entire frequency range. Far superior pulse performance compared with standard DDS generators.

46 Built-in Arbitrary Waveforms

Plus 5 standard waveforms (Sine, Square, Ramp, Pulse, Noise) and 10 user-defined arbitrary waveforms stored in non-volatile memory.

Full Modulation Suite

AM, DSB-AM, FM, PM, FSK, ASK, PWM plus linear and logarithmic sweep and burst modes for advanced signal simulation.

EasyWave PC Software

Powerful arbitrary waveform creation and editing tool with mathematical functions, import capabilities, and direct instrument control.

Seamless Scope Integration

Works directly with SIGLENT digital storage oscilloscopes for easy capture, editing, and replay of real-world signals.

USB Host + Device + U-Disk

Standard interfaces for waveform transfer, instrument control, and convenient storage on USB flash drives.

Specifications:

Model	SDG810 (SDG800 Series)
Channels	1 (single channel output)
Sine frequency range	1 µHz – 10 MHz
Square frequency range	1 µHz – 10 MHz
Pulse frequency range	1 µHz – 5 MHz (EasyPulse technology)
Ramp frequency range	1 µHz – 300 kHz
Arbitrary waveform frequency	1 µHz – 5 MHz (typical)
Sample rate	125 MSa/s
Vertical resolution	14 bits
Arbitrary waveform length	Up to 16 kpts (see datasheet)
Built-in arbitrary waveforms	46 (including DC) + 5 standard waveforms
User arbitrary storage	10 non-volatile locations
Modulation	AM, DSB-AM, FM, PM, FSK, ASK, PWM
Sweep	Linear and logarithmic
Burst	N-cycle, infinite, gated
Output impedance	50 Ω (typical)
Amplitude range	1 mVpp – 20 Vpp (high Z); see datasheet for 50 Ω
Interfaces	USB Host, USB Device, U-Disk support
PC software	EasyWave (included)
