Siglent F603FE 4.5 GHz SMA-Female type VNA calibration kit

€419.00

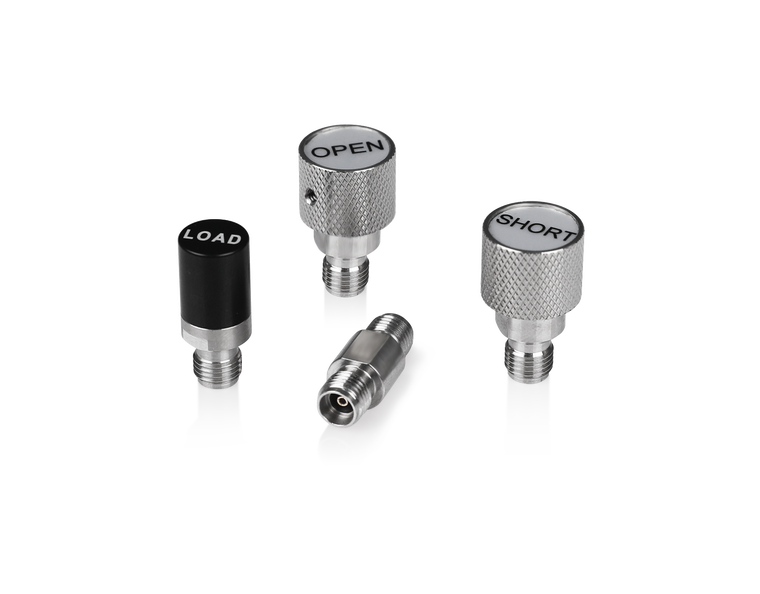

Siglent F603FE SMA-Female Mechanical Calibration Kit. This kit contains precision y 50Ω 3.5mm/SMA type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz.

Open(F), Short(F), Match(F,50), Through(F-F), 50 Ω, DC-4.5 GHz

Siglent's F603ME and F603FE performance specifications are very similar to the Keysight 85033E mechanical calibration kit and it can be used as an approximate replacement of 85033E, or use the STD of 85033E in network analyzers.

Model Type Connector Specification
F603FE Open SMA(Female) DC – 4.5 GHz, Phase Deviation* ≤ ± 1.0°
Short SMA(Female) DC – 4.5 GHz, Phase Deviation ≤ ± 1.0°
Load SMA(Female) DC – 4.5 GHz, SWR ≤ 1.04 (Return Loss ≥ -34 dB)
Through SMA(Female) - SMA(Female) DC – 9 GHz, SWR ≤ 1.035 (Return Loss ≥ -35 dB), Insert Loss ≤ 0.2 dB, Delay= 56.6 ps

Specifications :

Impendence 50 Ω
Power 1 W
Interfaces Standard IEC 60169-16
Durability > 2000
Torque 0.9 Nm
Spanner 8 mm
Temperature -15 ℃ ~ + 35 ℃
Mechanical Calibration Kit Datasheet
PDF – 487,3 KB 556 downloads
