Siglent F603ME 4.5 GHz SMA-Male type VNA calibration kit

€419.00

Siglent F603ME 4.5 GHz SMA-Male type VNA calibration kit

€419.00

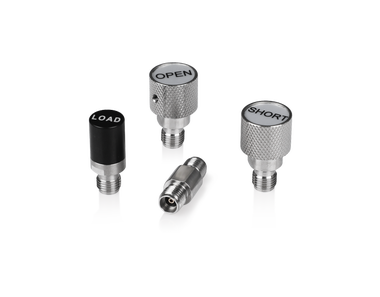

Siglent F603ME SMA-Male Mechanical Calibration Kit. This kit contains precision 50 Ω, phase-matched, type-SMA standards

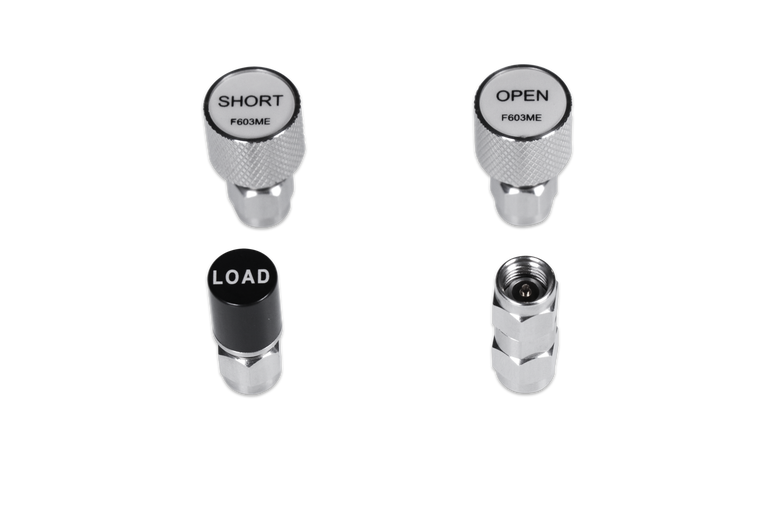

Open(M), Short(M), Match(M,50), Through(M-M), 50 Ω, DC-4.5 GHz

Siglent's F503ME is used to calibrate Siglent vector & spectrum analyzers. Standards include a fixed 50 Ω termination, an open load, a short load, and a through adaptor. The F503ME performance specifications are very similar to the Keysight 85032B mechanical calibration kit and it can be used as a replacement of 85032B.

Type Connector Specification
Open N(Male) DC – 3.5 GHz, Phase Deviation ≤ ± 0.8°
Short N(Male) DC – 3.5 GHz, Phase Deviation ≤ ± 0.8°
Load N(Male) DC – 3.5 GHz, SWR ≤ 1.02
Through N(Female) - N(Female) DC – 18 GHz, SWR ≤ 1.20

Specifications :

Impendence 50 Ω
Power 1 W
Interfaces Standard IEC 60169-16
Durability > 2000
Torque 1.35 Nm
Spanner 19 mm
Temperature -15 ℃ ~ + 35 ℃
Mechanical Calibration Kit Datasheet
PDF – 487.3 KB 166 downloads
